Egenskaber
| Version | Plug-in connector, M12, IDC, Cat.6A / Class EA (ISO/IEC 11801 2010), IP67 plugged |
| Order No. | 1516340000 |
| Type | IE-BS-M12X-S-FH |
| GTIN (EAN) | 4050118323795 |
| Qty. | 1 Styk |

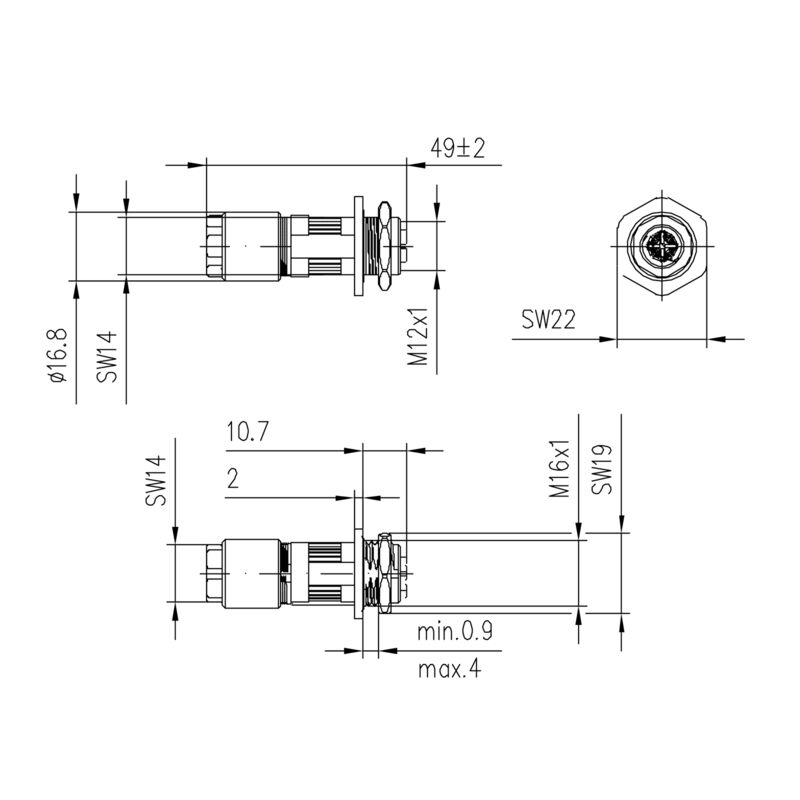

| Wall thickness, min. | 0,9 mm |
| Wall thickness, max. | 4 mm |
| Net weight | 28 g |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |

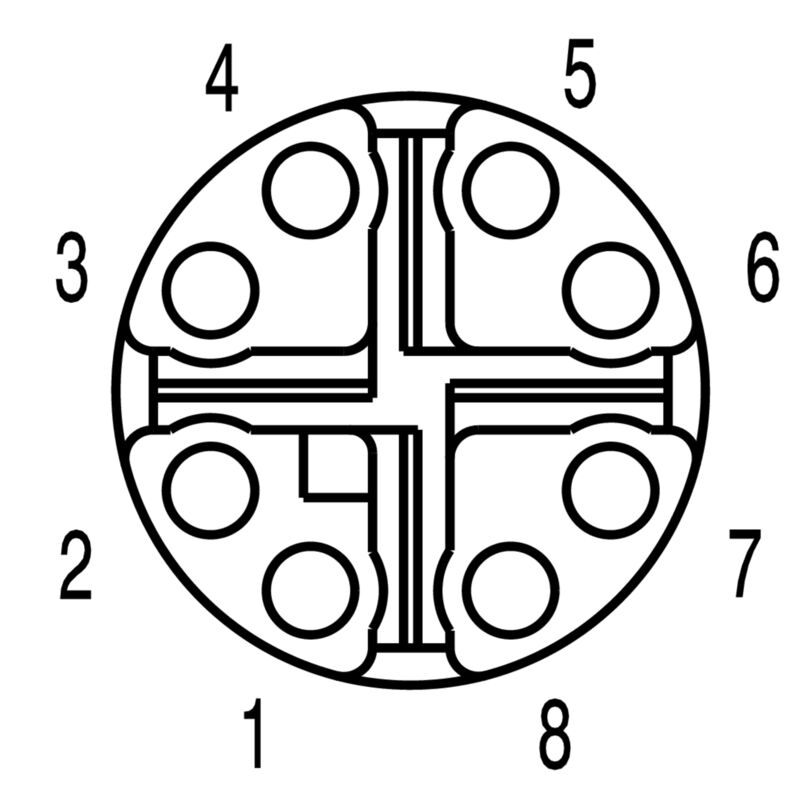

| Coding | X-coded |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast |
| Insulation strength | 100 MΩ |
| Number of poles | 8 |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 plugged |
| Rated voltage | 48 V |
| Number of poles | 8 |
| Connection 1 | M12 |
| Connection 2 | IDC |
| Housing main material | Zinc diecast |
| Insulation cross-section, max. | 1,6 mm |
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
| Connection thread | M12 |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Connection diameter, solid | 0.4...0.64 mm |
| Wire connection diameter, solid, min. | 0,4 mm |
| Conductor connection cross-section, solid (AWG) | AWG 24...AWG 22 |
| Wire connection diameter, solid, max. | 0,64 mm |
| Connection diameter, flexible | 0.48...0.76 mm |
| Wire cross-section, solid, min. (AWG) | AWG 24 |
| Conductor connection cross-section, flexible (AWG) | AWG 26...AWG 22 |
| Wire cross-section, solid, max. (AWG) | AWG 22 |
| Wire connection diameter, flexible, min. | 0,48 mm |
| Wire connection diameter, flexible, max. | 0,76 mm |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG) | AWG 22 |
| Sheath diameter, min. | 5 mm |
| Sheath diameter, max. | 9,7 mm |
| Contact holder materials | PA |
| Shielding | 360° all-round enclosure |
| Protection degree | IP67 plugged |
| Plugging cycles | ≥ 100 |
| Insulation strength | 100 MΩ |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Rated voltage | 48 V |
| Certificate no. (cULus) | E316369 |
| Connector standard | IEC 61076-2-109 |
| Connector standard | IEC 61076-2-109 |
| Approval/Certificate/Document of Conformity |
[DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418)
[CC Link IE Field M12-X](https://mdcop.weidmueller.com/mediadelivery/asset/900_81578) [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_104101) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1516340000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
