IE-C5DE4UP0100PCSXXX-E
IE-C5DE4UP0100PCSXXX-E
Wiring

IE-C5DE4UP0100PCSXXX-E

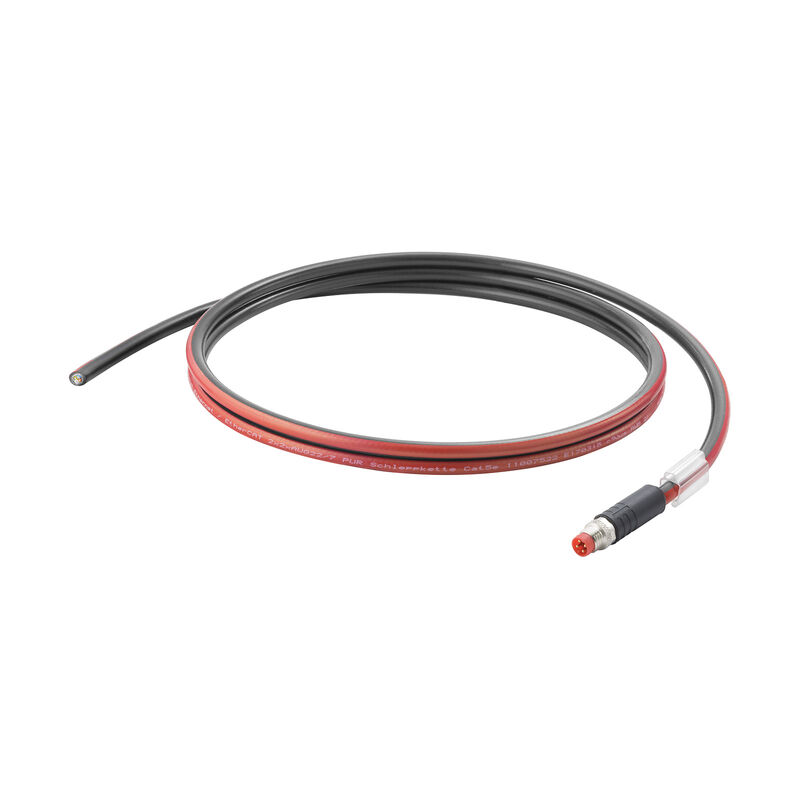

Dragline cable, M8 P-code - IP67 straight pin, Open, Cat. 5e, PUR, 10 m

Tuotteen tunnus 2717750100
Lataa tietosivu Engineering Support
Samankaltaiset tuotteet 50
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for cable Dati tecnici generali Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Dragline cable, M8 P-code - IP67 straight pin, Open, Cat. 5e, PUR, 10 m
Order No.
2717750100
Type
IE-C5DE4UP0100PCSXXX-E
GTIN (EAN)
4050118780031
Qty.
1 items

Dimensions and weights

Lunghezza
10 m
Length (inches)
393,701 inch
Net weight
900 g

Temperatures

Temperatura d'esercizio
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Technical specifications for cable

Biegezyklen
2 Mio
Colour coding
white
yellow
blue
orange
Gama de temperatura, fija
-40...80 °C
Halogen
halogen-free, according to IEC 60754
Insulation
Polyolefin
Number of wires
4
Plage de température, en mouvement
-30...70 °C
Pólusok száma
4
Resistance to oils
Conforme a la norma IEC 60811:404
Resistance to spread of flame
Oui
Sheath material
PUR
Sheathing colour
nero
Stíněný
Yes
Suitable for cable carriers
Нет
Test voltage: wire-wire-shield
1 kV DC, 1 min
1000 Veff, 50 Hz, 1 min

Dati tecnici generali

Stopień ochrony
IP67

Plug, left

Wtyk po lewej
M8, P-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
