Egenskaber
| Version | Clamping yoke, Clamping yoke, Steel |
| Order No. | 1752711001 |

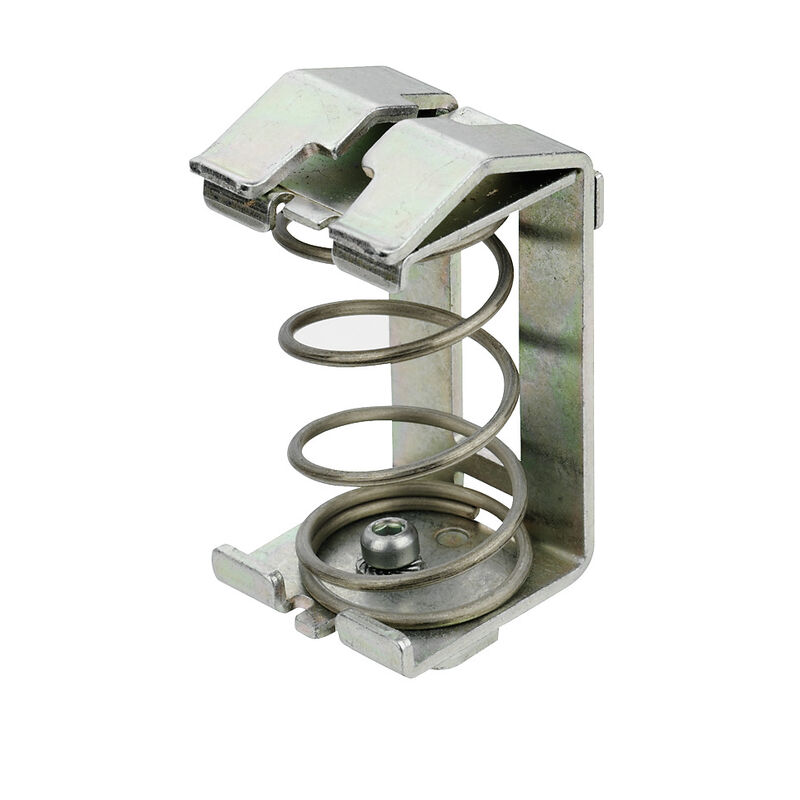

| Type | KLBUE 15-32 CPF |
| GTIN (EAN) | 4032248044443 |
| Qty. | 10 Styk |
| Depth | 64 mm |
| Depth (inches) | 2,52 inch |
| Height | 32 mm |
| Height (inches) | 1,26 inch |
| Width | 33,5 mm |
| Width (inches) | 1,319 inch |
| Net weight | 84,5 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Steel |
| Colour | grey |
| Version | For a shield connection |
| Rail | TS 27 |
| Explosion-tested version | Yes |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Cable diameter, max. | 32 mm |
| Cable diameter, min. | 15 mm |
| Pitch in mm (P) | 36 mm |
| Installation advice | Direct mounting |
| Rail | TS 27 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63373) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1752711001) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1752711001) |
| User Documentation |
[Beipackzettel_KLBUE.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35361)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002020 |
| ETIM 7.0 | EC002020 |
| ETIM 8.0 | EC002020 |
| ETIM 9.0 | EC002020 |
| ECLASS 9.0 | 27-14-11-50 |
| ECLASS 9.1 | 27-14-11-50 |
| ECLASS 10.0 | 27-14-11-50 |
| ECLASS 11.0 | 27-14-11-50 |
| ECLASS 12.0 | 27-14-11-50 |
| ECLASS 13.0 | 27-25-01-20 |
| ECLASS 14.0 | 27-25-01-20 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:1802690000Pakningsenhed:2 Meter
Terminal rail, Terminal rails, Steel, galvanized, Width: 2000 mm, Height: 27 mm, Depth: 12.5 mm, Slit width: 9.00 mm, Slit length: 9.00 mm
Cabinet InfrastructureDIN railsTS 27Steel
