Egenskaber

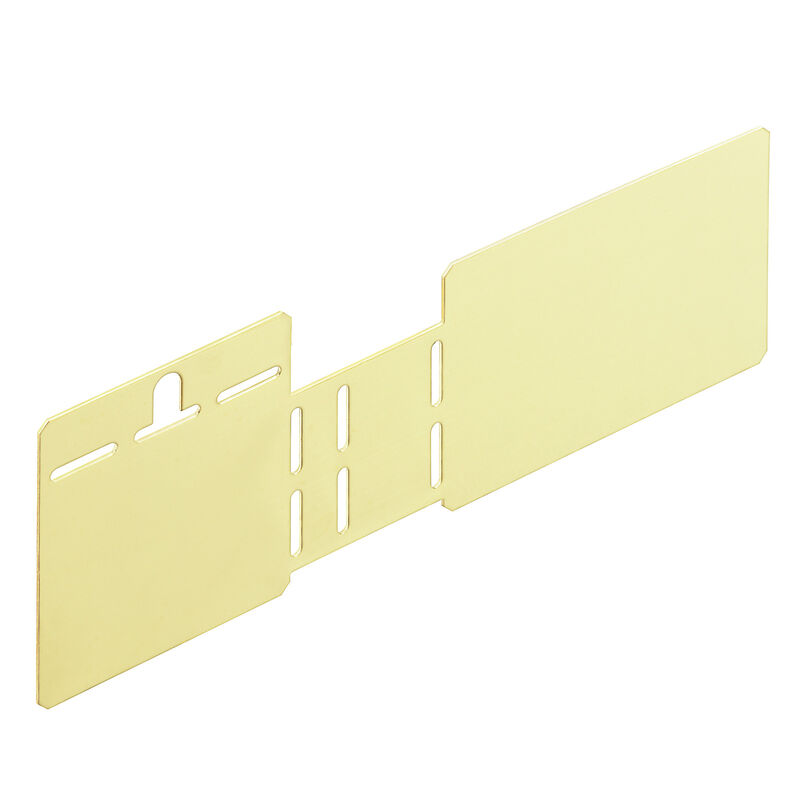

| Version | Klippon POK (polyester empty enclosure), Earthing plate, Miscellaneous, Height: 60.5 mm, Width: 239 mm, Depth: 0.8 mm, Material: Brass, polished, untreated |
| Order No. | 1390990000 |
| Type | KLIPPON COPL 161609 |
| GTIN (EAN) | 4050118191097 |
| Qty. | 5 Styk |
| Depth | 0,8 mm |
| Depth (inches) | 0,031 inch |
| Height | 60,5 mm |
| Height (inches) | 2,382 inch |
| Width | 239 mm |
| Width (inches) | 9,409 inch |
| Wall thickness, min. | 0,8 mm |
| Wall thickness, max. | 0,8 mm |
| Net weight | 18,6 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Brass |
| Material thickness | 0,8 mm |
| Surface finish |
polished
untreated |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61628) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1390990000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1390990000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002623 |
| ETIM 7.0 | EC002623 |
| ETIM 8.0 | EC002623 |
| ETIM 9.0 | EC002623 |
| ECLASS 9.0 | 27-18-28-14 |
| ECLASS 9.1 | 27-18-92-64 |
| ECLASS 10.0 | 27-18-28-14 |
| ECLASS 11.0 | 27-18-28-14 |
| ECLASS 12.0 | 27-18-28-14 |
| ECLASS 13.0 | 27-18-28-14 |
| ECLASS 14.0 | 27-18-28-14 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1305890000Pakningsenhed:1 Styk
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 160 mm, Width: 160 mm, Depth: 90 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey
-
Produkt ID:1306080000Pakningsenhed:1 Styk
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 160 mm, Width: 160 mm, Depth: 90 mm, Material: Glass fibre-reinforced polyester, untreated, polished, black
