LKSC M6X8 A2 TX30

Download data sheet Related products

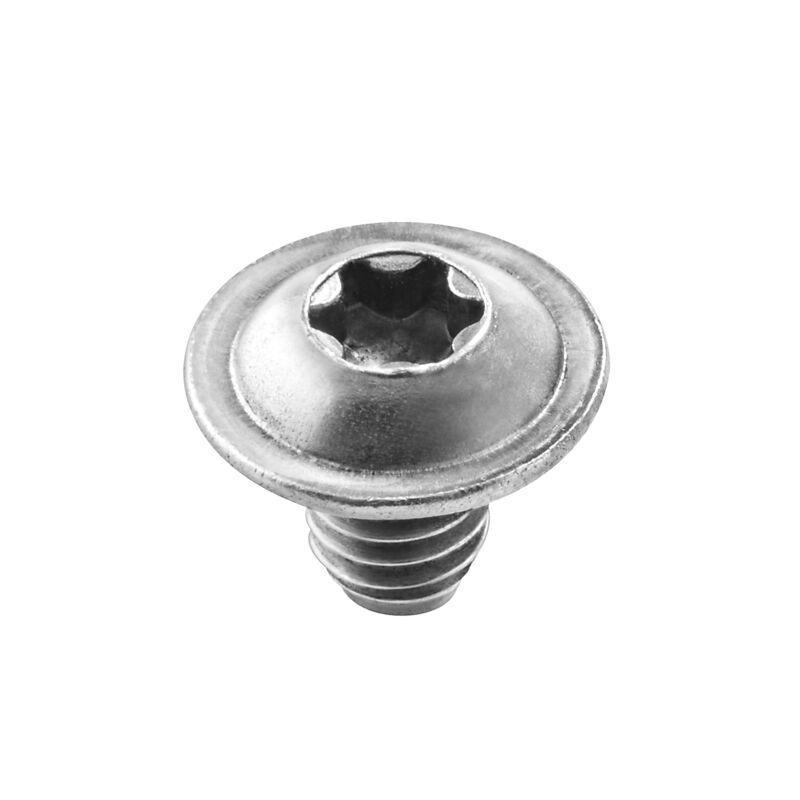

LKSC M6X8 A2 TX30

Klippon TB (Terminal Box), Set of fixings, Height: 11.3 mm, Width: 13.6 mm, Depth: 13.6 mm, Material: Stainless steel, rust-proof, untreated, silver

Item No. 2704960000

Properties

General ordering data

Version	Klippon TB (Terminal Box), Set of fixings, Height: 11.3 mm, Width: 13.6 mm, Depth: 13.6 mm, Material: Stainless steel, rust-proof, untreated, silver
Order No.	2704960000
Type	LKSC M6X8 A2 TX30
GTIN (EAN)	4050118753196
Qty.	500 items

Dimensions and weights

Depth	13.6 mm
Depth (inches)	0.535 inch
Height	11.3 mm
Height (inches)	0.445 inch
Width	13.6 mm
Width (inches)	0.535 inch
Net weight	0.06 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General information

Material	Stainless steel, rust-proof
Surface finish	untreated

General information on accessories

Material	Stainless steel, rust-proof
Surface finish	untreated

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205910)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2704960000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2704960000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002625
ETIM 7.0	EC002625
ETIM 8.0	EC002625
ETIM 9.0	EC002625
ECLASS 9.0	27-18-28-07
ECLASS 9.1	27-18-92-90
ECLASS 10.0	27-18-28-07
ECLASS 11.0	27-18-28-07
ECLASS 12.0	27-18-28-07
ECLASS 13.0	27-18-28-07
ECLASS 14.0	27-18-28-07

ROHS

Conform
