MF 10/5 MC CABUR SDR
MF 10/5 MC CABUR SDR

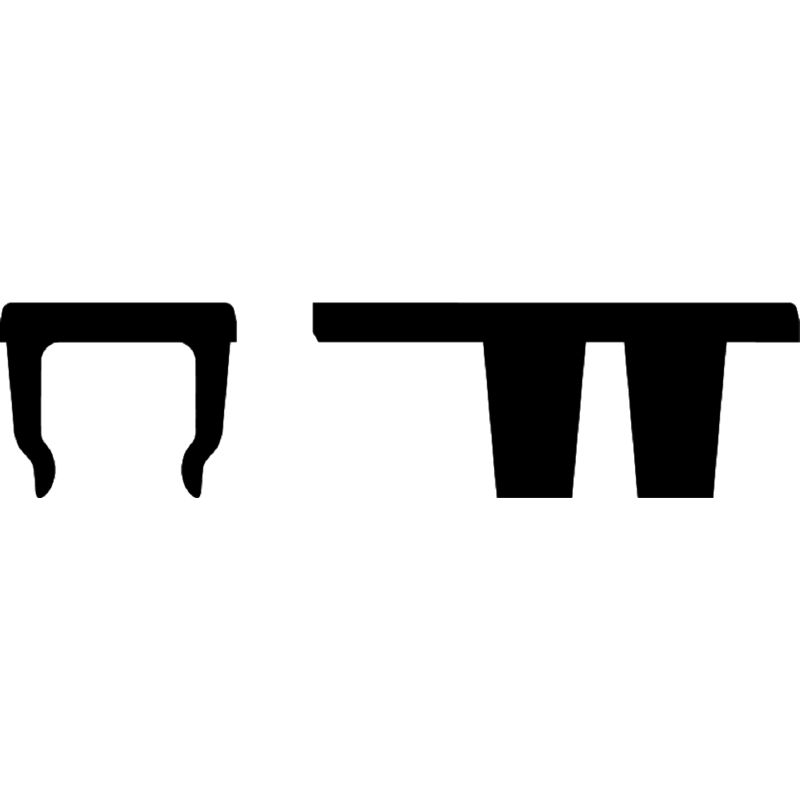

Drawing

MF 10/5 MC CABUR SDR

MultiFit, Terminal marker, 10 x 5 mm, Pitch in mm (P): 5.00 Cabur, To customer specification

Product ID 1038660000
Gegevensblad downloaden Productdownloads Engineeringondersteuning
Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connector markers Product images Classifications

Approvals

ROHS
Conform

General ordering data

버전
MultiFit, Terminal marker, 10 x 5 mm, Pitch in mm (P): 5.00 Cabur, To customer specification
Rendelési szám
1038660000
Typ
MF 10/5 MC CABUR SDR
GTIN (EAN)
4032248767915
Qty.
120 items

Dimensions and weights

Высота
10 mm
Height (inches)
0,394 inch
너비
5 mm
Width (inches)
0,197 inch
Net weight
0,13 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.002 kg CO2 eq.

General data

Antal per ark
720
Application/manufacturer
Cabur
Basic material
Polyamide 66
Colour
To customer specification
Halogen
No
Number of markers per combination
1 MultiCard = Terminal marker
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Printed characters
Requires M-Print PRO File
UL 94 flammability rating
V-2
Width
5 mm

Connector markers

Pitch in mm (P)
5 mm

Product images

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
