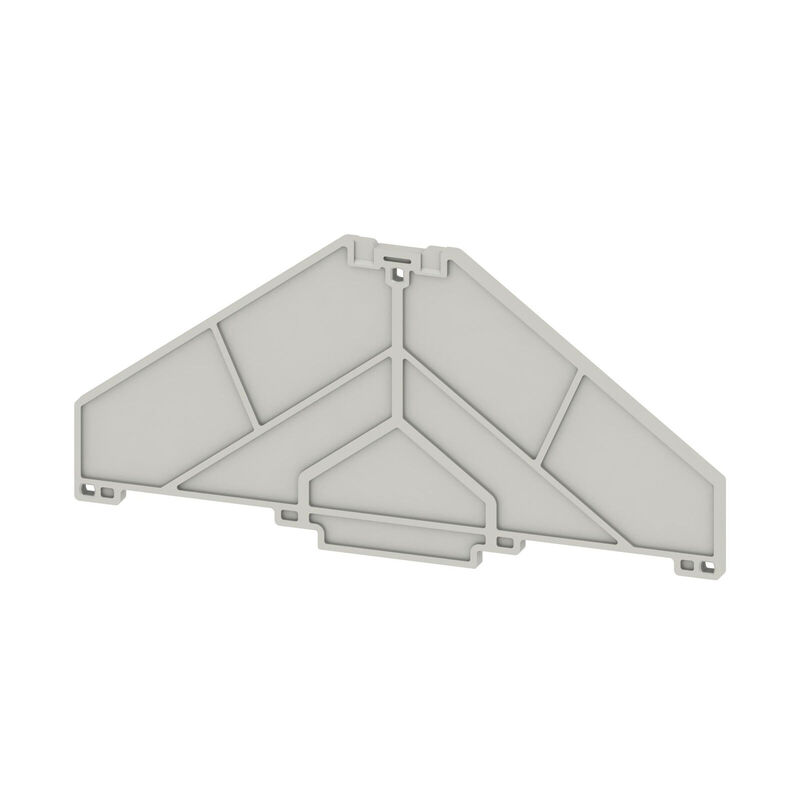

PAP PRV/PPV8 GR

P-series, End plate, grey, 3 mm

Produkt ID 1211460000

Egenskaber

General ordering data

Version	P-series, End plate, grey, 3 mm
Order No.	1211460000
Type	PAP PRV/PPV8 GR
GTIN (EAN)	4032248113446
Qty.	10 Styk

Dimensions and weights

Depth	58,5 mm
Depth (inches)	2,303 inch
Height	120 mm
Height (inches)	4,724 inch
Width	3 mm
Width (inches)	0,118 inch
Net weight	8,8 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	125 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Polycarbonate
Colour	grey
UL 94 flammability rating	V-0

System specifications

Version

End plate

Additional technical data

Installation advice	Direct mounting
Snap-on	Yes
Type of mounting	Direct mounting

General

Installation advice

Direct mounting

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224743)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1211460000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1211460000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000886
ETIM 7.0	EC000886
ETIM 8.0	EC000886
ETIM 9.0	EC000886
ECLASS 9.1	27-14-11-33
ECLASS 10.0	27-14-11-33
ECLASS 11.0	27-14-11-33
ECLASS 12.0	27-14-11-33
ECLASS 13.0	27-25-03-01
ECLASS 14.0	27-25-03-01

Approvals

ROHS

Conform
