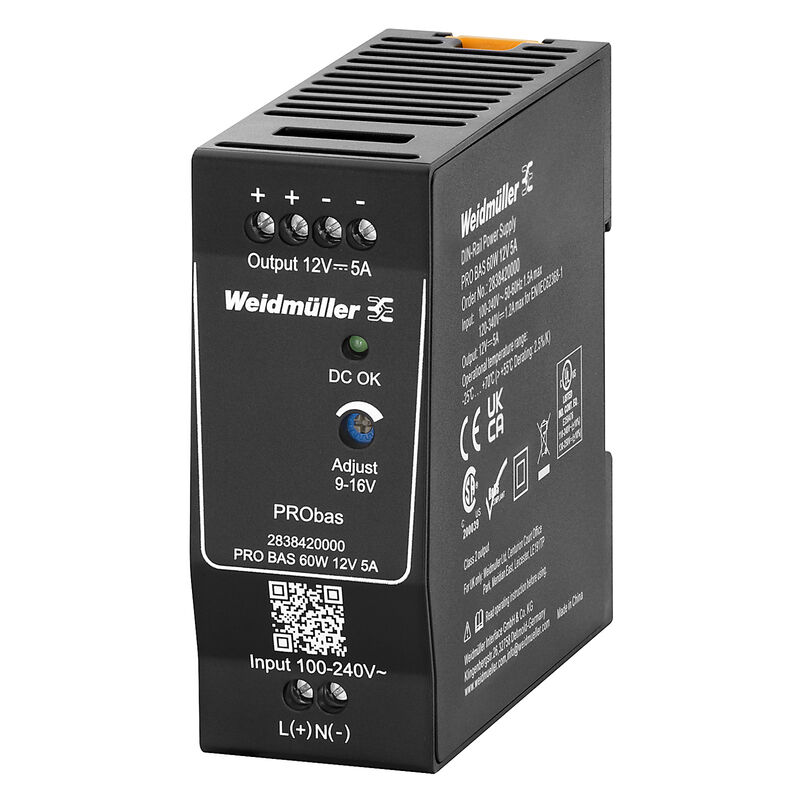

PRO BAS 60W 12V 5A
PRO BAS 60W 12V 5A
Derating curve
Temperature Derating
PRO BAS 60W 12V 5A
Derating curve
AC-Input Derating
PRO BAS 60W 12V 5A
Derating curve
DC-Input Derating

PRO BAS 60W 12V 5A

Power supply, switch-mode power supply unit, 12 V

Ürün No. 2838420000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Input Output General data EMC / shock / vibration Insulation coordination Электробезопасность (применимые нормы) Connection data (input) Connection data (output) Signalling Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319221/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E258476

General ordering data

Version
Power supply, switch-mode power supply unit, 12 V
Order No.
2838420000
Type
PRO BAS 60W 12V 5A
GTIN (EAN)
4064675444114
Qty.
1 adet

Dimensions and weights

Depth
85 mm
Depth (inches)
3,346 inch
Height
90 mm
Height (inches)
3,543 inch
Width
36 mm
Width (inches)
1,417 inch
Net weight
259 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C
Start-up
≥ -40 °C
Humidity
5…95 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Lead monoxide 1317-36-8
SCIP
d62541f7-8058-4336-b693-7303c8b40800

Input

AC input voltage range
85...264 V AC (derating at 100 V AC)
Connection system
Screw connection
Current consumption in relation to the input voltage
  • Voltage type:
    AC
  • Input voltage:
    230 V
  • Input current:
    0,62 A
  • Voltage type:
    AC
  • Input voltage:
    115 V
  • Input current:
    1,04 A
  • Voltage type:
    DC
  • Input voltage:
    120 V
  • Input current:
    0,55 A
DC input voltage range
110...370 V DC (derating at <120 V DC)
Frequency range AC
45…65 Hz
Input fuse (internal)
Yes
Inrush current
40 A @ 230 V AC, 25 °C
Nominal power consumption
66,67 VA
Rated input voltage
110...240 V AC / 120...340 V DC
Recommended back-up fuse
2 A / DI, safety fuse
6 A, Char. B, circuit breaker
2...4 A, Char. C circuit breaker
Wire connection method
Screw connection

Output

Capacitive load
5.5mF
Connection system
Screw connection
Continuous output current @ UNominal
5 A @ 55 °C
3.125 A @ 70°C
Netzausfall-Überbrückungszeit
  • Mains failure bridge-over time, min.:
    20 ms
  • Input voltage type:
    AC
  • Input voltage:
    120 V
  • Output current:
    5 A
  • Output voltage:
    12 V
  • Mains failure bridge-over time, min.:
    80 ms
  • Input voltage type:
    AC
  • Input voltage:
    230 V
  • Output current:
    5 A
  • Output voltage:
    12 V
Nominal output current for Unom
5 A @ 55 °C
Output current, max.
5 A
Output power
60 W
Output voltage, max.
16 V
Output voltage, min.
9 V
Output voltage, note
adjustable via potentiometer
Overload protection
Yes
Parallel connection option
yes, max. 3
Protección contra tensión inversa
Yes
Rated output voltage
12 V DC
Residual ripple, breaking spikes
≤ 50 mVpp przy pełnym obciążeniu wtórnym
Wire connection method
Screw connection

General data

AC failure bridging time @ Inom
> 80 ms @ 230 V AC / > 20 ms @ 115 V AC
Building height
90 mm
Building Width
36 mm
Degree of efficiency
90% @ 230 V AC
Housing version
Plastic, protective insulation
Humidity
5…95 % rel. humidity, no condensation
Mounting position, installation notice
Horizontal on TS35 mounting rail. 50 mm of clearance at top &amp; bottom for air circ. Can mount side by side with no space in between.
Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring subassemblies.
50 mm clearance at top and bottom for free air circulation, mountable side by side without clearance
On TS 35 mounting rail, 50 mm clearance above and below for free air supply.
MTBF
  • According to Standard:
    SN 29500
  • Operating time (hours), min.:
    850.000 h
  • Ambient temperature:
    40 °C
  • Input voltage:
    230 V
  • Output power:
    60 W
  • Duty cycle:
    100 %
Power factor (approx.)
0.45 @ 120 V AC
0.47 @ 230 V AC
Power loss, idling
0,5 W
Power loss, nominal load
6 W
Protection against over-heating
Ja
Protection degree
IP20
Short-circuit protection
Yes
Status indication
Green LED

EMC / shock / vibration

Interferenstålighetstest enligt
EN 61000-4-2 (ESD)
EN 61000-4-3 (RS)
IEC 61000-6-4
EN 61000-4-4 (burst)
EN 61000-4-5 (surge)
EN 61000-4-6 (conducted)
EN61000-4-8 (Fields)
EN 61000-4-11 (Dips)
IEC 61000-6-1
IEC 61000-6-2
IEC 61000-6-3
Vibration resistance IEC 60068-2-6
0.7 g according to EN 50178
Wytrzymałość udarowa IEC 60068-2-27
30 g in all directions
Zajkibocsátás az EN55032 szabványnak megfelelően
Class B

Insulation coordination

Insulation voltage, input/output
3,5 kV
Pollution severity
2
Protection class
II

Электробезопасность (применимые нормы)

Safety extra-low voltage
SELV acc. to IEC 61010-1
PELV acc. to IEC 61010-2-201
Safety transformers for switch-mode power supplies
According to EN 61558-2-16

Connection data (input)

Conductor cross-section, AWG/kcmil , max.
12 AWG
Conductor cross-section, AWG/kcmil , min.
26 AWG
Conductor cross-section, flexible , min.
0,5 mm²
Conductor cross-section, rigid , max.
6 mm²
Conductor cross-section, rigid , min.
0,5 mm²
Connection system
Screw connection
Number of terminals
2 (L,N)
Screwdriver blade
0.6 x 3.5
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
Wire connection cross section, flexible (input), max.
6 mm²

Connection data (output)

Conductor cross-section, AWG/kcmil , max.
12 AWG
Conductor cross-section, AWG/kcmil , min.
26 AWG
Conductor cross-section, flexible , max.
6 mm²
Conductor cross-section, flexible , min.
0,5 mm²
Conductor cross-section, rigid , max.
6 mm²
Conductor cross-section, rigid , min.
0,5 mm²
Connection system
Screw connection
Number of terminals
4 (++ / --)
Screwdriver blade
0.6 x 3.5
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm

Signalling

Floating contact
No
LED green
Operating voltage OK
Status indication
Green LED
Trigger voltage, LED
Uout > 0.9 x Unominal min

Classifications

ETIM 8.0
EC002540
ETIM 9.0
EC002540
ETIM 10.0
EC002540
ECLASS 14.0
27-04-07-01
ECLASS 15.0
27-04-07-01
