Egenskaber
| Version | DC/DC converter |
| Order No. | 2627650000 |

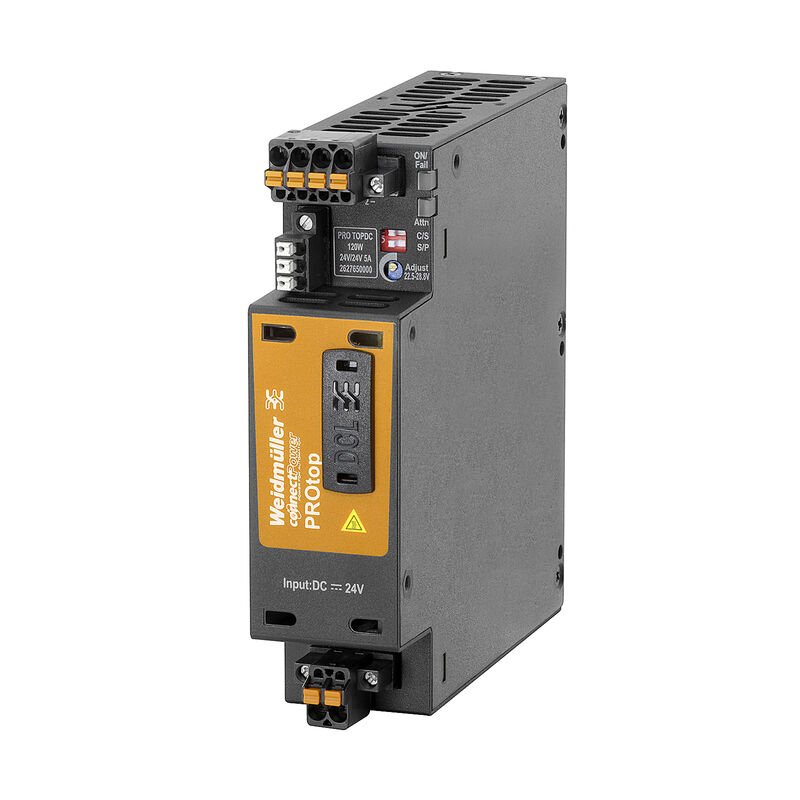

| Type | PRO TOPDC 24V/24V 5A |
| GTIN (EAN) | 4050118661576 |
| Qty. | 1 Styk |
| Depth | 125 mm |
| Depth (inches) | 4,921 inch |
| Height | 130 mm |
| Height (inches) | 5,118 inch |
| Width | 35 mm |
| Width (inches) | 1,378 inch |
| Net weight | 800 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity at operating temperature | 5...95 %, no condensation |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6d8cdf22-8230-4af8-86c8-3558c716666d |
| Connection system | PUSH IN with actuator |
| Current consumption in relation to the input voltage |
|
| DC input voltage range | 14 V...31.2 V (linear Derating from 18 V...14 V, 60% rated load @ Uin 14 V) |
| Input fuse (internal) | Yes |
| Input voltage, max. | 31,2 V |
| Input voltage, min. | 14 V |
| Inrush current | max. 5 A |
| Inrush Current Limitation | Yes |
| Nominal power consumption | 134,8 VA |
| Rated input voltage | 24 V DC |
| Capacitive load | unrestricted |
| Connection system | PUSH IN with actuator |
| DCL - peak load reserve |
|
| Mains failure bridge-over time |
|
| Nominal output current for Unom | 5 A @ 60 °C |
| Output power | 120 W |
| Output voltage, max. | 28,8 V |
| Output voltage, min. | 22,5 V |
| Output voltage, note | adjustable with potentiometer or comunication module |
| Parallel connection option | yes, max 10 |
| Protection against inverse voltage | Yes |
| Ramp-up time | ≤ 100 ms |
| Rated output voltage | 24 V DC ± 1 % |
| Residual ripple, breaking spikes | <40 mVPP@25 °C |
| Conformal coating | No |
| Degree of efficiency | 89% |
| Derating | > 60°C (2.5% / 1°C) |
| Housing version | Metal, corrosion resistant |
| MTBF |
|
| Power loss, idling | 5 W |
| Power loss, nominal load | 14,8 W |
| Protection degree | IP20 |
| Short-circuit protection | Yes |
| Start-up | ≥ -40 °C |
| Surge voltage category |
I
II III |
| Interference immunity test acc. to |
EN 55032:2015
EN 55035:2017 EN 61000-4-6:2008 IEC 61000-4-8 EN 61000-6-1:2007 EN 61000-6-2:2005 EN 61000-6-3:2007/A1:2011 EN 61000-6-4:2007/A1:2011 IEC 61000-4-2 IEC 61000-4-3 DIN EN 61000-4-4 EN 61000-4-5:2005 |
| Noise emission in accordance with EN55032 | Class B |
| Shock resistance IEC 60068-2-27 | 30 g in all directions |
| Vibration resistance IEC 60068-2-6 |
2.3 g (on DIN rail)
4 g (with direct mounting) |
| Insulation voltage input / earth | 1,41 kV |
| Insulation voltage output / earth | 0,7 kV |
| Insulation voltage, input/output | 1,41 kV |
| Protection class | III, with no ground connection, for SELV |
| Surge voltage category |
I
II III |
| Electrical machine equipment | Acc. to EN60204 |
| For use with electronic equipment | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage |
SELV acc. to IEC 60950-1
PELV according to EN 60204-1 |
| Safety transformers for switch-mode power supplies | According to EN 61558-2-17 |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 20 AWG |
| Conductor cross-section, flexible , min. | 0,5 mm² |
| Conductor cross-section, rigid , max. | 1,5 mm² |
| Conductor cross-section, rigid , min. | 0,5 mm² |
| Connection system | PUSH IN with actuator |
| Number of terminals | 2 for (+, -) |
| Screwdriver blade | 0.6 x 3.5 |
| Wire connection cross section, flexible (input), max. | 2,5 mm² |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 26 AWG |
| Conductor cross-section, flexible , max. | 2,5 mm² |
| Conductor cross-section, flexible , min. | 0,2 mm² |
| Conductor cross-section, rigid , max. | 2,5 mm² |
| Conductor cross-section, rigid , min. | 0,2 mm² |
| Connection system | PUSH IN with actuator |
| Number of terminals | 4 (++ / --) |
| Screwdriver blade | 0.6 x 3.5 |
| Wire connection cross-section, flexible (signal), max. | 1,5 mm² |
| Wire connection cross-section, flexible (signal), min. | 0,14 mm² |
| Wire connection method | PUSH IN |
| Wire cross-section, AWG/kcmil , max. | 16 |
| Wire cross-section, AWG/kcmil , min. | 26 mm² |
| Wire cross-section, solid , max. | 1,5 mm² |
| Wire cross-section, solid , min. | 0,14 mm² |
| Floating contact | Yes |
| LED green/red |
Green: Operation (failure-free)
Flashing green: advance warning I>90% Green/red flashing: output switched off (switch-off mode) Flashing red: overload/error |
| Status relay (max. load) | Output voltage OK (30 V DC / 1 A) |
| Certificate No. (CSA) | 80043367 |
| Institute (CSA) | CSA |
| Approval/Certificate/Document of Conformity |
[Lloyds Register Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_305375)
[DNV Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_305414) [RINA Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_305415) [CSA 61010-1 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306167) [307384](https://mdcop.weidmueller.com/mediadelivery/asset/900_307384) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_188324) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212143) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2627650000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2627650000) |
| User Documentation |
[IO-Link Register Description PROtop](https://mdcop.weidmueller.com/mediadelivery/asset/900_102811)
[Instruction Sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_188315) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002540 |
| ETIM 7.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| ETIM 9.0 | EC002540 |
| ECLASS 9.0 | 27-04-07-01 |
| ECLASS 9.1 | 27-04-07-01 |
| ECLASS 10.0 | 27-04-07-01 |
| ECLASS 11.0 | 27-04-07-01 |
| ECLASS 12.0 | 27-04-07-01 |
| ECLASS 13.0 | 27-04-90-02 |
| Approvals |        |
| ROHS | Conform |
