Egenskaber
| Version | Fixed cable version, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: NPN-PNP inverter, 5 m |
| Order No. | 1814990000 |
| Type | SAI-8-F 5P NPN-PNP 5M |
| GTIN (EAN) | 4032248303151 |
| Qty. | 1 Styk |
| Depth | 152 mm |
| Depth (inches) | 5,984 inch |
| Height | 25 mm |
| Height (inches) | 0,984 inch |
| Net weight | 715 g |
| Operating temperature | 0 - 50°C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Distributor outlet | Fixed cable version |
| Rated voltage, min. | 10 V |
| Rated voltage, max. | 30 V |
| Test voltage | 1 kV |
| Max. current-carrying capacity per slot | 4 A |
| Electrical isolation available | No |
| Insulation strength | 109 Ω |
| Plug-in station coding | A-coded |
| Protection degree | IP68 |
| Number of poles | 5 |
| Number of contact sockets | 8 |
| Connection thread | M12 |
| Pollution severity | 3 |
| Fire behaviour | V-0 |
| Plugging cycles | ≤ 50 |
| LED | Yes |
| LED initiator | Yes |
| LED colour for indicating operation | green |
| LED colour for I/O function | yellow |
| Housing main material | Pocan |
| Material of distributor | Plastic |
| Housing colour | grey, RAL 7032 |
| Hood sealing material | Viton |
| Screw socket | Nickel-plated CuZn |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Contact carrier material | PBT (UL 94 V0) |
| Bending cycles | 2 Mio |
| Bending radius, min., moving | 10 x cable diameter |

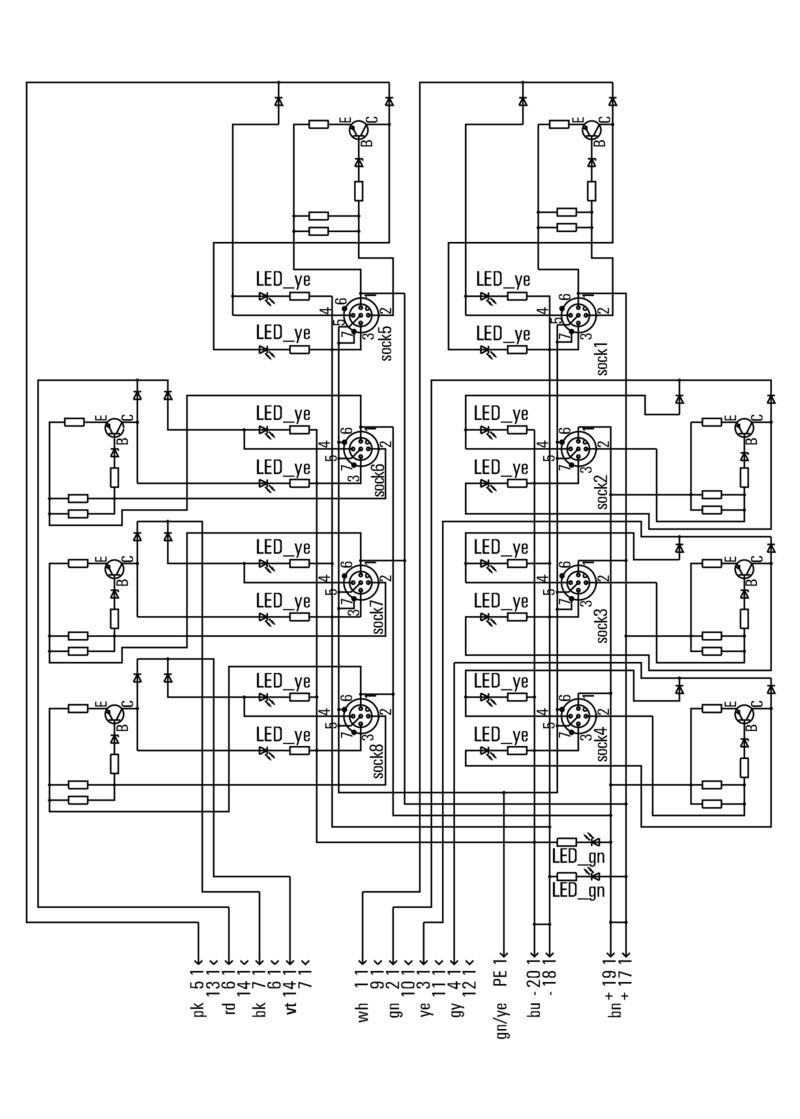

| Colour coding |
white
black Green/yellow red pink violet yellow green grey blue brown |
| Halogen | No |
| Number of poles | 5 |
| O.D. | 8,2 mm |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Wire cross section (Print/Online) | 8 x 0.34 mm² + 3 x 1.0 mm² |
| Cable length | 5 m |
| Suitable for cable carriers | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_104069) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1814990000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| ETIM 9.0 | EC002585 |
| ECLASS 9.0 | 27-44-01-08 |
| ECLASS 9.1 | 27-44-01-08 |
| ECLASS 10.0 | 27-44-01-08 |
| ECLASS 11.0 | 27-44-01-08 |
| ECLASS 12.0 | 27-44-01-08 |
| ECLASS 13.0 | 27-44-01-08 |
| ECLASS 14.0 | 27-44-01-08 |
| ROHS | Conform |
