Egenskaber
| Order No. | 1917400000 |

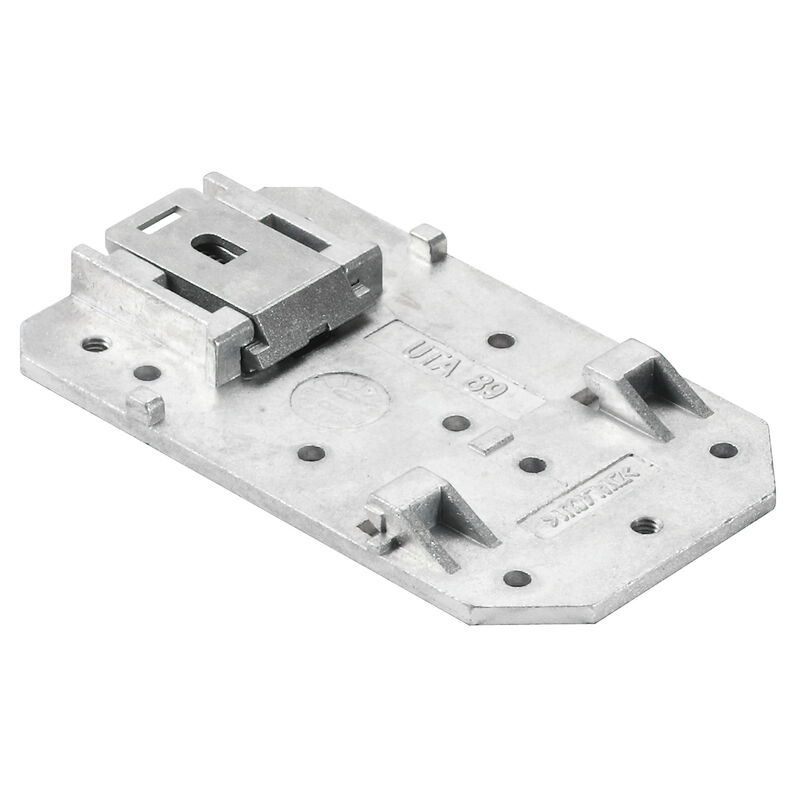

| Type | SAI-TS35 MF |
| GTIN (EAN) | 4032248551330 |
| Qty. | 1 Styk |

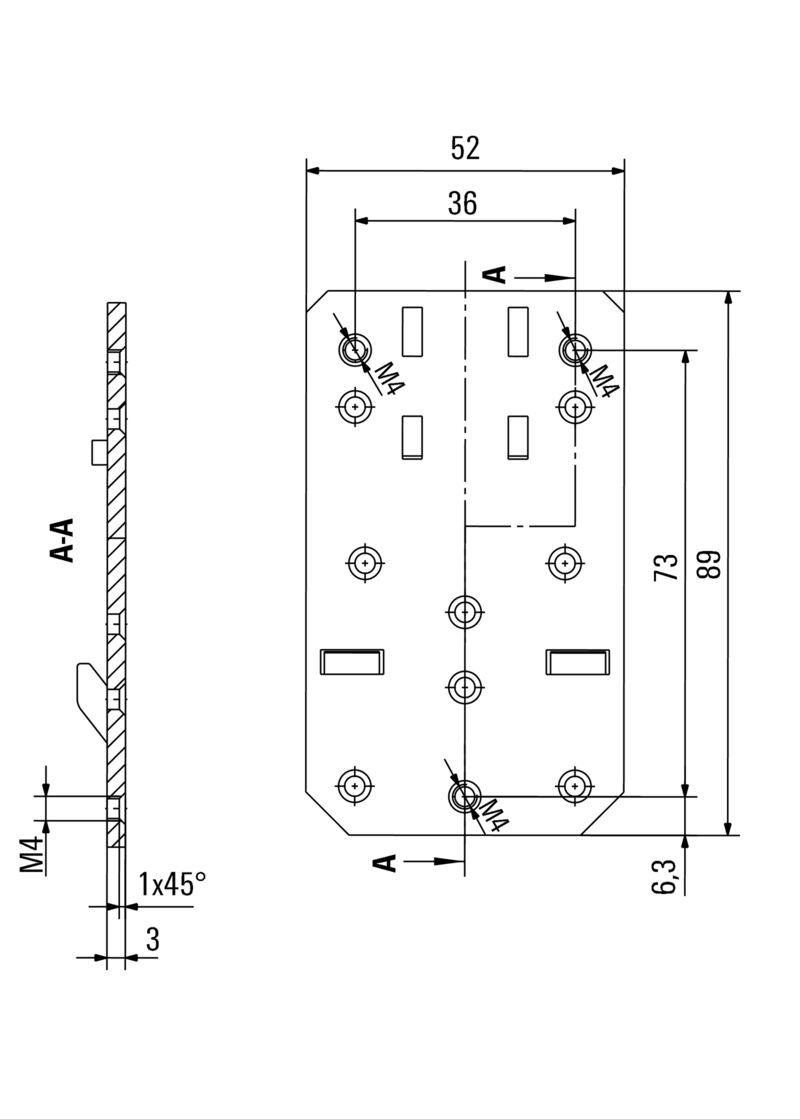

| Depth | 3 mm |
| Depth (inches) | 0,118 inch |
| Height | 89 mm |
| Height (inches) | 3,504 inch |
| Width | 52 mm |
| Width (inches) | 2,047 inch |
| Net weight | 103 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1917400000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002310 |
| ETIM 7.0 | EC002310 |
| ETIM 8.0 | EC002310 |
| ETIM 9.0 | EC002310 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-02-10 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-02-10 |
| ECLASS 12.0 | 27-44-02-10 |
| ECLASS 13.0 | 27-44-02-10 |
| ECLASS 14.0 | 27-44-02-10 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2921100000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 2-wire
-
Produkt ID:1868350000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 2-wire
-
Produkt ID:2921120000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 2-wire
-
Produkt ID:1894380000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 2-wire
-
Produkt ID:2943800000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: PNP
-
Produkt ID:2943810000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: PNP
-
Produkt ID:2902930000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: PNP
-
Produkt ID:2921130000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: PNP
-
Produkt ID:2921150000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 1:1
-
Produkt ID:2902950000Pakningsenhed:1 Styk
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 1:1
