Egenskaber

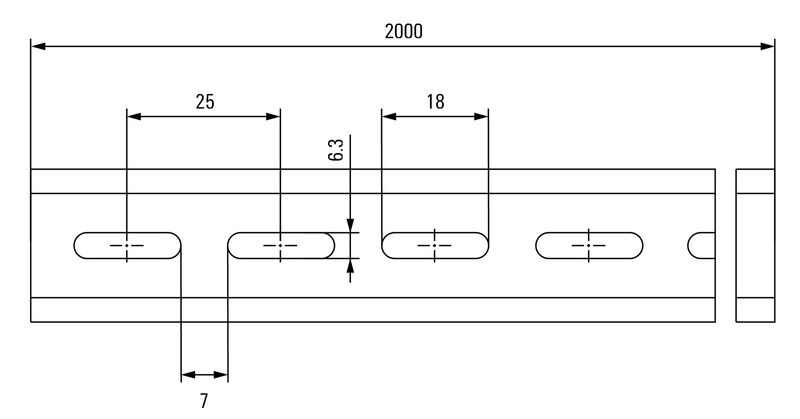

| Version | Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm, Slit width: 6.30 mm, Slit length: 18.00 mm |
| Order No. | 1805980000 |
| Type | TS 35X15/6X18 2M/ST/ZN |
| GTIN (EAN) | 4032248274536 |
| Qty. | 2 |
| Depth | 15 mm |
| Depth (inches) | 0,591 inch |
| Height | 35 mm |
| Height (inches) | 1,378 inch |
| Width | 2.000 mm |
| Width (inches) | 78,74 inch |
| Net weight | 620 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Installation advice | Direct mounting |
| Length of the terminal rail |
|
| Material | Steel |
| Pre-punched mounting rail | Yes |
| Short circuit strength corresponds to E-Cu wire | 50 mm² |
| Short-time withstand current per second according to IEC 60947-7-2 | 6 kA |
| Slit gap | 7 mm |
| Slit gap |
|
| Slit length | 18 mm |
| Slit length |
|
| Slit width | 6,3 mm |
| Slit width |
|
| Spacing of holes, centre-to-centre | 25 mm |
| Standards | In accordance with DIN EN 60715 |
| Surface finish | galvanic zinc plated and passivated |
| Thickness | 1,5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63986) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1805980000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1805980000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ROHS | Conform |
