Egenskaber

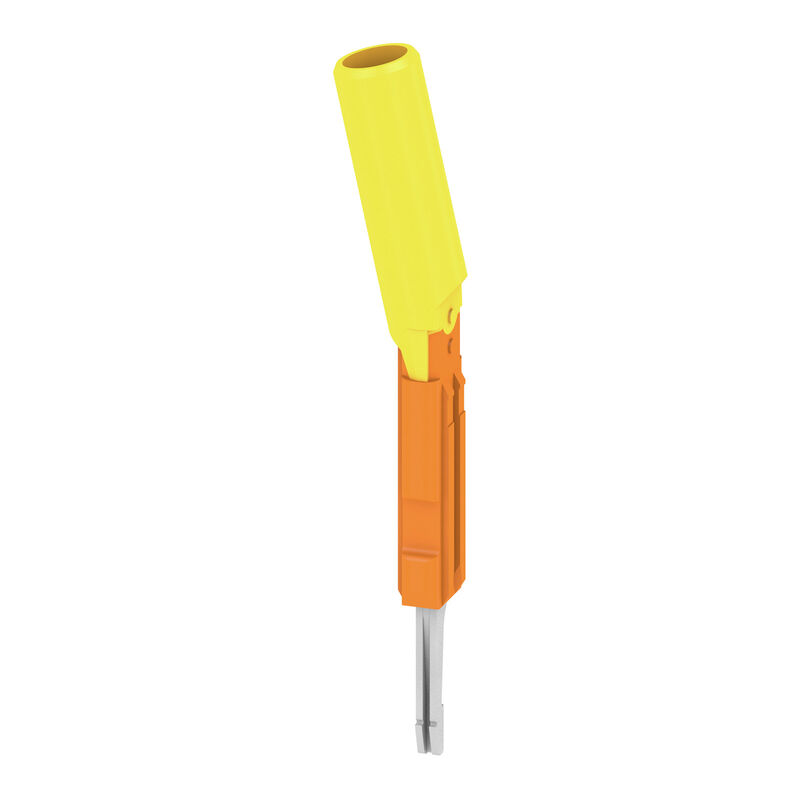

| Version | Socket (terminal), Depth: 51.3 mm |
| Order No. | 2710500000 |
| Type | TS TTB 6 YL |
| GTIN (EAN) | 4050118881066 |
| Qty. | 48 Styk |
| Depth | 51,3 mm |
| Depth (inches) | 2,02 inch |
| Height | 9,4 mm |
| Height (inches) | 0,37 inch |
| Width | 6,3 mm |
| Width (inches) | 0,248 inch |
| Net weight | 2,369 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Wemid |
| Colour | yellow |
| UL 94 flammability rating | V-0 |
| Type of fixing | Plugged |
| Type of mounting | Plug |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205953) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2710500000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2710500000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
