Egenskaber

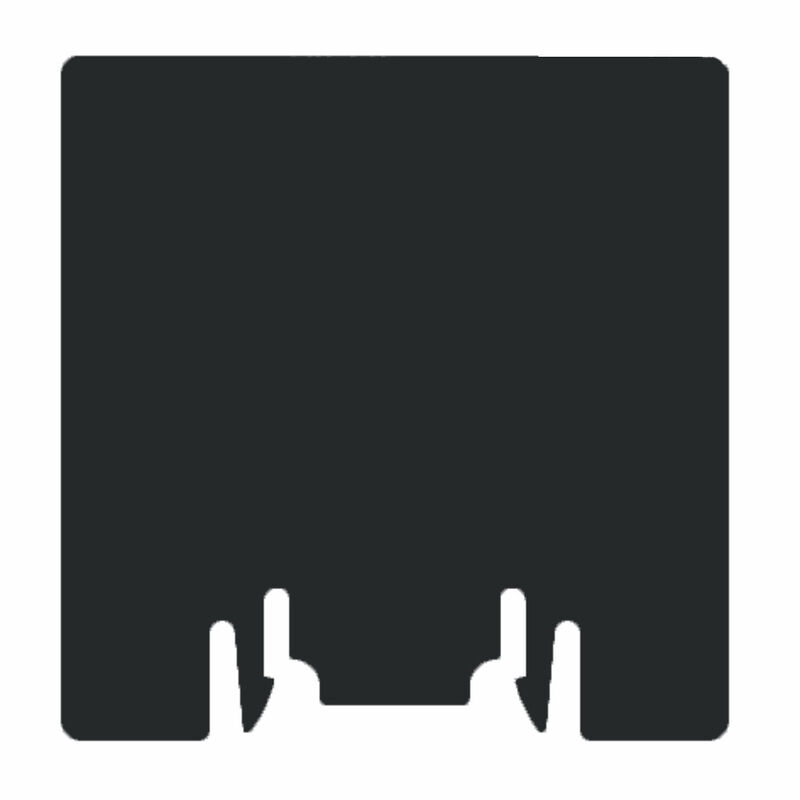

| Version | Partition plate (terminal), black, Height: 37 mm, Width: 2 mm, V-0, Wemid |
| Order No. | 1417510000 |
| Type | TW AKZ SW |
| GTIN (EAN) | 4050118220957 |
| Qty. | 50 Styk |
| Depth | 38 mm |
| Depth (inches) | 1,496 inch |
| Height | 37 mm |
| Height (inches) | 1,457 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Net weight | 3,02 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Wemid |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Version | Intermediate plate |
| Snap-on | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74506) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1417510000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1417510000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
