UR20-4AI-UI-16-DIAG

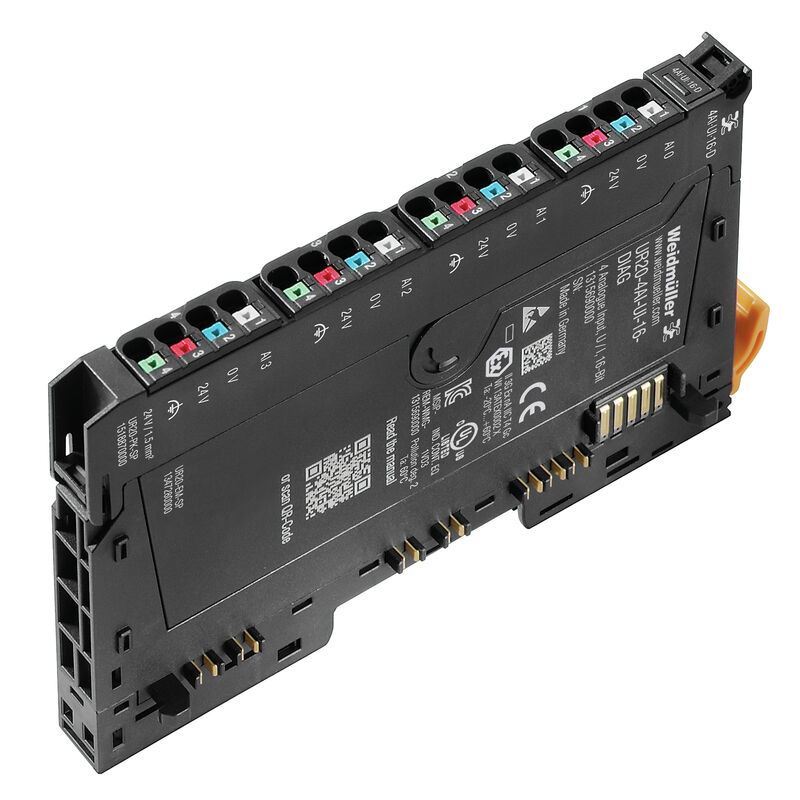

Product image
UR20-4AI-UI-16-DIAG

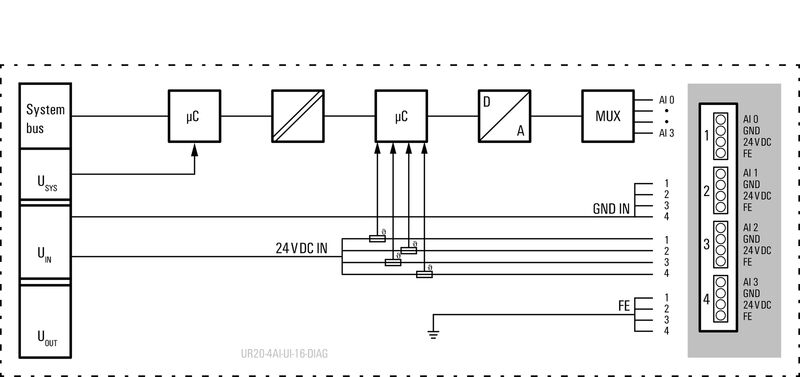

Block diagram
UR20-4AI-UI-16-DIAG

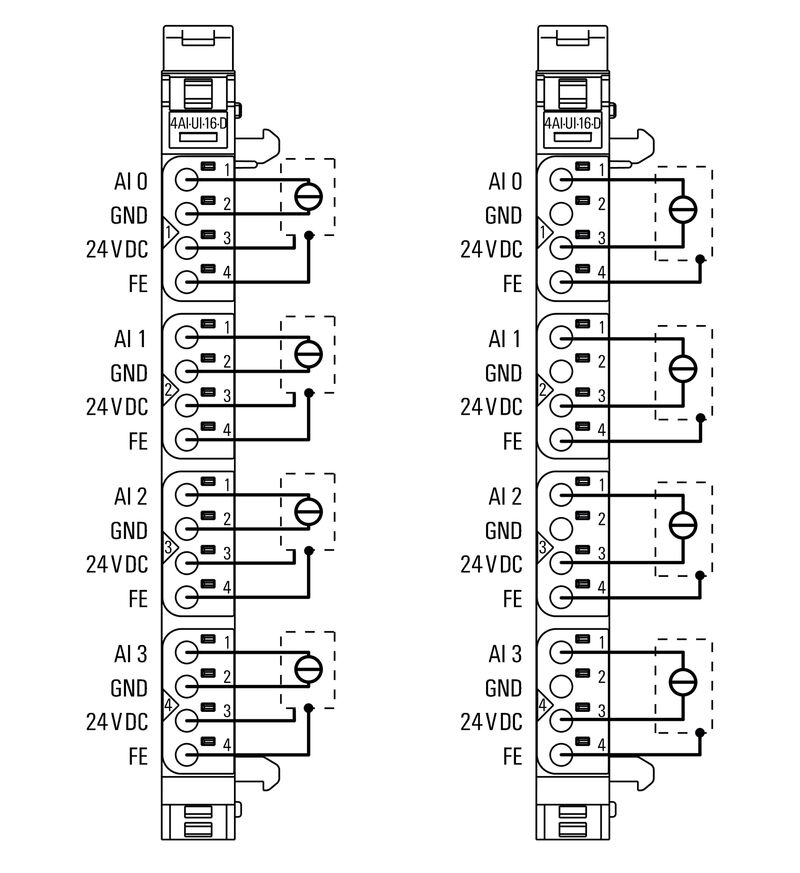

Connection diagram
UR20-4AI-UI-16-DIAG
Explanation of abbreviations

UR20-4AI-UI-16-DIAG

Remote I/O module, IP20, 4-channel, Analog signals, Input, Current/Voltage, 16 Bit

Tuotteen tunnus 1315690000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Ohjelmistotuki Tuotelataukset
Lisävarusteet 11 Varaosat 2 Yksittäiset osat 2 Samankaltaiset tuotteet 16
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance analogue inputs Connection data General data Power supply System data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d2e83968-d07b-4c8a-82b2-25cf0c69fee7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/dde5b188-d0b1-4486-8f22-54b343043814/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/343066b4-2123-4788-b278-3ff01ec50f19/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

General ordering data

Version
Remote I/O module, IP20, 4-channel, Analog signals, Input, Current/Voltage, 16 Bit
Order No.
1315690000
Type
UR20-4AI-UI-16-DIAG
GTIN (EAN)
4050118118612
Qty.
1 items

Dimensions and weights

Depth
76 mm
Depth (inches)
2,992 inch
Height
120 mm
Height (inches)
4,724 inch
Width
11,5 mm
Width (inches)
0,453 inch
Mounting dimension - height
128 mm
Net weight
89 g

Temperatures

Storage temperature
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    8,503 kg CO2 eq.

analogue inputs

Accuracy
0.1% FSR
Conversion time
1 ms
Individual channel diagnosis
Yes
Internal resistance I
41,2 Ω
Internal resistance U
100 kΩ
Module diagnosis
Yes
Number analogue inputs
4
Resolution
16 Bit
Response time / fallback time
<50 ms
Reverse polarity protection
Yes
Sensor connection
2-wire
3-wire
3-wire + FE
Sensor supply
Yes
Sensor supply
  • min.:
    0 mA
  • nominal:
    750 mA
  • max.:
    750 mA
Short-circuit-proof
Yes
Type
1. U (0…5 V, 0…10 V, 1…5 V, 2…10 V, ±10 V)
2. I (0–20 mA or 4–20 mA)

Connection data

Ledardiameter, entrådig max.
1,5 mm²
Ledardiameter, entrådig min.
0,14 mm²
Section de raccordement du conducteur, souple, max. (AWG)
AWG 16
Sezione di collegamento cavo, flessibile, min. (AWG)
AWG 26
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Вид соединения
PUSH IN
와이어 단면적, 솔리드, 최대(AWG)
AWG 16

General data

Air humidity (operation)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Humedad del aire (almacenamiento)
10% to 95%, non-condensing as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Surge voltage category
II
Test voltage
500 V
Tlak vzduchu (přeprava)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Vlhkost vzduchu (přeprava)
10% to 95%, non-condensing as per DIN EN 61131-2
Ütés
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27

Power supply

Current consumption from IIN (the respective power segment)
25 mA + sensor feed
Current consumption from Isys, typ.
8 mA
Reverse polarity protection
Yes
Supply voltage
24 V DC +20 %/ -15 %
via the system bus

System data

Diagnostic data
1 Bit
Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
IEC 61162-450
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Analogue input module
Process data
8 Byte
Transmission speed of system bus, max.
48 MBit/s

Classifications

ETIM 8.0
EC001596
ETIM 9.0
EC001596
ETIM 10.0
EC001596
ECLASS 14.0
27-24-26-01
ECLASS 15.0
27-24-26-01
