Egenskaber
| Version | , Socket x 5.3 mm, Polyester, TPU, Colour: yellow, Transparent, Conductor O.D.: 2.5 - 4 mm |
| Order No. | 2571320000 |

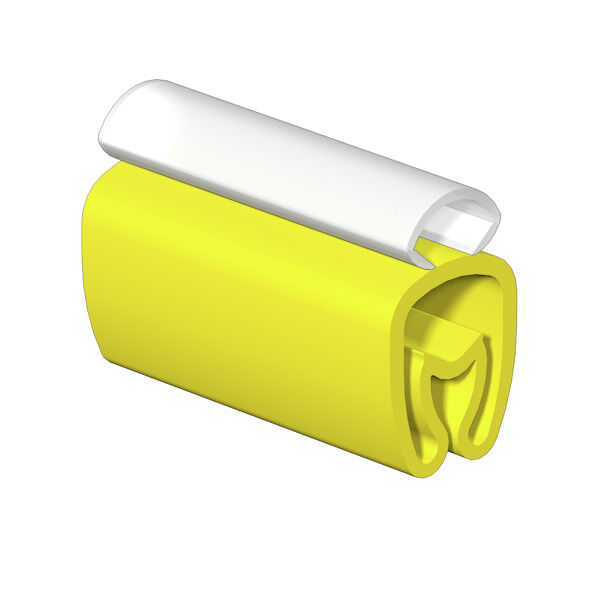

| Type | VT-TM 2/18 HF-V0 |
| GTIN (EAN) | 4050118608366 |
| Qty. | 100 Styk |
| Depth | 12 mm |
| Depth (inches) | 0,472 inch |
| Height | 18 mm |
| Height (inches) | 0,709 inch |
| Width | 5,3 mm |
| Width (inches) | 0,209 inch |
| Net weight | 0,591 g |
| Operating temperature range | -30...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour |
yellow
Transparent |
| Halogen | No |
| Material |
Polyester
TPU |
| Operating temperature range | -30...90 °C |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -30 °C |
| Printed characters | without |
| Recommended industries |
Transportation
Machinery |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Width | 5,3 mm |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 0,75 mm² |
| Conductor O.D. | 2.5 - 4 mm |
| Conductor O.D., max. | 4 mm |
| Conductor O.D., min. | 2,5 mm |
| Cross-section for connected wire | 0.75 - 2.5 mm² |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:2005450000Pakningsenhed:2000 Styk
TM-I, Insert markers, 15 x 4 mm, white
-
-
Produkt ID:2005580000Pakningsenhed:2000 Styk
TM-I, Insert markers, 15 x 4 mm, yellow
-
-
Produkt ID:1714101693Pakningsenhed:640 Styk
TM-I, Insert markers, 18 x 4 mm, blue
-
Produkt ID:1718431688Pakningsenhed:320 Styk
TM-I, Insert markers, 18 x 4 mm, green
-
Produkt ID:1718431044Pakningsenhed:320 Styk
TM-I, Insert markers, 18 x 4 mm, white
-
Produkt ID:1718431687Pakningsenhed:320 Styk
TM-I, Insert markers, 18 x 4 mm, yellow
-
Produkt ID:1718431686Pakningsenhed:320 Styk
TM-I, Insert markers, 18 x 4 mm, red
-
Produkt ID:1714101690Pakningsenhed:640 Styk
TM-I, Insert markers, 18 x 4 mm, orange
-
Produkt ID:1714101687Pakningsenhed:640 Styk
TM-I, Insert markers, 18 x 4 mm, yellow
-
Produkt ID:1714101688Pakningsenhed:640 Styk
TM-I, Insert markers, 18 x 4 mm, green
-
Produkt ID:1714101044Pakningsenhed:640 Styk
TM-I, Insert markers, 18 x 4 mm, white
-
Produkt ID:1714101686Pakningsenhed:640 Styk
TM-I, Insert markers, 18 x 4 mm, red
-
Produkt ID:1798060000Pakningsenhed:640 Styk
TM-I, Insert markers, 18 x 4 mm, grey
