Egenskaber
| Version | Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 17 A, 500 V, Number of connections: 3, Number of levels: 2, TS 32, TS 35, V-0, Wemid |
| Order No. | 2456020000 |

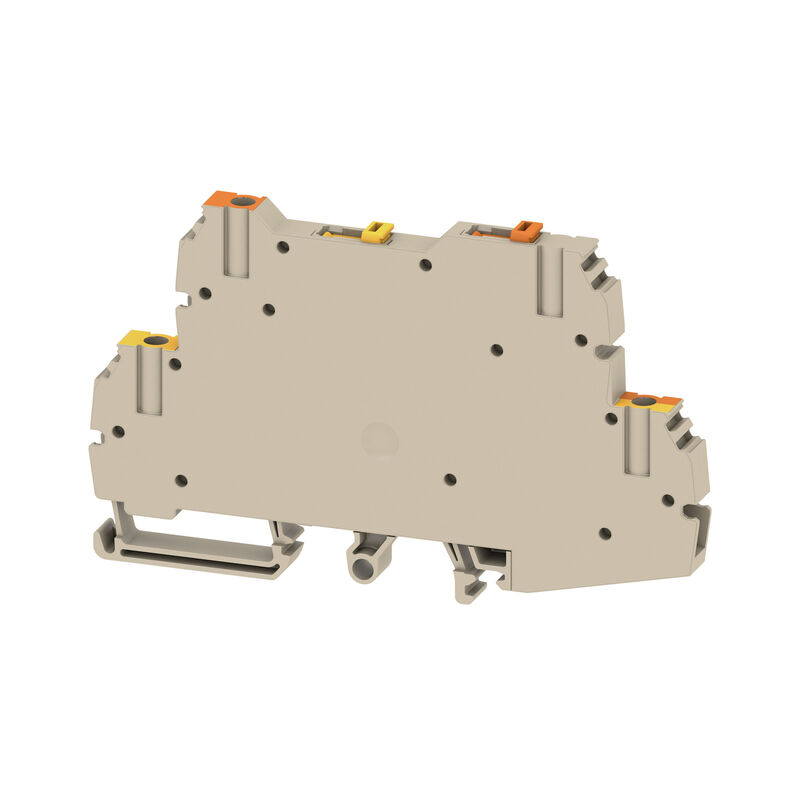

| Type | WDTR 2.5/WE |
| GTIN (EAN) | 4050118515268 |
| Qty. | 25 Styk |
| Depth | 65 mm |
| Depth (inches) | 2,559 inch |
| Height | 94 mm |
| Height (inches) | 3,701 inch |
| Width | 6,15 mm |
| Width (inches) | 0,242 inch |
| Net weight | 23,53 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c6099607-b1cd-4fc8-8f5b-8c2defa73093 |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Number of potentials | 2 |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail |
TS 32
TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Open sides | closed |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,05 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 3 |
| Stripping length | 8 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,5 Nm |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 12400-377 |
| Conductor size Factory wiring max. (CSA) | 12 AWG |
| Conductor size Factory wiring min. (CSA) | 26 AWG |
| Conductor size Field wiring max. (CSA) | 12 AWG |
| Conductor size Field wiring min. (CSA) | 26 AWG |
| Current size B (CSA) | 17 A |
| Current size D (CSA) | 10 A |
| Voltage size B (CSA) | 300 V |
| Voltage size D (CSA) | 300 V |
| Cross-disconnect | without |
| Integral test socket | No |
| Slitting | Pivoting |
| Rail |
TS 32
TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 17 A |
| Current at maximum wires | 17 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 30 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 30 AWG |
| Current size B (cURus) | 20 A |
| Current size C (cURus) | 20 A |
| Current size D (cURus) | 10 A |
| Voltage size B (cURus) | 300 V |
| Voltage size C (cURus) | 150 V |
| Voltage size D (cURus) | 300 V |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165085)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205481) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2456020000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2456020000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000902 |
| ETIM 7.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| ECLASS 9.0 | 27-14-11-26 |
| ECLASS 9.1 | 27-14-11-26 |
| ECLASS 10.0 | 27-14-11-26 |
| ECLASS 11.0 | 27-14-11-26 |
| ECLASS 12.0 | 27-14-11-26 |
| ECLASS 13.0 | 27-25-01-09 |
| ECLASS 14.0 | 27-25-01-09 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
