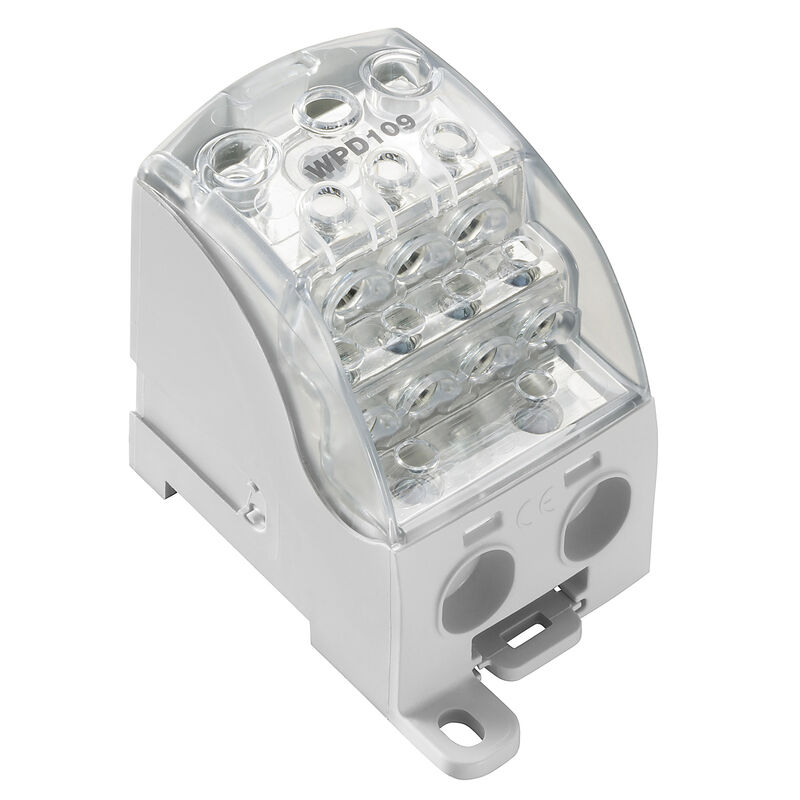

Product image
WPD 109 1X185/2X35+3X25+4X16 GY
WPD 109 1X185/2X35+3X25+4X16 GY
WPD 109 1X185/2X35+3X25+4X16 GY
WPD 109 1X185/2X35+3X25+4X16 GY
WPD 109 1X185/2X35+3X25+4X16 GY
WPD 109 1X185/2X35+3X25+4X16 GY

WPD 109 1X185/2X35+3X25+4X16 GY

Potential distributor terminal, Screw connection, Light Grey, 185 mm², 490 A, 1000 V, Number of connections: 10, Number of levels: 1

Ürün No. 1562090000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 48
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/bd70fd7c-25a7-46d9-a404-2588bf18d09f/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Potential distributor terminal, Screw connection, Light Grey, 185 mm², 490 A, 1000 V, Number of connections: 10, Number of levels: 1
Order No.
1562090000
Type
WPD 109 1X185/2X35+3X25+4X16 GY
GTIN (EAN)
4050118384895
Qty.
1 adet

Dimensions and weights

Depth
77 mm
Depth (inches)
3,031 inch
Height
95 mm
Height (inches)
3,74 inch
Width
51,1 mm
Width (inches)
2,012 inch
Net weight
454 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…85 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
9b5f0838-1f0b-4c14-9fc7-3f5e6ee75be2

Material data

Basic material
Wemid
Färgkod
Light Grey
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
CNEX16ATEX0005U
Certificate No. (IECEX)
IECEXCNEX16.0005U
Max. voltage (ATEX)
1100 V
Current (ATEX)
353 A
Wire cross section max. (ATEX)
185 mm²
Max. voltage (IECEX)
1100 V
Current (IECEX)
353 A

System specifications

Version
Screw connection
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Antal potentialer per våning
1
poziomy wewnętrznie zmostkowane
Yes
PE connection
No
Mounting rail
Mounting plate
TS 35
N-function
Yes
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Terminal rail / mounting plate
Open sides
closed
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Clamping range, max.
185 mm²
Conductor embornable
  • Connection specification:
    Screw connection
Connection direction
on side
Leiteranschlussquerschnitt AWG, min.
AWG 16
Number of connections
10
Sección del conductor, semirrígido, máx.
185 mm²
Sección del conductor, semirrígido, mín.
1,5 mm²
Sección transversal de conductor, núcleo rígido, máx.
185 mm²
Sección transversal de conductor, núcleo rígido, mín.
1,5 mm²
Type of connection
Screw connection
Type of connection 2
Screw connection
Upínací rozsah, min.
1,5 mm²
Wire connection cross section AWG, max.
kcmil 300
Wire connection cross section, finely stranded, max.
0 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
150 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
1,5 mm²

CSA rating data

Certificate number (cCSAus)
70128467

General

Installation advice
Terminal rail / mounting plate
Mounting rail
Mounting plate
TS 35
Number of poles
1
Standards
IEC 60947-7-1
UL 1059
Wire connection cross section AWG, max.
kcmil 300
Wire connection cross section AWG, min.
AWG 16

Rating data

Rated cross-section
185 mm²
Rated voltage
1.000 V
Rated AC voltage
1.000 V
Rated DC voltage
1.500 V
Nominal current
490 A
Ström med max. ledare
490 A
Standards
IEC 60947-7-1
UL 1059
Power loss in accordance with IEC 60947-7-x
12,5 W

UL rating data

Certificate No. (cURus)
E60693

Important note

Product information
The socket complies with flammability class V-2 according to UL94.

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
