WSI 6/2/LD 30-70V DC/AC

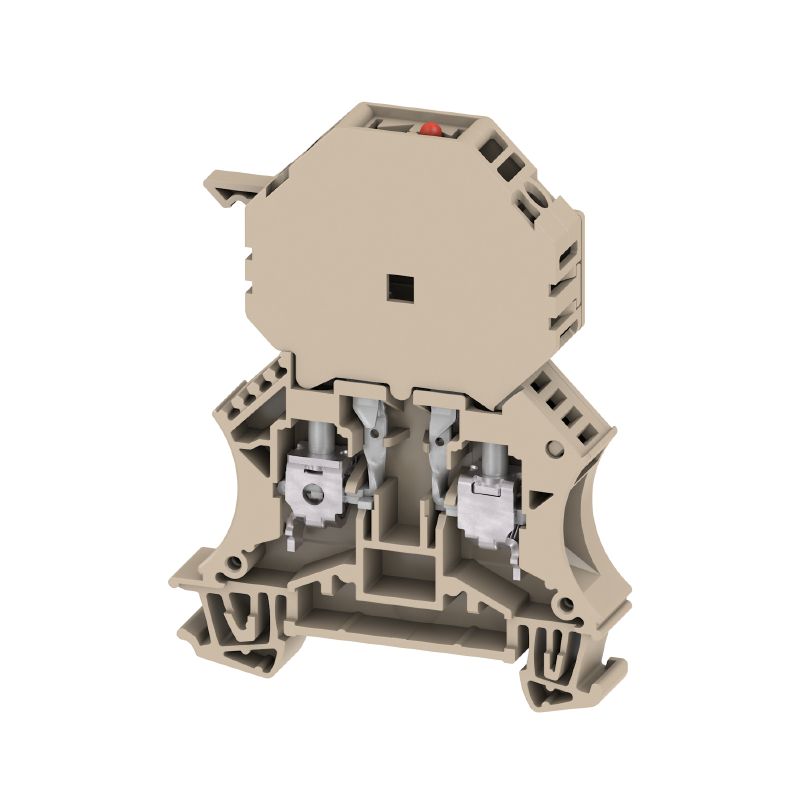

Product image
WSI 6/2/LD 30-70V DC/AC

WSI 6/2/LD 30-70V DC/AC

Fuse terminal, Screw connection, dark beige, 6 mm², 10 A, 70 V, Number of connections: 2, Number of levels: 1, TS 35

Tuotteen tunnus 1014200000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 16 Samankaltaiset tuotteet 228
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Fuse terminals General Rating data UL rating data Important note Product images Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/966ab2aa-a692-450f-aa01-511debec6d4c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (UR)
E60693

General ordering data

Verze
Fuse terminal, Screw connection, dark beige, 6 mm², 10 A, 70 V, Number of connections: 2, Number of levels: 1, TS 35
Číslo objednávky
1014200000
Art
WSI 6/2/LD 30-70V DC/AC
GTIN (EAN)
4008190079390
Množství
25 items

Dimensions and weights

Hloubka
78,5 mm
Depth (inches)
3,091 inch
Depth including DIN rail
79,5 mm
Výška
60 mm
Height (inches)
2,362 inch
Šířka
11,9 mm
Width (inches)
0,469 inch
Net weight
24,182 g

Temperatures

Storage temperature
-25 °C...55 °C
Okolní teplota
-50 °C…75 °C
Continuous operating temp., min.
−50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Screw connection
Fuse isolator
with LED
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

導体断面、フレキシブルおよびプラスチックカラー DIN 46228/1、追加接続、最大
6 mm²
接続種別、追加接続
Screw connection

Conductors for clamping (rated connection)

Anslutningsområde, max.
10 mm²
Anslutningstyp
Screw connection
Anslutningstyp 2
Screw connection
Antal anslutningar
2
Blade size
0.8 x 4.0 mm
Clampable conductor
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      solid, H05(07) V-U
    • min.:
      0,5 mm²
    • max.:
      10 mm²
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        12 mm
      • max.:
        12 mm
      • nominal:
        12 mm
    • Tightening torque:
      • min.:
        0,8 Nm
      • max.:
        1,6 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      stranded, H07V-R
    • min.:
      1,5 mm²
    • max.:
      10 mm²
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        12 mm
      • max.:
        12 mm
      • nominal:
        12 mm
    • Tightening torque:
      • min.:
        0,8 Nm
      • max.:
        1,6 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      flexible, H05(07) V-K
    • min.:
      0,5 mm²
    • max.:
      10 mm²
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        12 mm
      • max.:
        12 mm
      • nominal:
        12 mm
    • Tightening torque:
      • min.:
        0,8 Nm
      • max.:
        1,6 Nm
Clamping range, min.
0,5 mm²
Clamping screw
M 3.5
Connection cross-section, finely stranded, min.
0,5 mm²
Connection cross-section, stranded, max.
10 mm²
Connection cross-section, stranded, min.
0,5 mm²
Connection direction
on side
IEC 60947-1 규격 게이지
A5
Moment obrotowy dociągający, min.
0,8 Nm
Tightening torque, max.
1,6 Nm
Torque level with DMS electric screwdriver
3
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
10 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, solid core, max.
10 mm²
Wire connection cross-section, solid core, min.
0,5 mm²
Длина зачистки изоляции
12 mm
결선 단면규격 AWG, 최대
AWG 8

CSA rating data

Certificate No. (CSA)
200039-1057876
Wire cross section max. (CSA)
6 AWG
Wire cross section min. (CSA)
20 AWG

Fuse terminals

Cartridge fuse
6.3 x 32 mm (1/4 x 1 1/4")
Display
Red LED
Soporte del fusible (porta fusibles)
Pivoting
Tension de fonctionnement max.
70 V
Tipo de tensión para el indicador
AC/DC

General

Sezione di collegamento cavo AWG, max.
AWG 8
Sezione di collegamento cavo AWG, min.
AWG 20
取り付けレール
TS 35
標準
IEC 60947-7-3

Rating data

Rated cross-section
6 mm²
Rated voltage
70 V
Rated voltage to adjoining terminal
500 V
Rated DC voltage
70 V
Nominal current
10 A
Current at maximum wires
10 A
Standards
IEC 60947-7-3
Volume resistance according to IEC 60947-7-x
0,78 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
1,31 W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
8 AWG
Conductor size Factory wiring min. (UR)
22 AWG
Conductor size Field wiring max. (UR)
8 AWG
Conductor size Field wiring min. (UR)
22 AWG

Important note

Product information
The voltage depends on the selected fuse element or the selected indicator light

Product images

Classifications

ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
