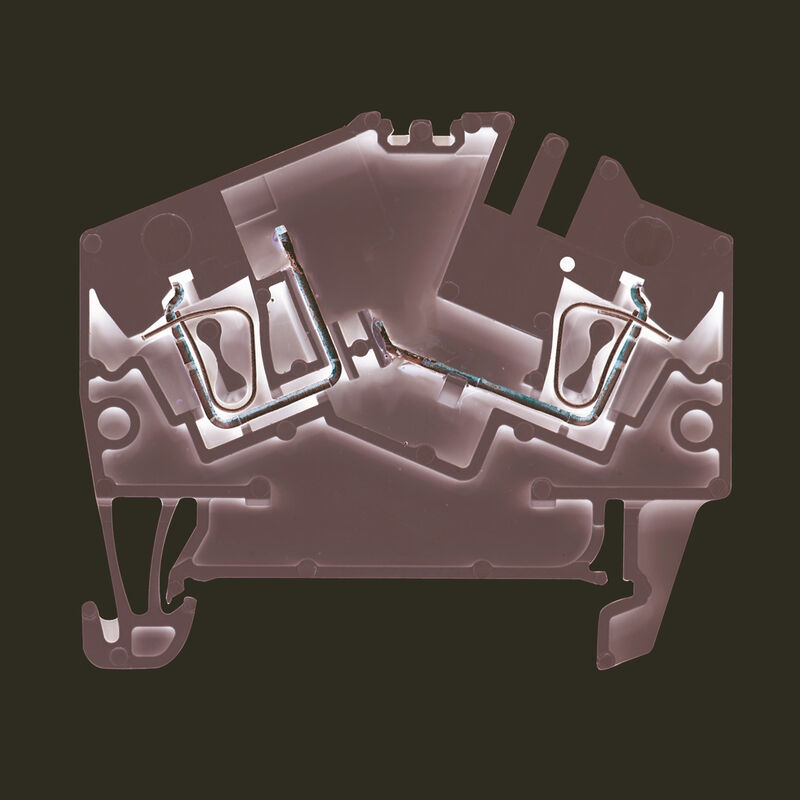

ZDU 2.5-2 O.EL

Z-series, Component terminal, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige

Produkt ID 1868870000

Version	Z-series, Component terminal, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
Order No.	1868870000
Type	ZDU 2.5-2 O.EL
GTIN (EAN)	4032248442423
Qty.	20 Styk

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Version	Tension-clamp connection for plug-in cross-connector One end without connector
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.

2,5 mm²

Blade size	0.6 x 3.5 mm
Clamping range, max.	2,5 mm²
Clamping range, min.	0,05 mm²
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0,5 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	2
Stripping length	10 mm
Type of connection	Tension-clamp connection
Type of connection 2	Tension-clamp connection
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section, finely stranded, max.	2,5 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	1,5 mm²
Wire connection cross-section, solid core, max.	2,5 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

TS 35 offset

28 mm

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 14
Wire connection cross section AWG, min.	AWG 20

Rated cross-section	2,5 mm²
Rated voltage	400 V
Rated DC voltage	400 V
Rated current	1 A
Current at maximum wires	0,5 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1,33 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0,77 W
Pollution severity	3

Product information

The allowed continuous operating temperature must be observed
