B2CF 3.50/06/180LR SN BK BX

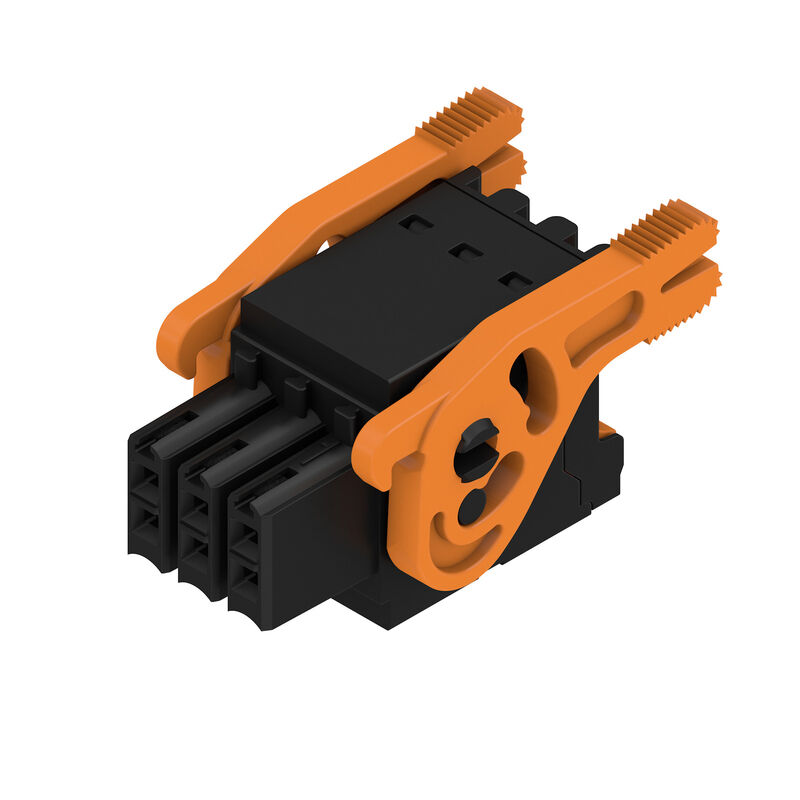

제품 이미지
그림과 유사
B2CF 3.50/06/180LR SN BK BX
제품 이미지
B2CF 3.50/06/180LR SN BK BX
Dimensional drawing
B2CF 3.50/06/180LR SN BK BX
Graph
B2CF 3.50/06/180LR SN BK BX
제품 장점
Solid PUSH IN contact
Safe and durable
B2CF 3.50/06/180LR SN BK BX
제품 장점
Large connection cross-section
Up to 1.5 mm possible with ease
B2CF 3.50/06/180LR SN BK BX
제품 장점
Fast PUSH IN connection
Tool-free and touch-safe
B2CF 3.50/06/180LR SN BK BX
사용 예

B2CF 3.50/06/180LR SN BK BX

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 6, 180°, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Box

Cikkszám 1278240000
Adatlap letöltése Engineeringondersteuning Productdownloads
Tillbehör 2 Motdelar 6 Använda produkter 35
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 6, 180°, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Box
Order No.
1278240000
Type
B2CF 3.50/06/180LR SN BK BX
GTIN (EAN)
4050118069228
Qty.
85 adet
Product data
IEC: 320 V / 13.4 A / 0.14 - 1.5 mm²
UL: 300 V / 9.5 A / AWG 30 - AWG 16
Packaging
Box

Dimensions and weights

Depth
29.9 mm
Depth (inches)
1.177 inch
Height
17.25 mm
Height (inches)
0.679 inch
Width
17.4 mm
Width (inches)
0.685 inch
Net weight
3.539 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.114 kg CO2eq.

System Parameters

제품군
OMNIMATE Signal - series B2C/S2C 3.50 - 2-row
결선 유형
Field connection
와이어 결선 방식
PUSH IN with actuator
피치(mm)(P)
3.5 mm
피치(인치)(P)
0.138 "
Orientation de la sortie du conducteur
180°
극 수
6
L1(mm)
7 mm
L1(인치)
0.276 "
행 수
1
핀 시리즈 수량
2
Section nominale
15 mm²
Ochrana bezpečná proti dotyku dle normy DIN VDE 57 106
Safe from finger touch
Berührungsschutz nach DIN VDE 0470
IP20 plugged
Protection degree
IP20
when fully mounted
코딩 가능
Yes
Stripping length
10 mm
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
5 N
Pulling force/pole, max.
5 N

Material data

Insulating material
PA 66 GF 30
Colour
black
Colour of operational elements
orange
Colour chart (similar)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 600
Insulation resistance
≥ 108 Ω
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
tinned
Layer structure of plug contact
2...5 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-40 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Clamping range, min.
0.14 mm²
Clamping range, max.
1.5 mm²
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section AWG, max.
AWG 16
Solid, min. H05(07) V-U
0.14 mm²
Solid, max. H05(07) V-U
1.5 mm²
Flexible, min. H05(07) V-K
0.14 mm²
Flexible, max. H05(07) V-K
1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.14 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.14 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1.5 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0.14 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9028240000
  • Cross-section for conductor connection:
    • nominal:
      0.25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025780000
  • Cross-section for conductor connection:
    • nominal:
      0.34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025790000
  • Cross-section for conductor connection:
    • nominal:
      0.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028270000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • nominal:
      0.75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028290000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • nominal:
      1
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028320000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • nominal:
      1.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
13.4 A
Rated current, max. number of poles (Tu=20°C)
10 A
Rated current, min. number of poles (Tu=40°C)
12 A
Rated current, max. number of poles (Tu=40°C)
9 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2.5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2.5 kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

Institute (CSA)
CSA
Núm. de certificación (CSA)
200039-1121690
정격 전압(사용 그룹 B / CSA)
300 V
정격 전압(사용 그룹 C / CSA)
50 V
정격 전압(사용 그룹 D / CSA)
300 V
Rated current (Use group B / CSA)
9.5 A
Courant nominal (groupe d'utilisation C / CSA)
9.5 A
Névleges áram (D felhasználási csoport / CSA)
9.5 A
Sección de conexión del conductor AWG, mín.
AWG 30
Wire cross-section, AWG, max.
AWG 16
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

협회(cURus)
CURUS
인증 번호(cURus)
E60693
정격 전압(사용 그룹 B / UL 1059)
300 V
정격 전압(사용 그룹 C / UL 1059)
50 V
정격 전압(사용 그룹 D / UL 1059)
300 V
Jmenovitý proud (aplikační skupina B / UL 1059)
9.5 A
Jmenovitý proud (aplikační skupina C / UL 1059)
9.5 A
Rated current (Use group D / UL 1059)
9.5 A
Wire cross-section, AWG, min.
AWG 30
와이어 단면적, AWG, 최대
AWG 16
Hänvisning till godkännandevärden
Specifikace jsou maximální hodnoty, podrobnosti viz příslušná certifikace.

Packing

Packaging
Box
Longitud de VPE
350 mm
Szerokość VPE
135 mm
Высота VPE
41 mm

Type tests

Test: wytrzymałość znaczników
  • Standard:
    IEC 61984 section 6.2 and 7.3.2 / 10.11 taking pattern from IEC 60068-2-70 / 12.95
  • Test:
    mark of origin, type identification, pitch, type of material, date clock, approval marking UL, approval marking cULus
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: nieprawidłowe połączenie (brak możliwości wymiany)
  • Standard:
    IEC 61984 section 6.3 and 6.9.1 / 10.11, IEC 60512-13-5 / 02.06
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Испытание: Зажимное поперечное сечение
  • Standard:
    IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test des dommages causés aux et au desserrage accidentel des conducteurs
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Frånslagstest
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Max. outer diameter of the conductor 2.6 mm
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
