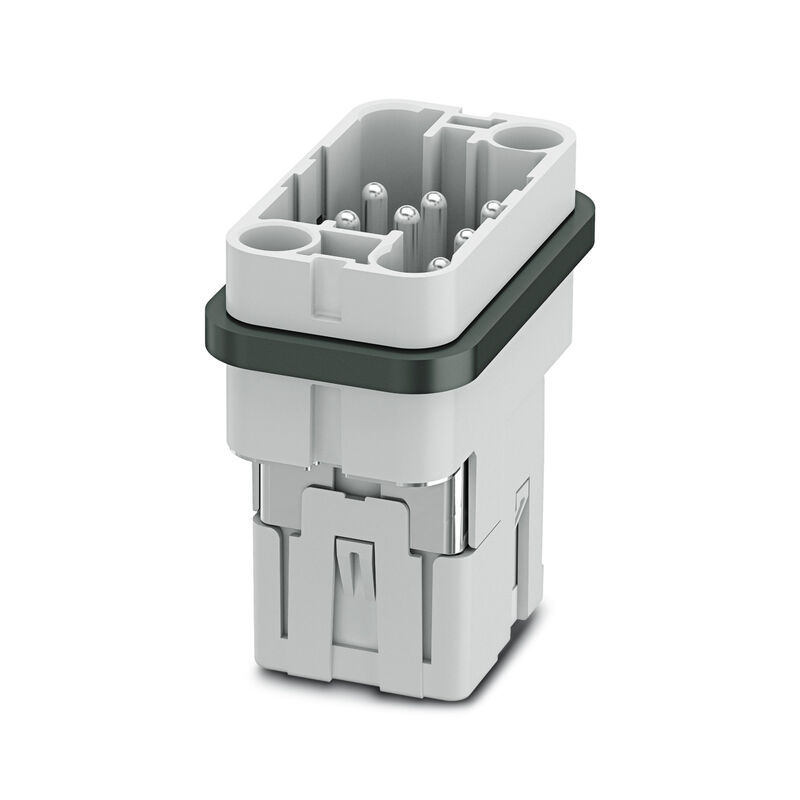

HDC HQ 8 MP
HDC HQ 8 MP
HDC HQ 8 MP

HDC HQ 8 MP

HDC insert, Male, 500 V, 16 A, Number of poles: 8, PUSH IN, Installation size: HQ

ID výrobku 2937360000
Stáhnout datový list Engineering Support Product Downloads
Aksesuarlar 7 aksesuarıdır 3 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dimensions Dati generali Power contact 버전 Classifications

Approvals

Omologazioni
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E310075

General ordering data

Versione
HDC insert, Male, 500 V, 16 A, Number of poles: 8, PUSH IN, Installation size: HQ
N. d’ordine
2937360000
Tipo
HDC HQ 8 MP
GTIN (EAN)
4099986694132
Qty.
1 adet

Dimensions and weights

Profondità
41,2 mm
Depth (inches)
1,622 inch
Posizione verticale
45,5 mm
Height (inches)
1,791 inch
Larghezza
26,3 mm
Width (inches)
1,035 inch
Lunghezza
2,5 mm
Length (inches)
0,098 inch
Net weight
38 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Šířka
26,3 mm

Dati generali

Basic material
Lega di rame
Bemessungsstoßspannung (DIN EN 61984)
6 kV
BG
HQ
Colour
Jasnoszary
Installation size
HQ
Insulating material
PC
Jelérintkezők száma
0
Number of poles
8
Number of power contacts
8
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated voltage (DIN EN 61984)
500 V
Series
HQ
Surface finish
Silver passivated
Surge voltage category
III
Type
Male
Type of connection
PUSH IN
UL 94 flammability rating
V-0

Power contact

Jmenovité napětí (DIN EN 61984), silový kontakt
500 V

버전

BG
HQ
Conductor cross-section, min.
0,5 mm²
Dimensioni di installazione
HQ
Powierzchnia
Silver passivated
Tipo di collegamento
PUSH IN
Основной материал
Copper alloy
전선 굵기, 최대
2,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
