LMZF 7/12/135 3.5OR

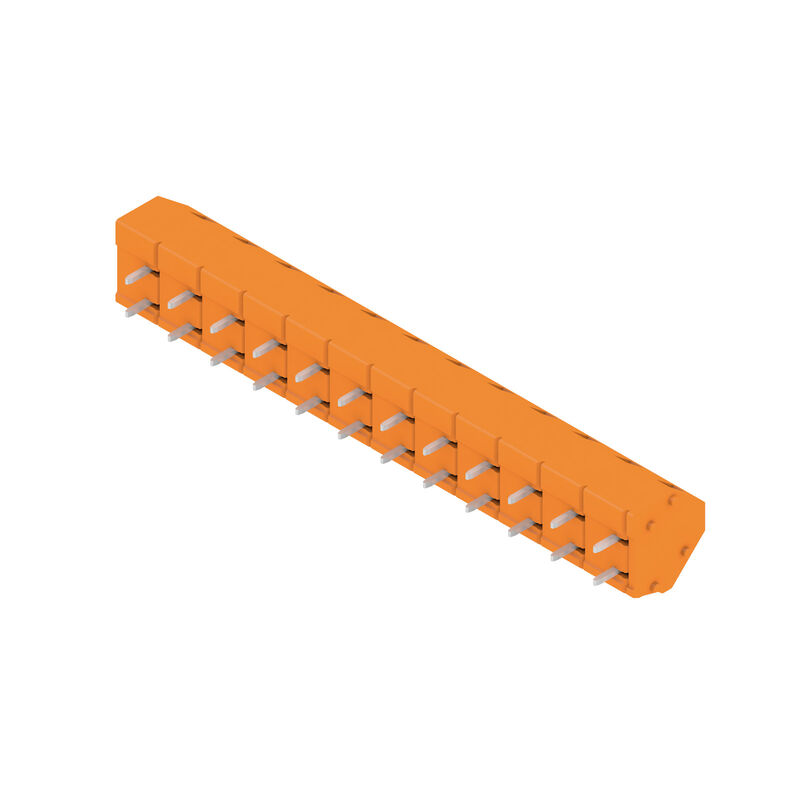

Product image
LMZF 7/12/135 3.5OR
Product image
LMZF 7/12/135 3.5OR
Dimensional drawing
LMZF 7/12/135 3.5OR
Graph

LMZF 7/12/135 3.5OR

Printed circuit board terminals, 7.50 mm, Number of poles: 12, 135°, Solder pin length (l): 3.5 mm, tinned, orange, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box

Tuotteen tunnus 1952670000
Lataa tietosivu Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Jmenovité údaje podle CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Agréments
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[Site Web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, 7.50 mm, Number of poles: 12, 135°, Solder pin length (l): 3.5 mm, tinned, orange, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box
Référence
1952670000
Type
LMZF 7/12/135 3.5OR
GTIN (EAN)
4032248662302
Qty.
100 items
Product data
IEC: 1000 V / 24 A / 0.13 - 2.5 mm²
UL: 300 V / 15 A / AWG 26 - AWG 14
Packaging
Box

Dimensions and weights

Profondeur
14.5 mm
Depth (inches)
0.571 inch
Hauteur
16.48 mm
Height (inches)
0.649 inch
Height of lowest version
12.98 mm
Largeur
92.5 mm
Šířka (v palcích)
3.642 inch
Net weight
15.801 g

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Famille de produits
OMNIMATE Signal - series LMZF
Technique de raccordement de conducteurs
Tension-clamp connection
Montage sur le circuit imprimé
THT solder connection
Orientation de la sortie du conducteur
135°
Pas en mm (P)
7.5 mm
Pas en pouces (P)
0.295 "
Nombre de pôles
12
Pin series quantity
1
Fitted by customer
No
Number of rows
1
nombre maximal de pôles juxtaposables par rangée
12
Longueur du picot à souder (l)
3.5 mm
Dimensions du picot à souder
0.8 x 0.8 mm
Diamètre du trou d'implantation (D)
1.3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
2
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264-A
Stripping length
6 mm
L1 in mm
82.5 mm
L1 in inches
3.248 "
Ochrana bezpečná proti dotyku dle normy DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20

Material data

Matériau isolant
Wemid (PA)
Couleur
orange
Tableau des couleurs (similaire)
RAL 2000
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Matériau des contacts
Copper alloy
Contact surface
tinned
Coating
4-10 μm SN
Tinning type
matt
Structure en couches du raccordement soudé
5...8 µm Sn
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Plage de serrage, min.
0.13 mm²
Plage de serrage, max.
2.5 mm²
Wire connection cross section AWG, min.
AWG 26
Section de raccordement du conducteur, AWG, max.
AWG 14
Solid, min. H05(07) V-U
0.13 mm²
Solid, max. H05(07) V-U
2.5 mm²
Flexible, min. H05(07) V-K
0.13 mm²
fintrådig, max. H05(07) V-K
2.5 mm²
С наконечником DIN 46 228/4, мин.
0.25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.25 mm²
avec embout selon DIN 46 228/1, max.
1.5 mm²
Raccordement
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409600000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409700000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025740000
    • Stripping length:
      • nominal:
        5 mm
    • Recommended wire-end ferrule:
      9018910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025750000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
24 A
Rated current, max. number of poles (Tu=20°C)
24 A
Courant nominal, nombre de pôles min. (Tu = 40 °C)
24 A
Rated current, max. number of poles (Tu=40°C)
24 A
Rated voltage for surge voltage class / pollution degree II/2
1,000 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
800 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/3
400 V
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Névleges lökőfeszültség a III/3 túlfeszültség osztályhoz / szennyeződés mértékéhez
6 kV

Jmenovité údaje podle CSA

Tension nominale (groupe d'utilisation B / CSA)
300 V
Tension nominale (groupe d'utilisation C / CSA)
150 V
Tension nominale (groupe d'utilisation D / CSA)
300 V
Courant nominal (groupe d'utilisation B / CSA)
15 A
Courant nominal (groupe d'utilisation C / CSA)
15 A
Intensidad nominal (Use Group D / CSA)
10 A
Section de raccordement de câble AWG, min.
AWG 26
Section de raccordement de câble AWG, max.
AWG 14

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Certificat Nº (cURus)
E60693
Tension nominale (groupe d'utilisation B / UL 1059)
300 V
Tension nominale (groupe d'utilisation C / UL 1059)
150 V
Rated voltage (Use group D / UL 1059)
300 V
Courant nominal (groupe d'utilisation B / UL 1059)
15 A
Rated current (Use group C / UL 1059)
15 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Section de raccordement de câble AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Emballage
Box
Longueur VPE
292 mm
Largeur VPE
279 mm
Hauteur VPE
121 mm

Type tests

Test : durabilité des marquages
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, type of material, approval marking UL, approval marking CSA, durability
  • Evaluation:
    available
Test : section à fixer
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      rígido de 0,13 mm²
    • Tipo de conductor y sección de conductor:
      souple 0,13 mm²
    • Type de conducteur et section du conducteur:
      rigide 2,5 mm²
    • Type de conducteur et section du conducteur:
      semi-rigide 2,5 mm²
    • Type de conducteur et section du conducteur:
      AWG 26/1
    • Type de conducteur et section du conducteur:
      AWG 26/19
    • Type de conducteur et section du conducteur:
      AWG 14/1
    • Type de conducteur et section du conducteur:
      AWG 14/19
  • Évaluation:
    réussite
Test des dommages causés aux et au desserrage accidentel des conducteurs
  • Standard:
    DIN EN 60999-1, раздел 9.4/12.00
  • Требование:
    0.2 kg
  • 导线类型:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 2.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Test de décrochage
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed

Important note

Conformité IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Remarques
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
