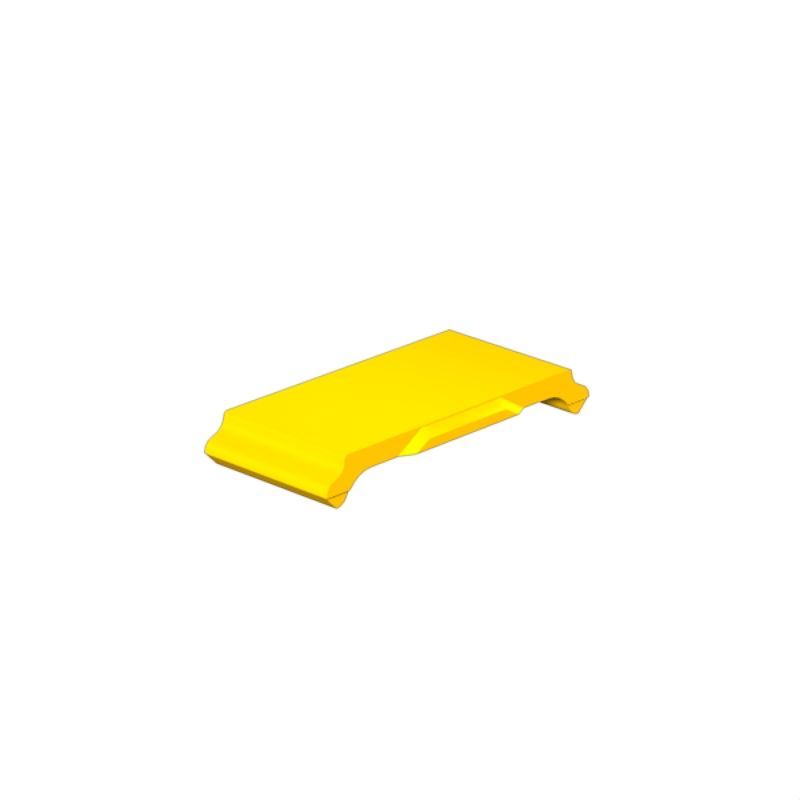

MultiFit, Terminal marker, 9 x 5 mm, Pitch in mm (P): 5.00 WAGO, Legrand, yellow

Tuotteen tunnus 1027310000
Lataa tietosivu Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connector markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
MultiFit, Terminal marker, 9 x 5 mm, Pitch in mm (P): 5.00 WAGO, Legrand, yellow
Order No.
1027310000
Type
MF-W 9/5 MC NE GE
GTIN (EAN)
4032248753291
Qty.
500 items

Dimensions and weights

Height
9 mm
Height (inches)
0,354 inch
Width
5 mm
Width (inches)
0,197 inch
Net weight
0,162 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.001 kg CO2 eq.

General data

Applicazione / Produttore
WAGO
Legrand
Basic material
poliamid 66
Colour
желтый
Gama de temperaturas de servicio
-40...100 °C
Halogen
No
Jelölők száma kombinációnként
  • Form of supply:
    MultiCard
Jelölők száma kombinációnként
1 MultiCard = Terminal marker
kompatibilis nyomtató
[PRINTJET CONNECT](~/p/2715590000)
Material colour according to resistance code
4
Operating temperature range, max.
100 °C
Operating temperature range, min.
−40 °C
Printed characters
neutral
Type of printing
neutral
UL 94 flammability rating
V-2
Width
5 mm

Connector markers

Pitch in mm (P)
5 mm

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
