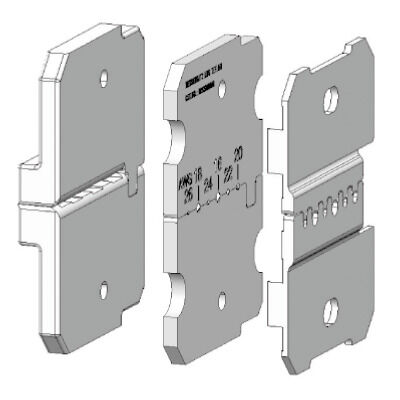

AIE MULTI-STRIPAX AWG

AIE MULTI-STRIPAX AWG

Insert

Product ID 9202280000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Is accessoire van 10 Afzonderlijke onderdelen van 1 Verwante producten 12
General ordering data Dimensions and weights Environmental Product Compliance Technical data Stripping tools Classifications

General ordering data

Wersja
Insert
N. d’ordine
9202280000
Typ
AIE MULTI-STRIPAX AWG
GTIN (EAN)
4032248486236
Qty.
1 items

Dimensions and weights

Głębokość
30 mm
Depth (inches)
1,181 inch
Wysokość
3 mm
Height (inches)
0,118 inch
Szerokość
41 mm
Width (inches)
1,614 inch
Długość
41 mm
Length (inches)
1,614 inch
Net weight
73,04 g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0

Technical data

Árucikk leírása
Stripping unit for AWG 26-16

Stripping tools

Megmunkálható kábel
AWG conductors with PTFE and PVC

Classifications

ETIM 8.0
EC001509
ETIM 9.0
EC001509
ETIM 10.0
EC001509
ECLASS 14.0
21-04-48-91
ECLASS 15.0
21-04-48-91
