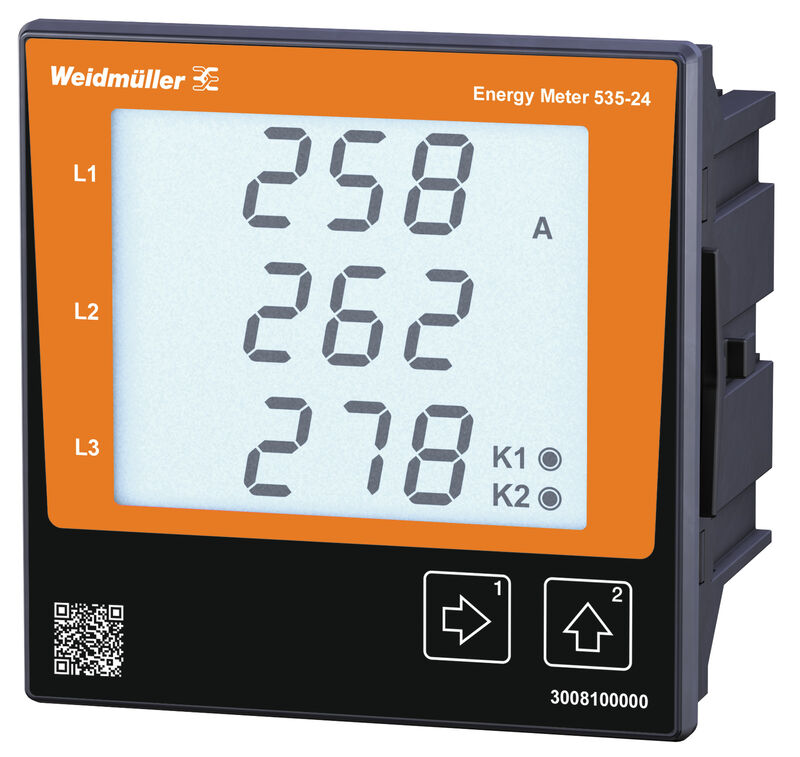

ENERGY METER 535-24

ENERGY METER 535-24

Supply voltage : 230 V

Tuotteen tunnus 3008100000
Lataa tietosivu Product Downloads
Lisävarusteet 3 Samankaltaiset tuotteet 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Measuring current input Measuring voltage input Communication Inputs/outputs Measurement data recording Technical data Voltage quality measurement Insulation coordination Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E469563

General ordering data

Version
Supply voltage : 230 V
Order No.
3008100000
Type
ENERGY METER 535-24
GTIN (EAN)
4099986909427
Qty.
1 items

Dimensions and weights

Depth
48 mm
Depth (inches)
1,89 inch
Height
96 mm
Height (inches)
3,78 inch
Width
97 mm
Width (inches)
3,819 inch
Net weight
250 g

Temperatures

Storage temperature
-25 °C...70 °C
Humidity at storage temperature
0...90 % RH
Operating temperature
-10 °C...55 °C
Humidity at operating temperature
0 - 75% RH

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Measuring current input

Current-measuring channels
3
Distortion factor THD-I in %
Yes
Harmonics, per order / current
1.-40.
Housing main material
Plastic
Max. current
5000 A
Measuring accuracy for current
0,2 %
Residual current measuring
No

Measuring voltage input

Distortion factor THD-U in %
Yes
Four-wire system
Yes
Harmonics, per order / voltage
1.-40.
Low voltage network
3 phase 3 wire (L1 + L2 + L3)
3 phase 4 wire (L1 + L2 + L3 + N)
Measurement range, voltage L-L, AC
480 V
Measurement range, voltage L-N, AC
277 V
Measuring accuracy for voltage
0,2 %
Quadrants
4
Three-wire system
Yes

Communication

Interface
Ethernet
Protocol
Modbus/TCP
Modbus RTU over Ethernet

Inputs/outputs

Number of digital inputs
0
Number of digital outputs
0
Temperature input
No

Measurement data recording

Memory; minimum and maximum values
Yes
Update interval register
200 ms
Software
ecoExplorer go®
Integrated logic
Yes

Technical data

Display monitoring (monitor)
LCD
Max. current
5000 A
Protection degree
IP40
IP20
Type of mounting
Frontpanel mounting
Version
Power measurement/display for 1-, 3-phase mains
Standards
IEC 61010-2-030
IEC 61010-1
EN 61326-1
Measurement range, voltage L-N, AC
277 V
Measurement range, voltage L-L, AC
480 V
Surge voltage category
300 V CAT III
Supply voltage
24 - 90 V DC
24 - 90 V AC (50/60 Hz)
Supply voltage
230 V
Three-wire system
Yes
Four-wire system
Yes
Quadrants
4
Sampling frequency 50/60 Hz
25,6 kHz
Continuous measurements
Yes
Measurement result per second
5 ms
Effective value from the period (50/60 Hz)
10 / 12
Residual current measuring
No
Current-measuring channels
3
Measuring accuracy for voltage
0,2 %
Measuring accuracy for current
0,2 %
Measurement accuracy for active energy (kWh, .../5 A)
Class 0.5S
Operating-hours counter
Yes
Weekly time switch
No
Bimetal function
Yes

Voltage quality measurement

Harmonics, per order / voltage
1.-40.
Harmonics, per order / current
1.-40.
Distortion factor THD-U in %
Yes
Distortion factor THD-I in %
Yes
Unbalanced
No
Positive, negative and zero system
Yes
Brief interruptions
No
Sequence-of-events recorder function
No

Insulation coordination

Surge voltage category
300 V CAT III

Classifications

ETIM 6.0
EC002301
ETIM 7.0
EC002301
ETIM 8.0
EC002301
ETIM 9.0
EC002301
ETIM 10.0
EC002301
ECLASS 9.0
27-14-23-30
ECLASS 9.1
27-21-03-01
ECLASS 10.0
27-14-23-30
ECLASS 11.0
27-14-23-30
ECLASS 12.0
27-14-23-30
ECLASS 13.0
27-14-23-30
ECLASS 14.0
27-14-23-30
ECLASS 15.0
27-14-23-30
