FBCEX PA M12 MA-FM 2M
FBCEX PA M12 MA-FM 2M
Dimensioned drawing
Male, angled
FBCEX PA M12 MA-FM 2M
Dimensioned drawing
Straight socket
FBCEX PA M12 MA-FM 2M
Pole scheme
Pin
FBCEX PA M12 MA-FM 2M
Pole scheme
Socket
FBCEX PA M12 MA-FM 2M
Wiring diagram
FBCEX PA M12 MA-FM 2M
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

FBCEX PA M12 MA-FM 2M

Dette produkt er ikke længere tilgængeligt.

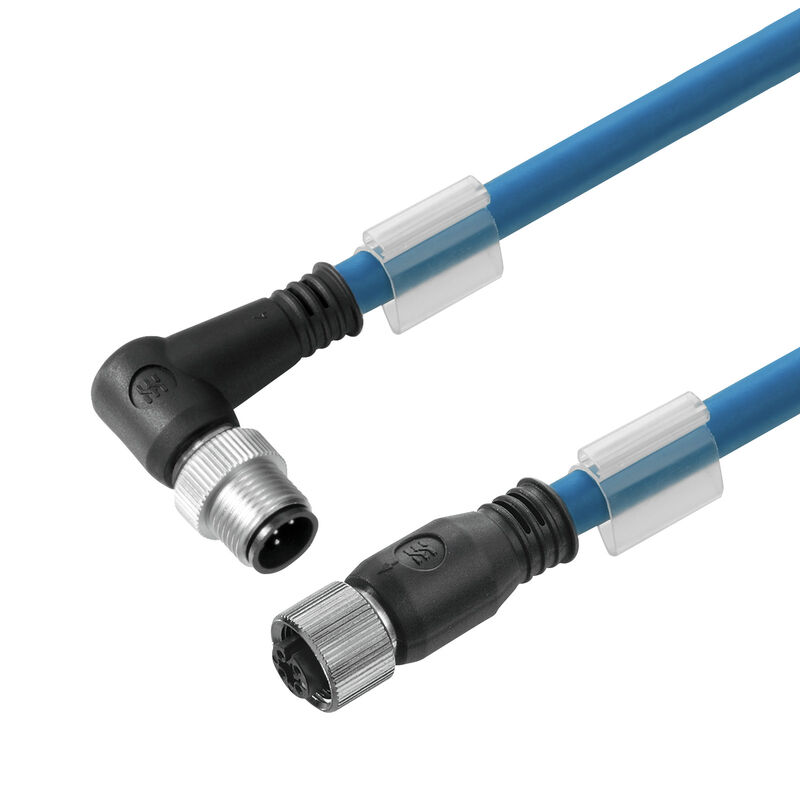

Bus line, Connecting line, M12 / M12, Number of poles: 2, 2 m, pin, angled - bush straight, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes

Produkt ID 1075450200
Download datablad Engineering-support
Approvals General ordering data Dimensions and weights Environmental Product Compliance 케이블의 기술 사양 PB46 Общие технические данные Electrical properties Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
준수

General ordering data

Version
Bus line, Connecting line, M12 / M12, Number of poles: 2, 2 m, pin, angled - bush straight, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1075450200
Type
FBCEX PA M12 MA-FM 2M
GTIN (EAN)
4032248833931
Ilość
1 szt.
Статус поставки
Снято с производства
Sista orderdatum
/Date(1764370800000)/

Dimensions and weights

Net weight
163,68 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS alóli kivétel (ha van/ismert ilyen)
6c
REACH SVHC
Lead 7439-92-1
SCIP
273a2adc-147a-4b75-9d50-227deee55a05

케이블의 기술 사양

Bending radius, min., moving
8 x średnica kabla
Bending radius, min., stationary
8 x диаметр кабеля
Cable length
2 m
Colour coding
red
green
Configurable cable length
No
Core cross-section
1 mm²
Halogen
Yes
Hybrid cable
No
Insulation
PE
Irradiation crosslinked
No
Number of poles
2
Outside diameter
8 mm ± 0.4 mm
Resistant to welding beads
No
Sheath material
PVC
Sheathing colour
modrá (RAL 5015)
Shielded
Ja
Suitable for cable carriers
Nein
Temperature range, moving
-5...60 °C
Temperature range, stationary
-30...80 °C
Welding spark resistance
Nein

PB46 Общие технические данные

Coding
A-kodad
Connection thread
M12 / M12
Contact material
Ni/Au
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal voltage
100 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Rozsah teplot krytu
-25…+80 °C
Threaded ring material
Messing, vernickelt
Utahovací moment
M12: 0,8 - 1,2 Nm
Version
Stift, gewinkelt - Buchse, gerade

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
100 V

Plug, left

Plug left
M12, A-coded, IP67, male contact, angled 90°, Plastic, shielded

Plug, right

Plug right
M12, A-coded, IP67, female contact, straight, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
