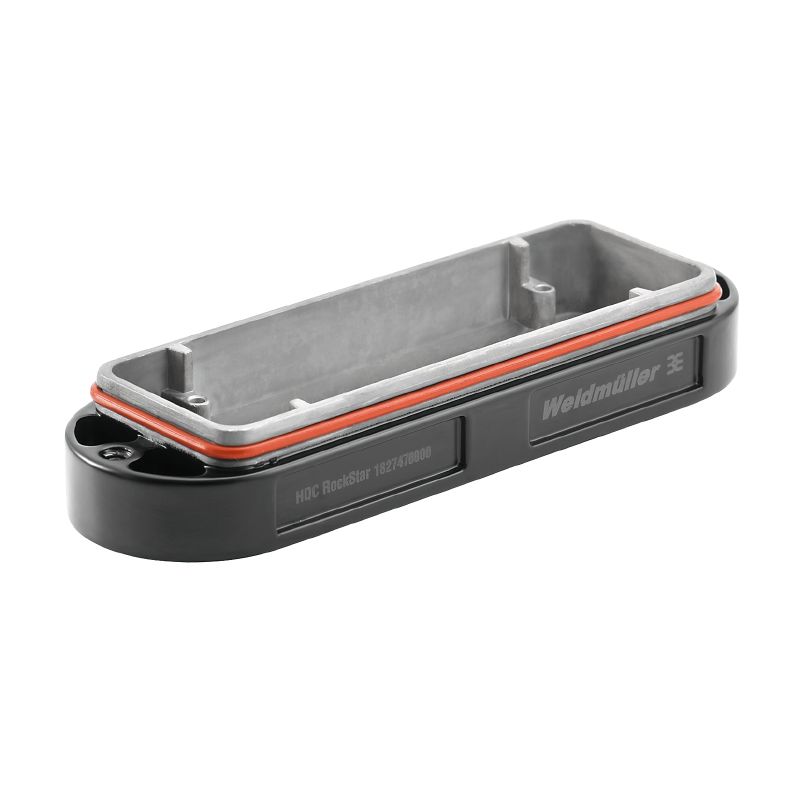

HDC enclosures, Installation size: 8, Protection degree: IP66, IP68, in plugged condition, Bulkhead housing, Clamping yoke connection, Standard, Size of cable entries: none

Item No. 1827470000
Download data sheet Engineering Support Product Downloads
Accessories 2 Related products 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 8, Protection degree: IP66, IP68, in plugged condition, Bulkhead housing, Clamping yoke connection, Standard, Size of cable entries: none
Order No.
1827470000
Type
HDC HB 24 TEK AS M4
GTIN (EAN)
4032248332571
Qty.
1 items

Dimensions and weights

Height
29 mm
Height (inches)
1,142 inch
Width
58 mm
Width (inches)
2,283 inch
Mounting dimension - height
32 mm
Mounting dimension - width
130 mm
Net weight
181 g

Temperatures

Limit temperature
-50 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Unstable
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Unstable
  • Substance:
    Sweat
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Unstable
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Resistant
  • Substance:
    Ozone
  • Chemical resistance:
    Resistant

Dimensions

구멍 피치 길이 A2
130 mm
총 길이 하우징
184 mm
케이블 인입
No
하우징 B의 높이
29 mm

General data

Housing main material
diecast aluminium
Powierzchnia
Powder coating
Вид защиты
IP66
IP68
in plugged condition
Корпуса ЭМС
Yes
조임 토크
6,5 Nm

Version

BG
8
Dimensioni di installazione
8
Größe Kabeleingänge
none
Kivitel
Standard
ModuPlug®에 적합함
Yes
Number of cable entry sideways
0
Oberteil/Unterteil/Deckel
lower part
Par de apriete
6,5 Nm
Rögzítőrendszer kivitele
Clamping yoke connection
Tapa
without cover
Version boîtier
Bulkhead housing
실링
Silicone
유형
Bulkhead (feed-through)
컬러(RAL)
RAL 9011
케이블 인입
No
클램프 버전
Clamping yoke connection

Important note

Product information
When mounting the housings, make sure that the flat gasket is correctly seated.

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
