LUP ZP 2.54 GY

LUP ZP 2.54 GY

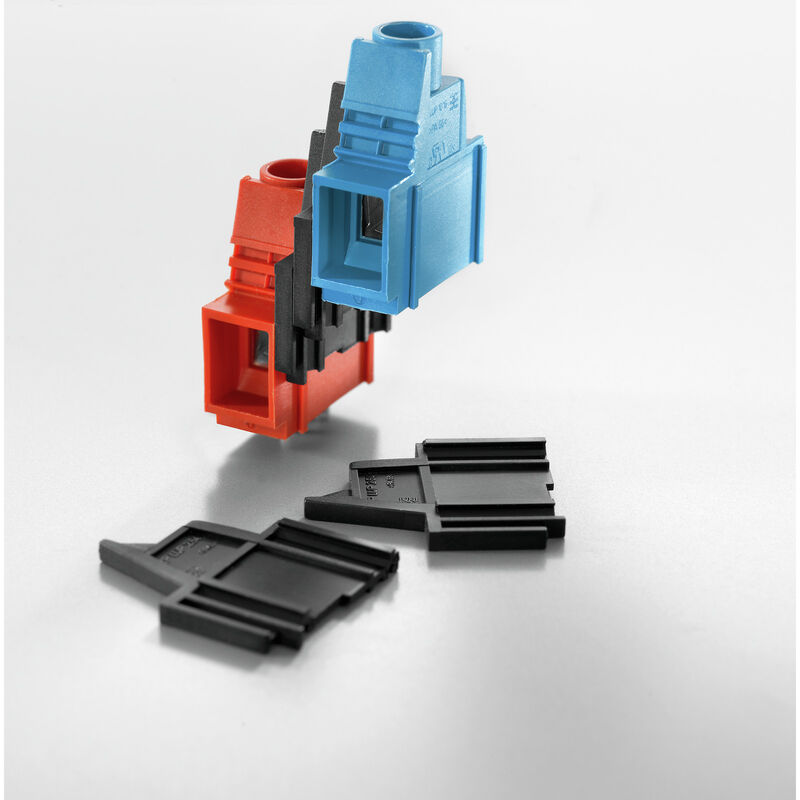

Printed circuit board terminals, Accessories, Intermediate plate, Pebble grey, Number of poles: 1

Item No. 1837580000
Download data sheet Product Downloads
Related products 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Printed circuit board terminals, Accessories, Intermediate plate, Pebble grey, Number of poles: 1
Order No.
1837580000
Type
LUP ZP 2.54 GY
GTIN (EAN)
4032248347315
Qty.
50 items
Product data

Packaging
Box

Dimensions and weights

Height
30.9 mm
Height (inches)
1.217 inch
Net weight
1.24 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Wire connection method
Clamping yoke connection
Mounting onto the PCB
THT solder connection
Conductor outlet direction
90°
Number of poles
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protection degree
IP20

Material data

Insulating material
PA
Colour
Pebble grey
Colour chart (similar)
RAL 7032
Contact material
Cu-alloy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=40°C)
76 A
Rated impulse voltage for surge voltage class (pollution degree III/2)
8 kV

Packing

Packaging
Box
VPE length
90 mm
VPE width
70 mm
VPE height
40 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-07
ECLASS 15.0
27-46-04-07
