Properties
| Version | Interface, RS, LED, 2-wire, Tension-clamp connection |
| Order No. | 9447930000 |

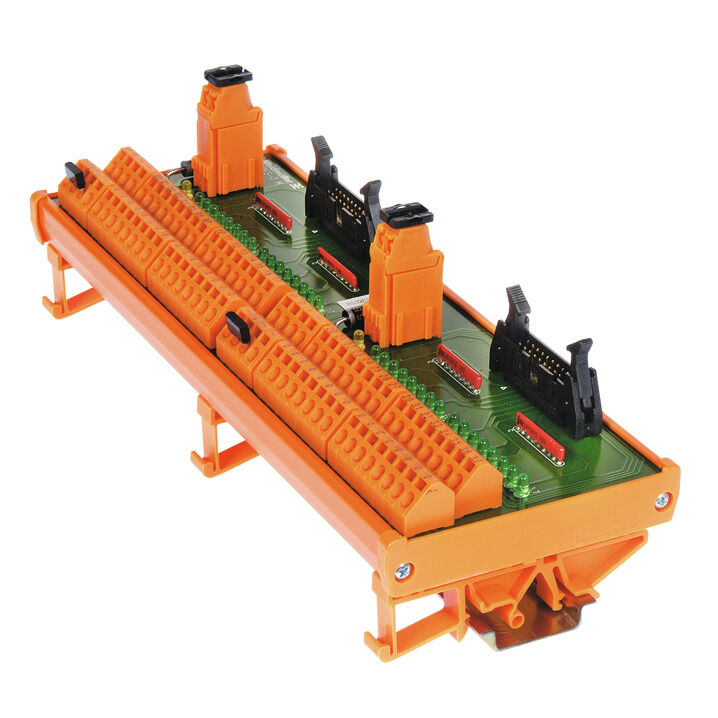

| Type | RS 32IO 2W L H Z |
| GTIN (EAN) | 4032248253234 |
| Qty. | 1 items |
| Depth | 72 mm |
| Depth (inches) | 2.835 inch |
| Height | 87 mm |
| Height (inches) | 3.425 inch |
| Width | 230 mm |
| Width (inches) | 9.055 inch |
| Net weight | 312.4 g |
| Storage temperature | -40...60 °C |
| Operating temperature | -25...50 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 7b5ffb72-271d-4c73-8b09-bd0aaee3697a |
| LED status display per channel | green |
| Disconnection per channel | No |
| Fuse per channel | No |
| LED status of the supply voltage | yellow |
| Power supply fuse | 3.15 A |
| Common pole polarity | Positive or negative can be selected using jumper |
| Connection (field side) | LMNZF 5.08mm |
| Connection on control side | 2x Plug-in connector acc. IEC 603-1 / DIN 41651 |
| Number of poles (control side) | 20-pole plug |
| Wiring system | 2-wire |
| Operating voltage | 24 V DC ± 10% |
| Max. current per channel | 1 A |
| Total operating current | 2 A |
| According to | DIN EN 50178 |
| Rated insulation voltage | < 50 V AC |
| Surge voltage category | III |
| Pollution severity level | 2 |
| Insulation test voltage AC | 0.35 kV |
| Clamping range, max. | 1.5 mm² |
| Clamping range, min. | 0.14 mm² |
| Flexible with sleeve, max. | 1.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Max. wire cross-section, AWG | AWG 14 |
| Min. wire cross-section, AWG | AWG 26 |
| Solid, max. H05(07) V-U | 1.5 mm² |
| Solid, min. H05(07) V-U | 0.5 mm² |
| Stripping length | 7 mm |
| Type of connection | Tension-clamp connection |
| Type of connection | Tension-clamp connection |
| Clamping range, min. | 0.14 mm² |
| Clamping range, max. | 1.5 mm² |
| Solid, min. H05(07) V-U | 0.5 mm² |
| Solid, max. H05(07) V-U | 1.5 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Flexible with sleeve, max. | 1.5 mm² |
| Wire cross-section, min. AWG | AWG 26 |
| Wire cross-section, max. AWG | AWG 14 |
| Stripping length | 7 mm |
| Product Change Notification | [20220525 Technical change to RS and RSM](https://mdcop.weidmueller.com/mediadelivery/asset/900_257205) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-24-22-16 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |  |
| ROHS | Conform |
