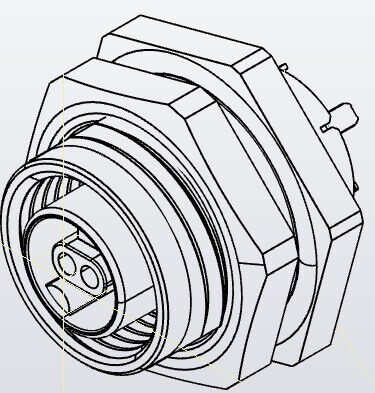

SPE M12F DC BPM16 RV 2.0 6 TY

SPE M12F DC BPM16 RV 2.0 6 TY

This product is not yet available.

PCB plug-in connector, SPE (Single Pair Ethernet), Clip-on flange, THT/THR solder connection, Number of poles: 2, 180°, Ni/Au, black, Tape

Item No. 3228140000
Download data sheet
Related products 15
General ordering data Dimensions and weights System specifications Electrical properties Standards Material data Packing Classifications

General ordering data

Version
PCB plug-in connector, SPE (Single Pair Ethernet), Clip-on flange, THT/THR solder connection, Number of poles: 2, 180°, Ni/Au, black, Tape
Order No.
3228140000
Type
SPE M12F DC BPM16 RV 2.0 6 TY
Packaging
Tape

Dimensions and weights

Depth
14.5 mm
Depth (inches)
0.571 inch
Height
24 mm
Height (inches)
0.945 inch
Width
10.1 mm
Width (inches)
0.398 inch

System specifications

Category
T1-B
Mounting onto the PCB
THT/THR solder connection
Number of poles
2
Outgoing elbow
180°
Performance-Category
T1-B 10/100/1000 MBit/s
Plugging cycles
≥ 100
Product family
OMNIMATE Data - Single Pair Ethernet
Protection degree
IP67 with housing
Shielding
Yes
Side termination, characteristic
Clip-on flange
Solder pin dimensions
Octagonal
Soldering process
Reflow soldering
Manual soldering
Wave soldering
Transmission rate
10/100/1000 MBit/s
Type of connection
Solder connection

Electrical properties

Dielectric strength, contact / contact
1000 V DC
Dielectric strength, contact / shield
2250 V DC
Insulation resistance
≥ 500 MΩ
Nominal voltage
72 V

Standards

Connector standard
IEC 63171-5

Material data

Insulating material
LCP
Colour
black
Colour chart (similar)
RAL 9011
Insulation resistance
≥ 500 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
Ni/Au
Operating temperature, min.
-40 °C
Operating temperature, max.
85 °C

Packing

Packaging
Tape

Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
