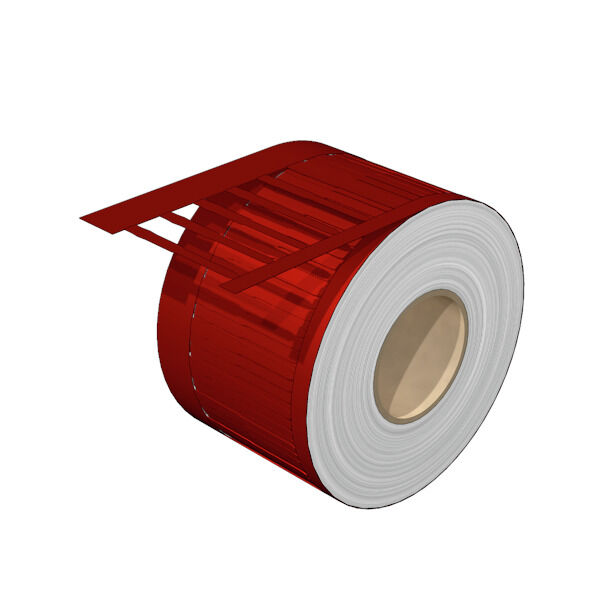

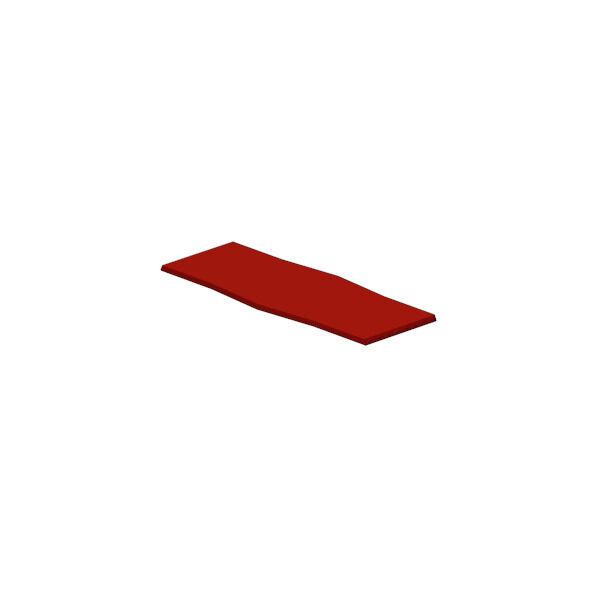

TM-I, Insert markers, 1.3 - 16 mm, 12 x 4 mm, red

Item No. 2005730000
Download data sheet Engineering Support Product Downloads
Accessories 3 Is accessory of 4 Related products 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
TM-I, Insert markers, 1.3 - 16 mm, 12 x 4 mm, red
Order No.
2005730000
Type
TM-I 12 MM RT
GTIN (EAN)
4050118390513
Qty.
2,000  items
Delivery status
This article will no longer be available in the future.
Available until
31.08.2025

Dimensions and weights

Height
12  mm
Height (inches)
0.472  inch
Width
4  mm
Width (inches)
0.157  inch
Net weight
0.166  g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyester
Colour
red
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
No
Number per roll
2000
Operating temperature range
-40...150 °C
Operating temperature range, max.
150  °C
Operating temperature range, min.
-40  °C
Printed characters
without
Type of printing
neutral
UL 94 flammability rating
HB
Width
4  mm

Conductor and cable markers

Conductor cross-section, max.
6  mm²
Conductor O.D.
1.3 - 16 mm
Conductor O.D., max.
16  mm
Conductor O.D., min.
1.3  mm
Cross-section for connected wire
6 mm²
Halogen
No

Classifications

ETIM 6.0
EC001530
ETIM 7.0
EC001530
ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 9.0
27-40-04-01
ECLASS 9.1
27-40-04-01
ECLASS 10.0
27-40-04-01
ECLASS 11.0
27-28-11-02
ECLASS 12.0
27-28-11-02
ECLASS 13.0
27-28-11-02
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
