ZRH 1.5N/1

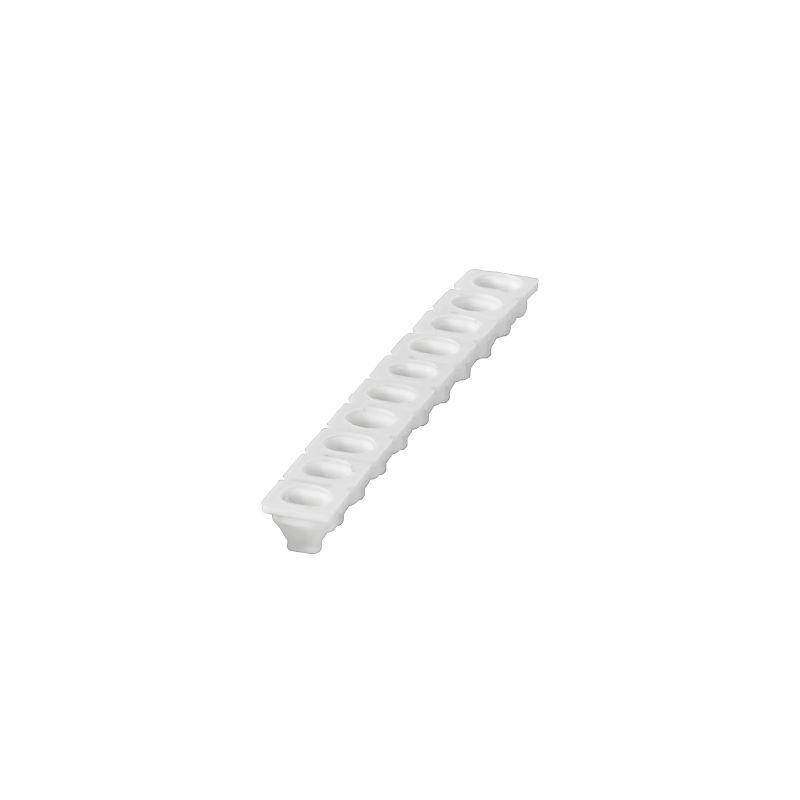

Product image

ZRH 1.5N/1

Dette produkt er snart ikke længere tilgængeligt.

Last order date: /Date(1782770400000)/

Z-series, Reducing sleeve

Produkt ID 1632140000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 22 Anvendte produkter 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Дополнительные технические данные 일반 Product images Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
Z-series, Reducing sleeve
Číslo objednávky
1632140000
Art
ZRH 1.5N/1
GTIN (EAN)
4008190487355
Qty.
1 000 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1782770400000)/

Dimensions and weights

Tiefe
3,95 mm
Depth (inches)
0,156 inch
Höhe
49,3 mm
Höhe (inch)
1,941 inch
Breite
4,85 mm
Width (inches)
0,191 inch
Net weight
0,058 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Température ambiante
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Couleur
grey
UL 94 flammability rating
V-0

System specifications

Version
For the terminals

Дополнительные технические данные

Installation advice
Direct mounting
Type of fixing
Plugged
Versión a prueba de explosivos
No

일반

Einbauhinweis
Непосредственный монтаж

Product images

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
