Özellikler

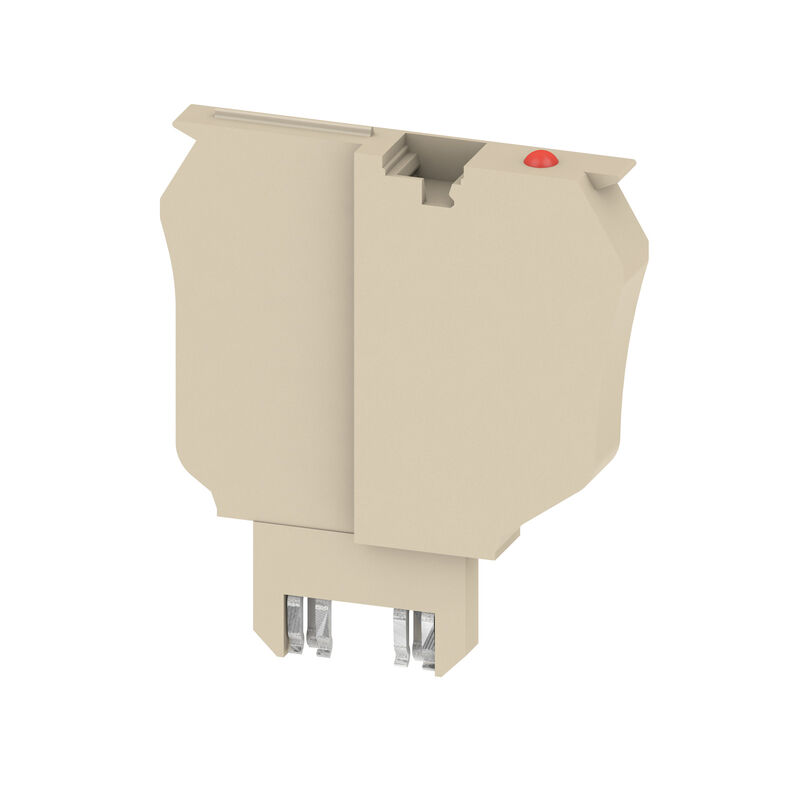

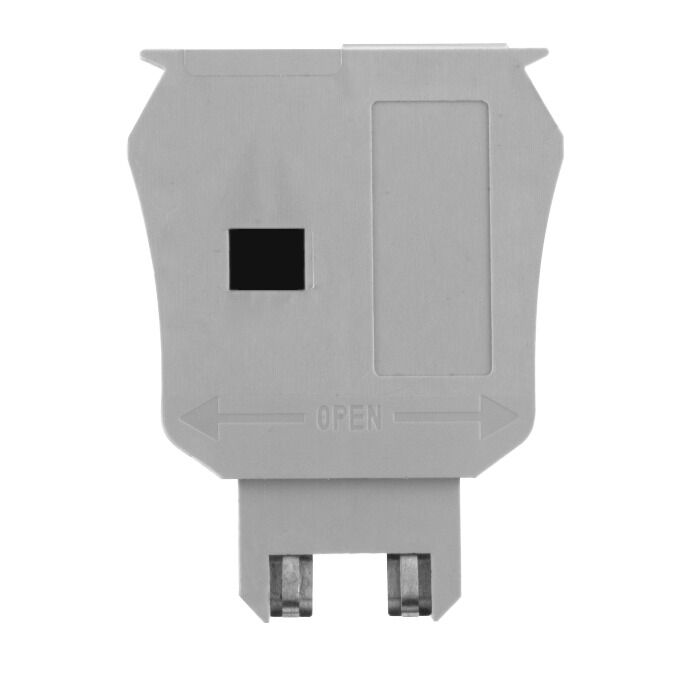

| Version | Fuse holder for feed-through modular terminal, dark beige, 2.31 A, pluggable, V-0, Wemid |
| Order No. | 9537560000 |
| Type | SIHA 1/G20 10-36V |
| GTIN (EAN) | 4008190125066 |
| Qty. | 25 adet |
| Depth | 43,93 mm |
| Depth (inches) | 1,73 inch |
| Height | 33,38 mm |
| Height (inches) | 1,314 inch |
| Width | 5,95 mm |
| Width (inches) | 0,234 inch |
| Net weight | 8,32 g |
| Operating temperature | -50 °C...120 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7cI |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Insulating material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | Fuse cartridge |
| End cover plate required | No |
| Installation advice | Direct mounting |
| Type of mounting | Plugged |
| Type of connection | Plug-in connection |
| Installation advice | Direct mounting |
| Operating temperature range, max. | 120 °C |
| Rated voltage | 250 V |
| Rated current | 6,3 A |
| Rated impulse withstand voltage | 4 kV |
| Pollution severity | 3 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66869) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9537560000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9537560000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:1039900000Ambalaj birimi:50 adet
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 16 A, 400 V, Number of connections: 4, Number of levels: 1
-
Ürün No.:1774670000Ambalaj birimi:50 adet
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 16 A, 400 V, Number of connections: 4, Number of levels: 1
-
Ürün No.:1039980000Ambalaj birimi:50 adet
Test-disconnect terminal, Screw connection, blue, 2.5 mm², 16 A, 400 V, Number of connections: 4, Number of levels: 1
Terminal BlocksUniversal rangeClamping yoke technologyW-SeriesStandardModular test-disconnect terminal blocks1-tier2.5 mm²
