RJ45G1 R1D 3.3E4G/Y TY
RJ45G1 R1D 3.3E4G/Y TY
Dimensioned drawing
RJ45G1 R1D 3.3E4G/Y TY
Dimensioned drawing
RJ45G1 R1D 3.3E4G/Y TY
Dimensioned drawing
RJ45G1 R1D 3.3E4G/Y TY
PCB design
RJ45G1 R1D 3.3E4G/Y TY
Wiring diagram
RJ45G1 R1D 3.3E4G/Y TY

RJ45G1 R1D 3.3E4G/Y TY

PCB plug-in connector, RJ45 jacks transformer, 1000 Mbps , THT/THR solder connection, 90°, Latch option: bottom, Shield tabs: 6 tabs, 30...80 µ" Ni / ≥ 30 µ" Au , LED: Yes, green, yellow, Number of poles: 10, Tray (manual assembly)

Ürün No. 2544510000
Veri sayfasını indir Engineering Support Product Downloads
Karşı parçalar 20 İlgili ürünler 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Electrical properties Material data Packing Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E471884

General ordering data

Version
PCB plug-in connector, RJ45 jacks transformer, 1000 Mbps , THT/THR solder connection, 90°, Latch option: bottom, Shield tabs: 6 tabs, 30...80 µ" Ni / ≥ 30 µ" Au , LED: Yes, green, yellow, Number of poles: 10, Tray (manual assembly)
Order No.
2544510000

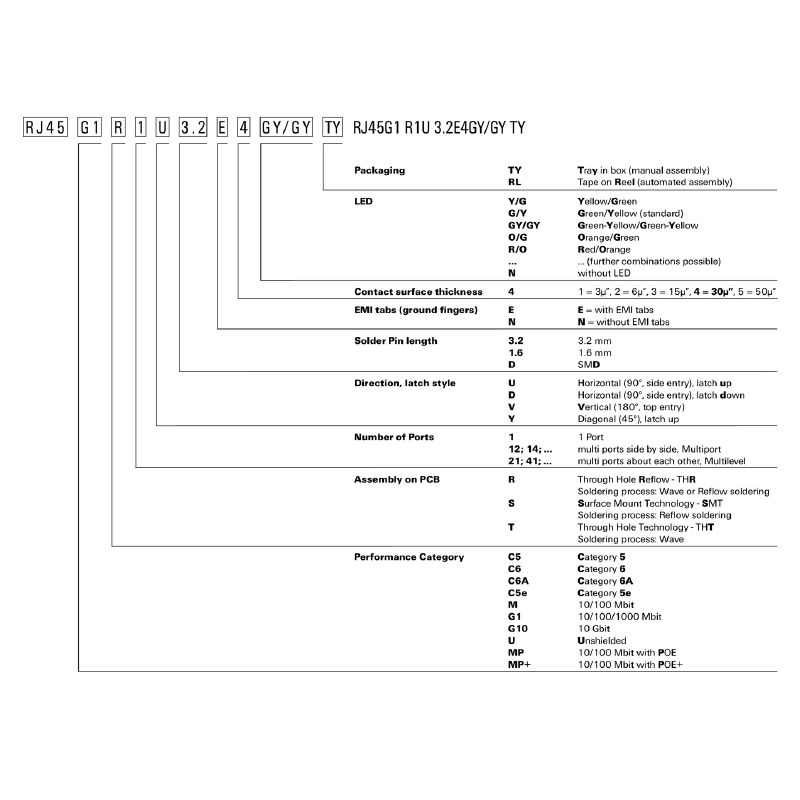

Type
RJ45G1 R1D 3.3E4G/Y TY
GTIN (EAN)
4050118554168
Qty.
120  adet
Packaging
Tray (manual assembly)

Dimensions and weights

Depth
21,35  mm
Depth (inches)
0,841  inch
Height
16,8  mm
Height (inches)
0,661  inch
Height of lowest version
13,5  mm
Width
15,9  mm
Width (inches)
0,626  inch
Net weight
4,002  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Colour of left LED
green
Colour of right LED
yellow
Forward current
20  mA
Forward voltage, max.
2,6  V
Forward voltage, min.
1,8  V
Latch option
bottom
LED
Yes
Mounting onto the PCB
THT/THR solder connection
Number of poles
10
Number of solder pins per pole
1
Outgoing elbow
90°
Performance-Category
1000 Mbps
Pitch in inches (P)
0,05  "
Pitch in mm (P)
1,27  mm
Plugging cycles
750
Product family
OMNIMATE Data - RJ45 transformer jack
Protection degree
IP20
Shield surface
nickel-plated
Shield tabs
6 tabs
Shielding
Yes
Shielding material
Brass
Solder pin dimensions
Octagonal
Solder pin length (l)
3,3  mm
Soldering process
Reflow soldering
Manual soldering
Wave soldering
Tolerance of solder pin position
± 0.15 mm
Transmission rate
1000 Mbps
Type of connection
Solder connection

Electrical properties

Dielectric strength, contact / contact
1000 V DC
Dielectric strength, contact / shield
1500 V DC
Rated current
1.5 A
Rated voltage
125  V

Material data

Insulating material
PA 9T
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 500
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Phosphorus bronze
Contact material
Cu-alloy
Contact surface
Gold over nickel
Layer structure of plug contact
30...80 µ" Ni / ≥ 30 µ" Au
Storage temperature, min.
-40  °C
Storage temperature, max.
85  °C
Operating temperature, min.
-40  °C
Operating temperature, max.
85  °C

Packing

Packaging
Tray (manual assembly)
VPE length
315  mm
VPE width
193  mm
VPE height
69  mm

Classifications

ETIM 6.0
EC002637
ETIM 7.0
EC002637
ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 9.1
27-44-04-02
ECLASS 10.0
27-44-04-02
ECLASS 11.0
27-46-02-01
ECLASS 12.0
27-46-02-01
ECLASS 13.0
27-46-02-01
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
