S2L 3.50/32/90F 3.5SN OR BX

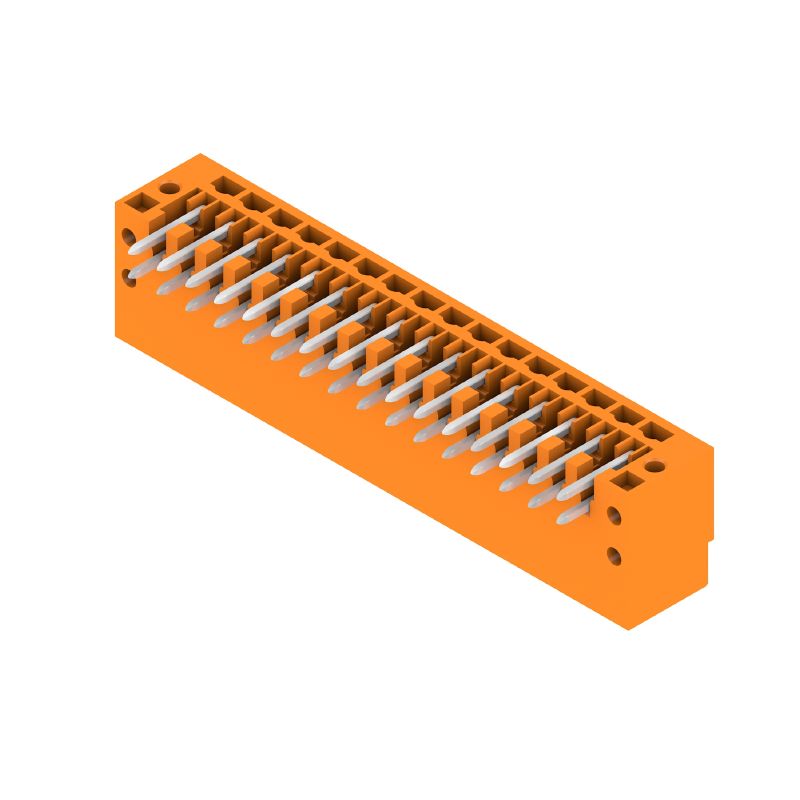

Product image
S2L 3.50/32/90F 3.5SN OR BX

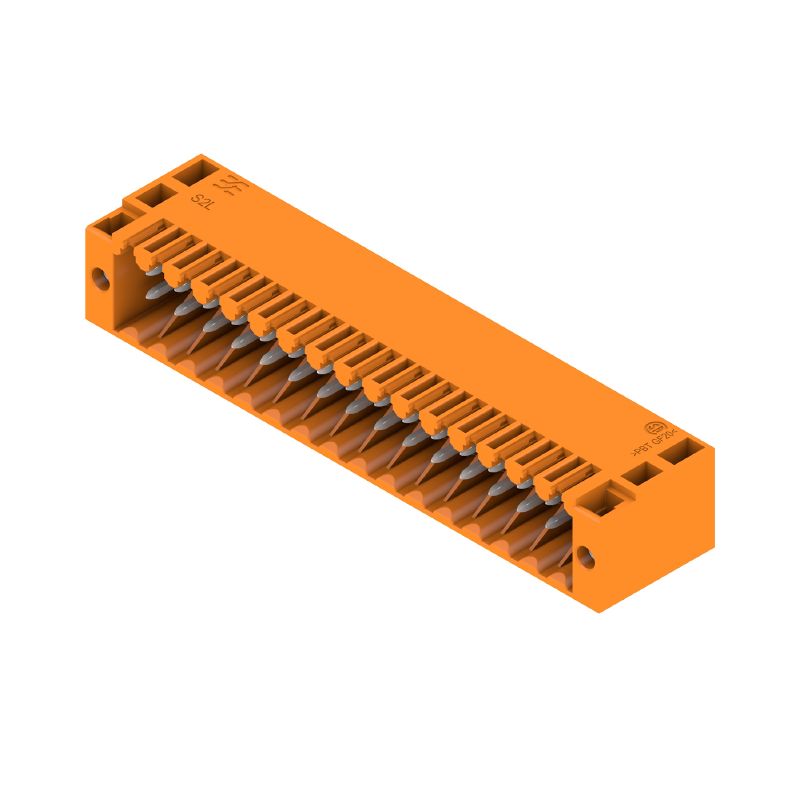

Product image
S2L 3.50/32/90F 3.5SN OR BX
Dimensional drawing

S2L 3.50/32/90F 3.5SN OR BX

PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 32, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Box

Item No. 1728600000
Download data sheet Engineering Support Product Downloads
Accessories 4 Is counterpart of 2 Related products 33
Approvals General ordering data Dimensions and weights Environmental Product Compliance Specyfikacje systemu Dane materiałowe Rated data acc. to IEC Dane znamionowe wg CSA Rated data acc. to UL 1059 Opakowanie Ważna informacja Klassificeringar

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(UR)
E60693

General ordering data

버전
PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 32, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Box
주문 번호
1728600000
유형
S2L 3.50/32/90F 3.5SN OR BX
GTIN(EAN)
4032248040063
수량
24 items
Product data
IEC: 250 V / 10 A
UL: 150 V / 10 A
Packaging
Box

Dimensions and weights

깊이
14.2 mm
깊이 (인치)
0.559 inch
높이
14 mm
Высота (в дюймах)
0.551 inch
Höjd lägstbyggande
10.5 mm
너비
63 mm
Width (inches)
2.48 inch
순중량
8.83 g

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Specyfikacje systemu

제품군
OMNIMATE Signal - seria B2L/S2L 3.50 - 2-rzędowe
결선 유형
Соединение с платой
PCB에 장착
THT solder connection
피치(mm)(P)
3.5 mm
피치(인치)(P)
0.138 "
외향 엘보
90°
Number of poles
32
Number of solder pins per pole
1
솔더 핀 길이(l)
3.5 mm
솔더핀 크기
d = 1.0 mm
Octagonal
솔더 구멍 직경(D)
1.3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
52.5 mm
L1 in inches
2.067 "
Number of rows
1
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Can be coded
Yes
Plugging force/pole, max.
5 N
Pulling force/pole, max.
4 N
Tightening torque
  • Torque type:
    Mounting screw, PCB
  • Usage information:
    • Tightening torque:
      • min.:
        0.1 Nm
      • max.:
        0.15 Nm
    • Recommended screw:
      • Part number:
        1610740000

Dane materiałowe

절연재
PBT
컬러 코드
оранжевый
컬러 차트(유사)
RAL 2000
절연재 그룹
IIIa
CTI(Comparative Tracking Index, 비교 추적 지수)
≥ 200
UL 94 flammability rating
V-0
접점 재질
Cu-alloy
접점 표면
tinned
Layer structure of solder connection
2...3 µm Ni / 5...7 µm Sn glossy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
정격 전류, 극 수(Tu=20°C)
10 A
정격 전류, 최대 극 수(Tu=20°C)
10 A
정격 전류, 극 수(Tu=40°C)
9 A
정격 전류, 최대 극 수(Tu=40°C)
8.5 A
서지 전압 클래스 정격 전압 / 오염 등급 II/2
250 V
서지 전압 클래스 정격 전압 / 오염 등급 III/2
125 V
서지 전압 클래스 정격 전압 / 오염 등급 III/3
80 V
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 II/2
2.5 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/2
2.5 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/3
2.5 kV
단시간 내전류 저항
3 x 1s with 77 A

Dane znamionowe wg CSA

협회(CSA)
CSA
인증 번호(CSA)
200039-1488444
정격 전압(사용 그룹 B / CSA)
150 V
정격 전류(사용 그룹 B / CSA)
5 A
승인값 참조
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

협회(UR)
UR
인증 번호(UR)
E60693
정격 전압(사용 그룹 B / UL 1059)
150 V
정격 전압(사용 그룹 C / UL 1059)
50 V
정격 전류(사용 그룹 B / UL 1059)
10 A
정격 전류(사용 그룹 C / UL 1059)
10 A
승인값 참조
Specifications are maximum values, details - see approval certificate.

Opakowanie

패키징
skrzynia
VPE 길이
351 mm
VPE 폭
135 mm
VPE 높이
25 mm

Ważna informacja

IPC 준수
Zgodność: produkty są projektowane, wytwarzane oraz dostarczane zgodnie z uznanymi normami międzynarodowymi, właściwości produktów są zgodne z gwarantowanymi w karcie katalogowej lub ich jakość wykonania jest zgodna z wymogami klasy 2 wg IPC-A-610. Na życzenie mogą być ocenione dalsze wymagania dotyczące produktów.
참고 사항
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Spacing between rows: see hole layout
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.3+0.1 mm
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • For additional mechanical support for male connectors with screw flange (…F), we recommend an additional cable gland with fastening screws (sheet metal screw ISO 1481-ST 2.2x4.5 C or ISO 7049-ST 2.2x4.5 C – see Accessories). Cable gland only permitted before soldering.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Klassificeringar

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
