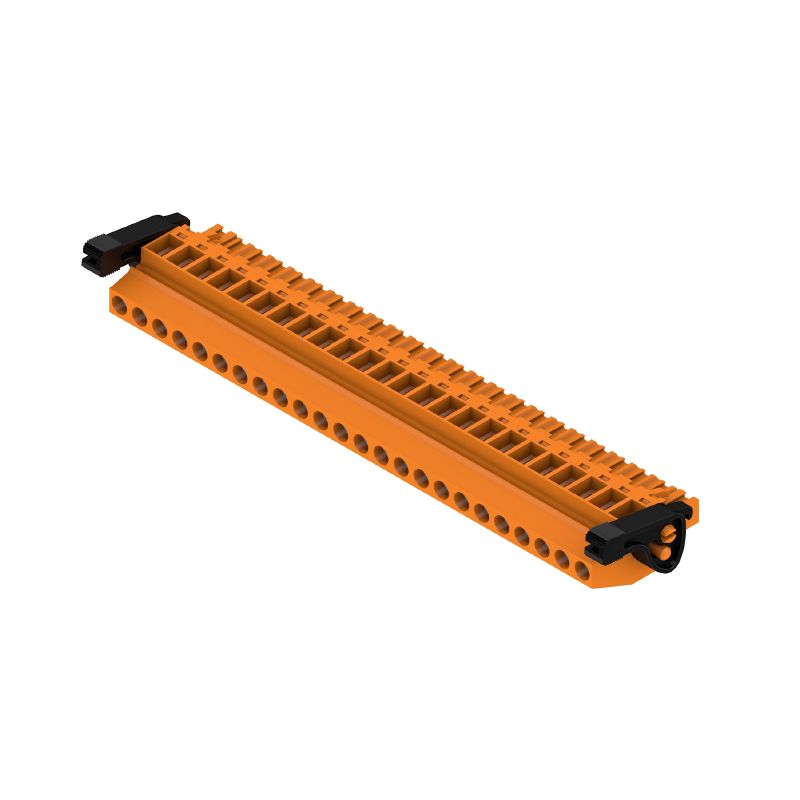

Product image
BLZP 5.08HC/24/90LR SN OR BX
Product image
BLZP 5.08HC/24/90LR SN OR BX
Dimensional drawing
BLZP 5.08HC/24/90LR SN OR BX
Product benefits
Product benefits
BLZP 5.08HC/24/90LR SN OR BX
Product benefits
Gentle unlocking
Low mechanical stress

BLZP 5.08HC/24/90LR SN OR BX

Dette produkt er ikke længere tilgængeligt.

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 24, 90°, Clamping yoke connection, Clamping range, max. : 4 mm², Box

Produkt ID 1087470000
Download datablad Engineering-support Produktdownloads
Tilbehør 6 Modstykker 9 Anvendte produkter 14
Omologazioni General ordering data Dimensioni e pesi Environmental Product Compliance Parametry systemu 자재 데이터 결선에 적합한 컨덕터 Dati di dimensionamento secondo IEC Dati di dimensionamento secondo CSA Rated data acc. to UL 1059 Opakowanie Type tests Important note Classifications

Omologazioni

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 5.08 mm, Number of poles: 24, 90°, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Order No.
1087470000
Type
BLZP 5.08HC/24/90LR SN OR BX
GTIN (EAN)
4032248854332
Qty.
12 Styk
Product data
IEC: 400 V / 23 A / 0.2 - 4 mm²
UL: 300 V / 20 A / AWG 26 - AWG 12
Packaging
Box
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1793401200000)/

Dimensioni e pesi

Depth
29,5 mm
Depth (inches)
1,161 inch
Height
17,7 mm
Height (inches)
0,697 inch
Width
131,74 mm
Width (inches)
5,187 inch
Net weight
45,35 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.568 kg CO2 eq.

Parametry systemu

Product family
OMNIMATE Signal – serie BL/SL 5.08
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Conductor outlet direction
90°
Number of poles
24
L1 in mm
116,84 mm
L1 in inches
4,6 "
Number of rows
1
Pin series quantity
1
Rated cross-section
4 mm²
Protección contra contacto según DIN VDE 57106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Longitud de desaislado
7 mm
Clamping screw
M 2.5
Screwdriver blade
0.6 x 3.5
PH 1
PZ 1
Screwdriver blade standard
DIN 5264
ISO 8764/2-PH
ISO 8764/2-PZ
Plugging cycles
25
Plugging force/pole, max.
10 N
Pulling force/pole, max.
9 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm

자재 데이터

Isolierstoff
PBT
Colour
orange
Barevný graf (podobné)
RAL 2000
Insulating material group
IIIa
Kriechstromfestigkeit (CTI)
≥ 200
UL 94 flammability rating
V-0
Kontaktmaterial
Cu-alloy
Kontaktoberfläche
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

결선에 적합한 컨덕터

Klemmbereich, min.
0,13 mm²
Clamping range, max.
4 mm²
Leiteranschlussquerschnitt AWG, min.
AWG 30
Leiteranschlussquerschnitt AWG, max.
AWG 12
eindrähtig, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
4 mm²
feindrähtig, min. H05(07) V-K
0,2 mm²
feindrähtig, max. H05(07) V-K
4 mm²
mit AEH mit Kragen DIN 46 228/4, min.
0,2 mm²
mit AEH mit Kragen DIN 46 228/4, max.
2,5 mm²
mit Aderendhülse nach DIN 46 228/1, min.
0,2 mm²
mit Aderendhülse nach DIN 46 228/1, max.
4 mm²
Calibre macho de conformidad con la norma EN 60999 a x b; ø
2.8 mm x 2.4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0373000000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9019160000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Dati di dimensionamento secondo IEC

Bemessungsstrom, min. Polzahl (Tu=20°C)
23 A
Bemessungsstrom, max. Polzahl (Tu=20°C)
18 A
Jmenovitý proud, min. počet pólů (Tu=40 °C)
21 A
Rated current, max. number of poles (Tu=40°C)
16 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
400 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/2
320 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/3
250 V
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad II/2
4 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/2
4 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/3
4 kV
Kurzzeitstromfestigkeit
3 x 1s with 120 A

Dati di dimensionamento secondo CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group D / CSA)
20 A
Wire cross-section, AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Opakowanie

Packaging
skrzynia
VPE length
348 mm
VPE width
134 mm
VPE height
30 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, rated voltage, rated cross-section, type of material
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    DIN EN 60512-13-5 / 11.06, IEC 60512-13-5 / 02.06
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥60 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U4.0
    • Type of conductor and conductor cross-section:
      H07V-K4.0
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
