Ominaisuudet

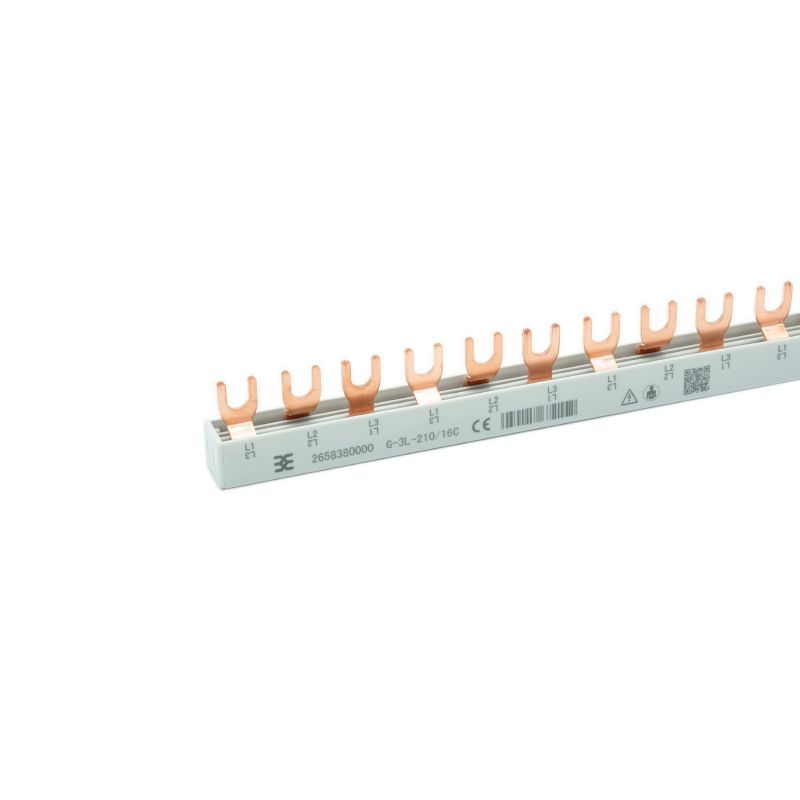

| Version | Cross-connector (terminal), Number of poles: 12, Pitch in mm (P): 17.80, 80 A, grey |
| Order No. | 2658380000 |
| Type | G-3L-210/16 C |
| GTIN (EAN) | 4050118672145 |
| Qty. | 20 items |
| Depth | 15,4 mm |
| Depth (inches) | 0,606 inch |
| Height | 31 mm |
| Height (inches) | 1,22 inch |
| Width | 210 mm |
| Width (inches) | 8,268 inch |
| Net weight | 30,1 g |
| Colour | grey |
| Pitch in mm (P) | 17,8 mm |
| Number of poles | 12 |
| Rated cross-section | 16 mm² |
| Rated current | 80 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165173) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| Approvals |  |
| ROHS | Conform |
