Properties
| Version | Wire-end ferrule, Standard, 14 mm, 12 mm, blue |
| Order No. | 9019170000 |
| Type | H2,5/19D BL |
| GTIN (EAN) | 4008190178024 |
| Qty. | 500 items |
| Packaging | loose |
| Net weight | 0.18 g |

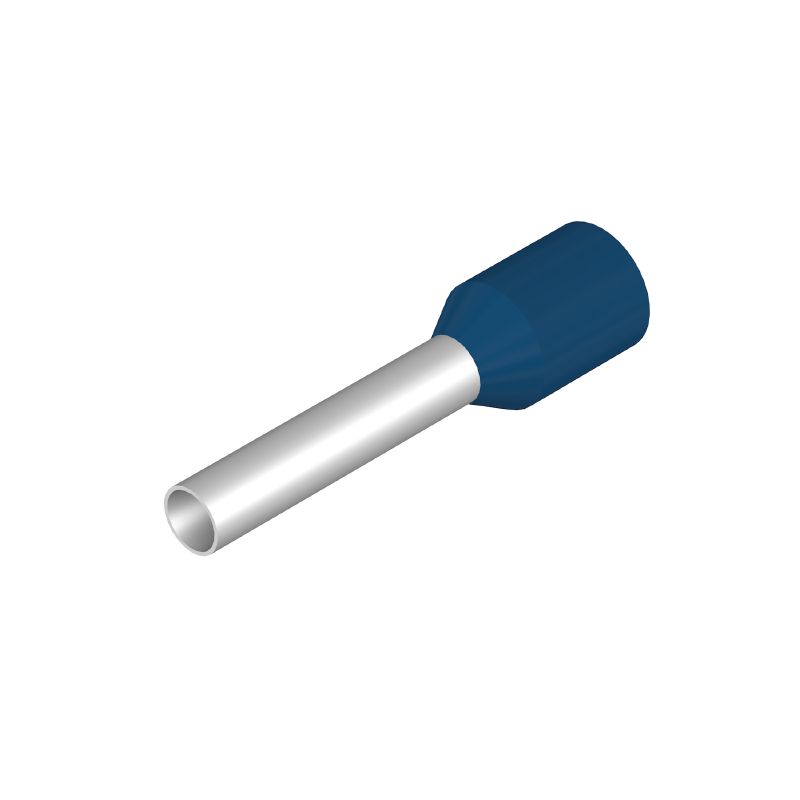

| Description of article | Wire end ferrule with plastic collar, blue |
| Version | Standard |
| Collar diameter (D2) | 4.2 mm |
| Colour code | DIN |
| Conductor cross-section | 2.5 mm² |
| Contact surface diameter (D1) | 2.2 mm |
| Contact surface length (L2) | 12 mm |
| L1 in mm | 19 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Military designation | T 20A 017 A |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 14 mm |
| Wire connection cross section AWG, max. | AWG 14 |
