KLIPPON K61
KLIPPON K61

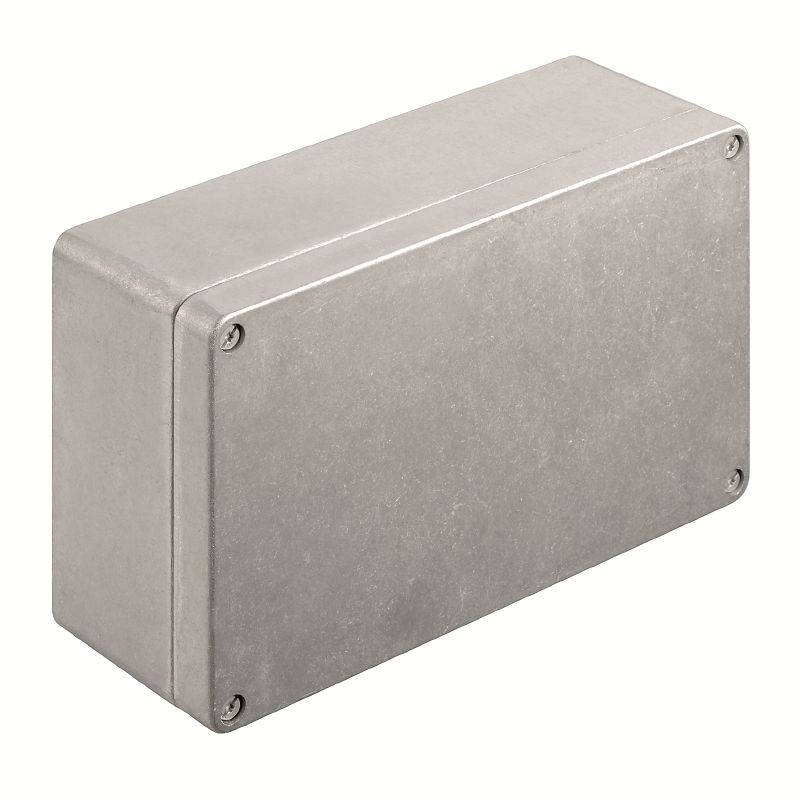

Similar to illustration
KLIPPON K61
Dimensioned drawing

KLIPPON K61

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 260 mm, Depth: 91 mm, Basic material: Aluminium AlSi12, untreated, silver

Tuotteen tunnus 0573600000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 9 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Cable glands, right Cable glands, top/bottom Números de certificación de cajas Caractéristiques générales horizontal assembly vertical assembly Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E197061

General ordering data

Version
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 260 mm, Depth: 91 mm, Basic material: Aluminium AlSi12, untreated, silver
Order No.
0573600000
Type
KLIPPON K61
GTIN (EAN)
4008190126919
Qty.
1 items

Dimensions and weights

Depth
91 mm
Depth (inches)
3,583 inch
Height
160 mm
Height (inches)
6,299 inch
Width
260 mm
Width (inches)
10,236 inch
Mounting dimension - height
110 mm
Mounting dimension - width
240 mm
Net weight
1 989 g

Temperatures

Operating temperature
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, left

M12
8
M16
6
M20
3
M25
2
M32
1
M40
1

Cable glands, right

M12
8
M16
6
M20
3
M25
2
M32
1
M40
1

Cable glands, top/bottom

M12
27
M16
23
M20
13
M25
8
M32
4
M40
3

Números de certificación de cajas

Approval conditions
cULus
RMRS
DNV
Certificate no. (cULus)
E197061
Certificate No. (DNV)
TAE00002SM
Declaration of Conformatiy No. (DoC LVD)
DE PS2410 160412 001ISS03

Caractéristiques générales

Areas of use
Folyamatirányítás
Közlekedéstechnika
Tengerészeti mérnökség
Csomagolóipar
Kikötői berendezések
Gépgyártás
Basic material
alluminio AlSi12
Enclosure attachment
Hål 6 mm
Impact resistance
10 J version standard
Integral fixing
Threaded holes M5
Lid
Yes
Lid attachment
M6 torx stainless steel screws with slot
Material thickness of cover
4 mm
Material thickness of enclosure
4,5 mm
Max. užitečné zatížení
4,16 kg
Operating temperature, max.
80 °C
Operating temperature, min.
−40 °C
Poznámka: třída ochrany
IP68 (t=72h, h=1m)
Protection degree
IP66
IP67
IP68
Přírubová deska
No
Přístupové otevírání: šířka
251 mm
Seal material
Chloroprene
Standards
EN 45545-2:2013
Stupeň krytí (UL)
Type 4
Type 4X
Surface finish
untreated
Torque for lid screws
2,5 Nm
Víko - počet šroubů
4
Zugangsöffnung Höhe
151 mm

horizontal assembly

Number of DIN rails and terminals (10 mm², horizontal)
1x20
WDU 16 / ZDU 16
1x16
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x39
WDU 4 / ZDU 4
1x33
WDU 6 / ZDU 6
1x24

vertical assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5
*
WDU 4 / ZDU 4
*

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
