KLIPPON STB 3 SS E

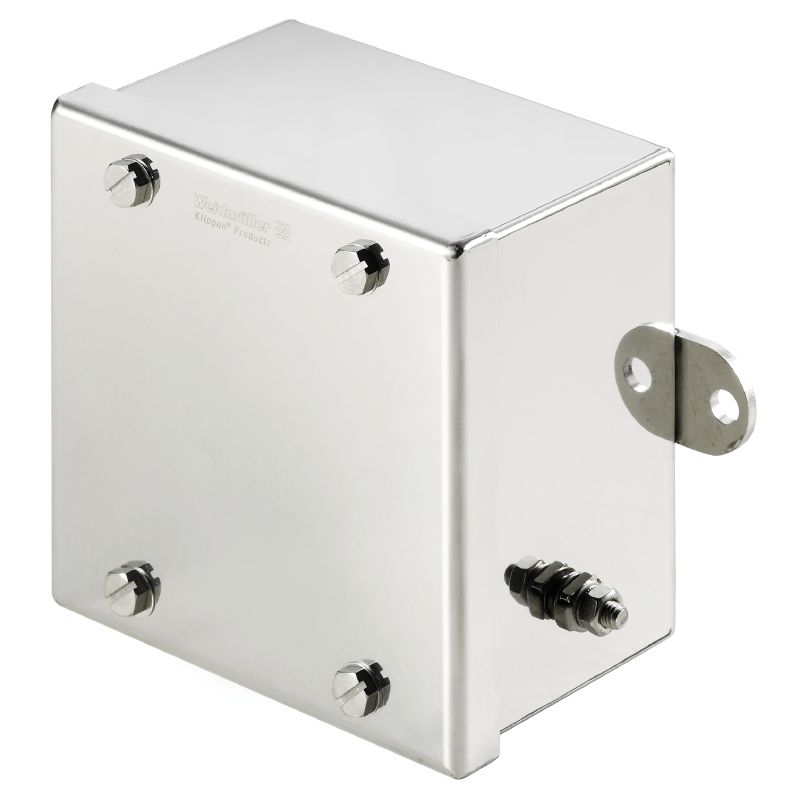

Similar to illustration
Abbildung ähnlich
KLIPPON STB 3 SS E
Dimensioned drawing

KLIPPON STB 3 SS E

Klippon STB (Small Terminal Box), Empty enclosure, stainless steel enclosure, Height: 190 mm, Width: 190 mm, Depth: 100 mm, Material: Stainless steel 1.4404 (316L), electropolished, silver

Tuotteen tunnus 1058850000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 6 Samankaltaiset tuotteet 16
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Cable glands, right Cable glands, top/bottom Certificate numbers enclosure General information Housing earth vertical assembly Important note Classifications Approvals

General ordering data

Version
Klippon STB (Small Terminal Box), Empty enclosure, stainless steel enclosure, Height: 190 mm, Width: 190 mm, Depth: 100 mm, Material: Stainless steel 1.4404 (316L), electropolished, silver
Order No.
1058850000
Type
KLIPPON STB 3 SS E
GTIN (EAN)
4032248800728
Qty.
1  items

Dimensions and weights

Depth
100  mm
Depth (inches)
3,937  inch
Height
190  mm
Height (inches)
7,48  inch
Width
190  mm
Width (inches)
7,48  inch
Mounting dimension - width
215  mm
Net weight
2 407  g

Temperatures

Operating temperature
-60 °C...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, left

M12
21
M16
15
M20
10
M25
8
M32
3
M40
3
M50
2
M63
1

Cable glands, right

M12
21
M16
15
M20
8
M25
6
M32
3
M40
2
M50
1

Cable glands, top/bottom

M12
21
M16
15
M20
10
M25
8
M32
3
M40
3
M50
2
M63
1

Certificate numbers enclosure

Approval conditions
ATEX
DNV
CCC
IECEX
INMETRO
LR
RMRS
UL AEx Class Div.
UL AEx Class Zone
cULus
KC
Attestation of Conformatiy No. (AoC)
DE PS2620 160308 001ISS04
Certificate No. (ATEX)
IBEXU07ATEX1147U
Certificate no. (cULus)
E256877
Certificate No. (IECEX)
IECEXIBE09.0018U
Certificate no. (INMETRO)
IEX13.0002U
Certificate No. (LLOYDSREG)
LR23307703TA
Certificate no. empty enclosure (ATEX)
IBExU 07ATEX1147U
Certificate no. empty enclosure (IECEx)
IECEx IBE 09.0018U
Certificate no. empty enclosure (INMETRO)
LMP 21.0015U
Certificate no. Terminal Box (AEx)
E223792
Certificate no. Terminal Box (ATEX)
IBExU07ATEX1148
Certificate no. Terminal Box (IECEx)
IECEx IBE 09.0019
Certificate no. Terminal Box (INMETRO)
LMP 21.0018
Certificate no. Terminal Box (KOSHA)
16-AV4BO-0247X
Declaration of Conformatiy No. (DoC LVD)
DE PS2620 160412 001ISS02

General information

Access opening: height
170  mm
Access opening: width
172  mm
Areas of use
Explosive risk zone
Packaging industry
Transportation
Process industry
Marine engineering
Enclosure attachment
Welded-on mounting foot with 8-mm holes
Flange plate
No
Impact resistance
10 J version standard
7 J ATEX version
Integral fixing
TAS 20 rail welded to floor
Lid
Yes
Lid attachment
M5 hexagonal screw with slot and 10mm distance across flats
Material
Stainless steel 1.4404 (316L)
Material thickness of cover
1,5  mm
Material thickness of enclosure
1,5  mm
Number of lid screws
4
Operating temperature, max.
100  °C
Operating temperature, min.
−60  °C
Protection class (UL)
Type 4
Type 4X
Protection degree
IP66
Seal material
Silicone
Surface finish
electropolished
Torque for lid screws
2,5  Nm

Housing earth

Cross-section , max.
25  mm²
Earth, enclosure, cover
Welded-on M6 x 10 stainless-steel earth stud
Earth, enclosure, external
Welded-on M6 x 16 stainless-steel bolts
Earth, enclosure, internal
Welded-on M6 x 16 stainless-steel bolts

vertical assembly

WDU 10 / ZDU 10
1x15
WDU 16 / ZDU 16
1x13
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x30
WDU 4 / ZDU 4
1x25
WDU 6 / ZDU 6
1x20

Important note

Product information
The ambient temperature for the assembly will be reduced to +60°C and the surface temperature to +100°C.

Classifications

ETIM 6.0
EC002503
ETIM 7.0
EC002503
ETIM 8.0
EC002503
ETIM 9.0
EC002503
ETIM 10.0
EC002503
ECLASS 9.0
27-18-05-02
ECLASS 9.1
27-18-05-02
ECLASS 10.0
27-18-05-02
ECLASS 11.0
27-18-05-02
ECLASS 12.0
27-18-05-02
ECLASS 13.0
27-18-05-02
ECLASS 14.0
27-18-05-02
ECLASS 15.0
27-18-05-02

Approvals

Approvals
