Ominaisuudet
| Version | Electronics housings, Mounting flange, Accessories |
| Order No. | 1168970000 |

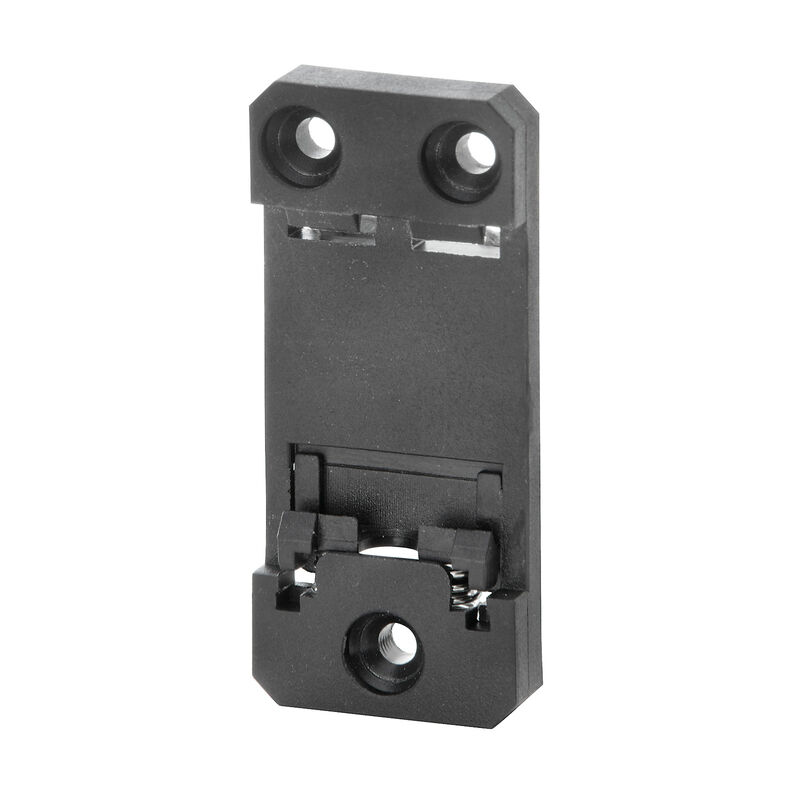

| Type | MTA 30 BK |
| GTIN (EAN) | 4032248960965 |
| Qty. | 45 items |
| Depth | 8 mm |
| Depth (inches) | 0,315 inch |
| Height | 67 mm |
| Height (inches) | 2,638 inch |
| Width | 30 mm |
| Width (inches) | 1,181 inch |
| Length | 68 mm |
| Length (inches) | 2,677 inch |
| Net weight | 20,089 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Weight | 21,58 g |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60675) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1168970000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1168970000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 6.0 | EC002625 |
| ETIM 7.0 | EC002625 |
| ETIM 8.0 | EC002625 |
| ETIM 9.0 | EC002625 |
| ECLASS 9.0 | 27-18-28-07 |
| ECLASS 9.1 | 27-04-92-90 |
| ECLASS 10.0 | 27-18-28-07 |
| ECLASS 11.0 | 27-18-28-07 |
| ECLASS 12.0 | 27-18-28-07 |
| ECLASS 13.0 | 27-18-28-07 |
| ECLASS 14.0 | 27-18-28-07 |
| ROHS | Conform |
