Ominaisuudet

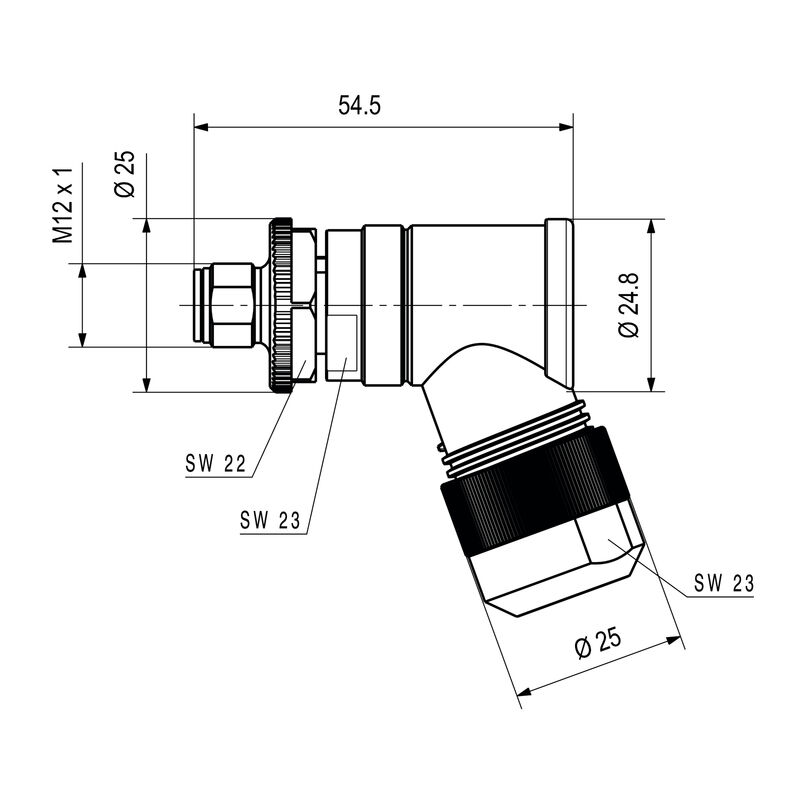

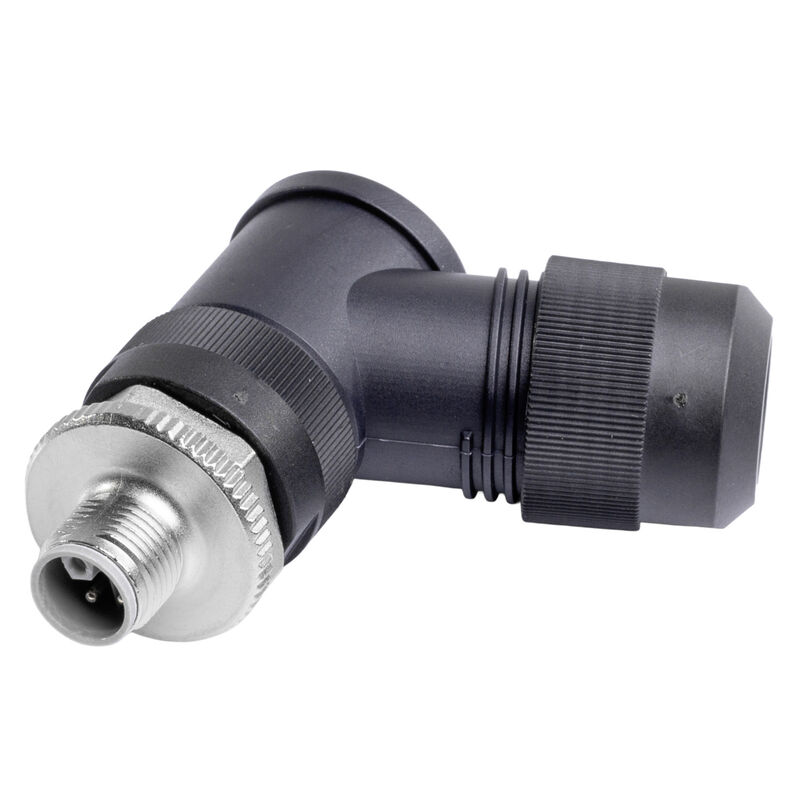

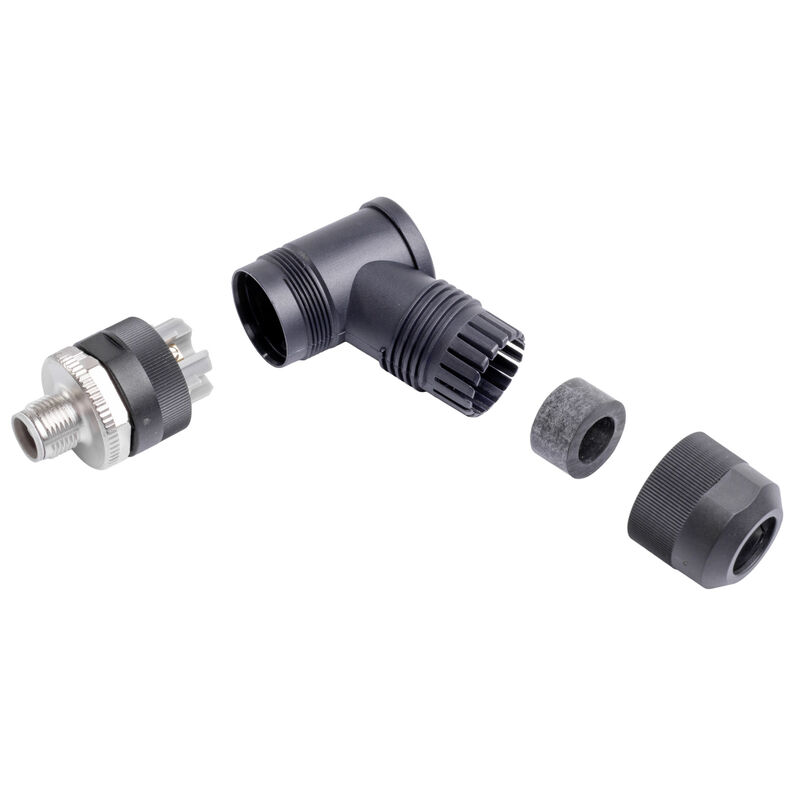

| Version | Field attachable connector, M12 |
| Order No. | 2768330000 |
| Type | SAISW-4+FE/8-13-L-COD |
| GTIN (EAN) | 4064675042877 |
| Qty. | 1 items |
| Net weight | 60 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Cable diameter, max. | 13 mm |
| Cable diameter, min. | 8 mm |
| Coding | L-coded |
| Connection cross-section, max. | 2,5 mm² |
| Contact material | CuZn |
| Contact surface | Au (Gold) |
| Gender of contact | Male |
| Housing main material | PA |
| Number of poles | 5 |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 16 A |
| Rated voltage | 63 V |
| Temperature range of housing | -40 … +85 ° C |
| Threaded ring material | Diecast zinc |
| Type of connection | Screw connection |
| Number of poles | 5 |
| Connection 1 | M12 |
| Connection 2 | Screw |
| Housing main material | PA |
| Connection thread | M12 |
| Contact material | CuZn |
| Contact surface | Au (Gold) |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Protection degree | IP67 |
| Plugging cycles | ≥ 100 |
| Connector standard | IEC 61076-2-101 |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate No. (cURus) | E307231 |
