SAMPLE CH20M45 33/33

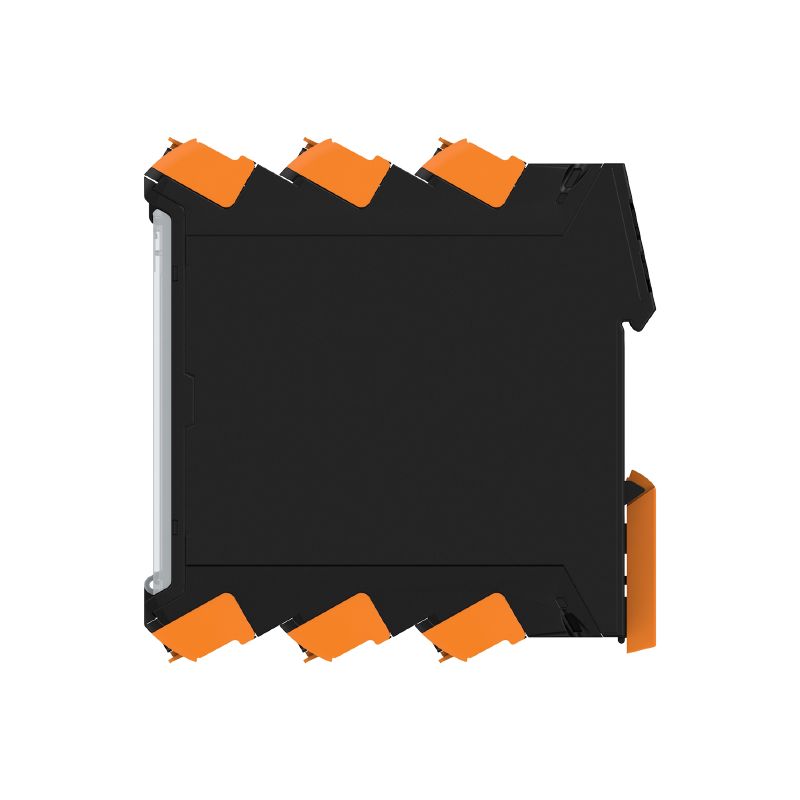

Electronics housing sample, OMNIMATE Housing - series CH20M black, Sample kit for developers, consisting of individual parts incl. female plug, Complete enclosure, Connection technology, Width: 45 mm
Ominaisuudet
| Version | Electronics housing sample, OMNIMATE Housing - series CH20M black, Sample kit for developers, consisting of individual parts incl. female plug, Complete enclosure, Connection technology, Width: 45 mm |
| Order No. | 1519520000 |
| Type | SAMPLE CH20M45 33/33 |
| GTIN (EAN) | 4050118327212 |
| Qty. | 1 items |
| Depth | 113,6 mm |
| Depth (inches) | 4,472 inch |
| Height | 117,2 mm |
| Height (inches) | 4,614 inch |
| Width | 45 mm |
| Width (inches) | 1,772 inch |
| Length | 113,6 mm |
| Length (inches) | 4,472 inch |
| Net weight | 236 g |
| Installation temperature | -25 °C...85 °C |
| Humidity | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated current, max. number of poles (Tu=20°C) | 10 A |
| Rated current, max. number of poles (Tu=40°C) | 9 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Comparative Tracking Index (CTI) | 400 ≤ CTI <600 |
| Insulating material | PA 66 GF 30 |
| Insulating material group | II |
| Material | Plastic |
| Surface finish | untreated |
| UL 94 flammability rating | V-0 |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Rail | TS 35 |
| PCB thickness | 1,6 mm |
| Tolerance for the PCB shape | ±0.1 mm |
| Tolerance of circuit board thickness | ±0.15 mm |
| Number of connection levels | 3 |
| Number of ventilation openings | 0 |
| Number of poles | 4 |
| Cross-connection | No |
| Type of contact to PCB | Solder connection, direct |
| Type of connection | pluggable |
| Flip cover mountable | Yes |
| Marker integrateable | Yes |
| Cut out as preperation for functional port integrated | No |
| Color of clip-on foot | orange |
| Cross-connection | No |
| Number of connection levels | 3 |
| Number of poles | 4 |
| Wire connection method | Clamping yoke connection |
| Stripping length | 8 mm |
| Tightening torque, min. | 0,4 Nm |
| Tightening torque, max. | 0,5 Nm |
| Clamping range, min. | 0,13 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Solid, min. H05(07) V-U | 0,2 mm² |
| Solid, max. H05(07) V-U | 2,5 mm² |
| Stranded, max. H07V-R | 2,5 mm² |
| Flexible, min. H05(07) V-K | 0,2 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0,25 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 2,5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0,25 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 2,5 mm² |
| Max. clamping range | 2,5 mm² |
| Engineering Data |
[CAD data -- PCB_position_50882_LP-POSITION_45MM](https://mdcop.weidmueller.com/mediadelivery/asset/900_188762)
[CAD data -- Pin_header_pin_length_CH20M_A_OV_PCB-SHL_70315](https://mdcop.weidmueller.com/mediadelivery/asset/900_188765) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_199723) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1519520000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-05-01 |
| ECLASS 14.0 | 27-19-01-01 |
| ROHS | Conform |
Lisävarusteet
-
Tuotteen tunnus:1069380000VPE:78 items
PCB plug-in connector Blue release lever cod. 02
-
Tuotteen tunnus:1063280000VPE:78 items
PCB plug-in connector Orange release lever cod. 02
-
Tuotteen tunnus:1372520000VPE:78 items
PCB plug-in connector BHZ 5.00/04/90LH SN GGY/GGY BX cod. 02
-
Tuotteen tunnus:1372580000VPE:78 items
PCB plug-in connector Blue release lever BHZ 5.00/04/90LH SN GGY/BL BX cod. 02
-
Tuotteen tunnus:1421750000VPE:78 items
PCB plug-in connector BHZ 5.00/04/90LH SN BK/GGY BX cod. 02
-
Tuotteen tunnus:1069350000VPE:78 items
PCB plug-in connector Black release lever cod. 02
-
Tuotteen tunnus:1063150000VPE:108 items
PCB plug-in connector, Connection element, right, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box
-
Tuotteen tunnus:1063180000VPE:130 items
PCB plug-in connector, Connection element, right, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 1.5 mm, tinned, black, Tape
-
Tuotteen tunnus:1069570000VPE:108 items
PCB plug-in connector, Connection element, right, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 4.2 mm, tinned, black, Box
-
Tuotteen tunnus:1069610000VPE:130 items
PCB plug-in connector, Connection element, right, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 4.2 mm, tinned, black, Tape
-
Tuotteen tunnus:1069810000VPE:130 items
PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 5.9 mm, tinned, black, Tape
-
Tuotteen tunnus:1069770000VPE:108 items
PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 5.9 mm, tinned, black, Box
-
Tuotteen tunnus:1069710000VPE:108 items
PCB plug-in connector, Connection element, right, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 5.9 mm, tinned, black, Box
-
Tuotteen tunnus:1069740000VPE:130 items
PCB plug-in connector, Connection element, right, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 5.9 mm, tinned, black, Tape
-
Tuotteen tunnus:1497500000VPE:78 items
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 4, 180°, PUSH IN with actuator, Box
-
Tuotteen tunnus:1989090000VPE:78 items
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 4, 180°, PUSH IN with actuator, Box
-
Tuotteen tunnus:1989190000VPE:78 items
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 4, 180°, PUSH IN with actuator, Box
-
Tuotteen tunnus:1063220000VPE:108 items
PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box
-
Tuotteen tunnus:1069640000VPE:108 items
PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 4.2 mm, tinned, black, Box
-
Tuotteen tunnus:1063250000VPE:130 items
PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 1.5 mm, tinned, black, Tape
-
Tuotteen tunnus:1069670000VPE:130 items
PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 4.2 mm, tinned, black, Tape
-
Tuotteen tunnus:1038860000VPE:1 items
ESG, Device markers x 13.5 mm, PA 66, Colour: To customer specification
-
Tuotteen tunnus:1082540000VPE:200 items
ESG, Device markers x 20 mm, PA 66, Colour: white
-
Tuotteen tunnus:1432890000VPE:50 items
Hood, OMNIMATE Housing - series CH20M Light Grey, Side element cover, Width: 22.5 mm
-
Tuotteen tunnus:1221310000VPE:50 items
Hood, OMNIMATE Housing - series CH20M black, Side element cover, Width: 22.5 mm
-
Tuotteen tunnus:1413740000VPE:50 items
Hood, OMNIMATE Housing - series CH20M Graphite grey, Side element cover, Width: 22.5 mm
-
Tuotteen tunnus:1472830000VPE:50 items
Hood, OMNIMATE Housing - series CH20M Agate grey, Side element cover, Width: 22.5 mm
-
Tuotteen tunnus:1221520000VPE:40 items
ESG, Device markers x 20 mm, PA 66, Colour: To customer specification
-
Tuotteen tunnus:1912130000VPE:5 items
ESG, Device markers x 13.5 mm, PA 66, Colour: Transparent
Yksittäiset osat
-
Tuotteen tunnus:1104420000VPE:30 items
Front element, OMNIMATE Housing - series CH20M black, Front element, including preperation for flip cover, Width: 45 mm
-
Tuotteen tunnus:1069710000VPE:108 items
PCB plug-in connector, Connection element, right, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 5.9 mm, tinned, black, Box
-
Tuotteen tunnus:1137730000VPE:6 items
Side element, OMNIMATE Housing - series CH20M black, Side element, Width: 45 mm
-
Tuotteen tunnus:1104440000VPE:30 items
Modular housing, OMNIMATE Housing - series CH20M Transparent, Flip cover, Width: 45 mm
-
Tuotteen tunnus:1063280000VPE:78 items
PCB plug-in connector Orange release lever cod. 02
-
Tuotteen tunnus:1069770000VPE:108 items
PCB plug-in connector, Connection element, left, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 4, 90°, Solder pin length (l): 5.9 mm, tinned, black, Box
-
Tuotteen tunnus:1104410000VPE:6 items
Modular housing, OMNIMATE Housing - series CH20M black, Base element, Width: 45 mm
