Ominaisuudet

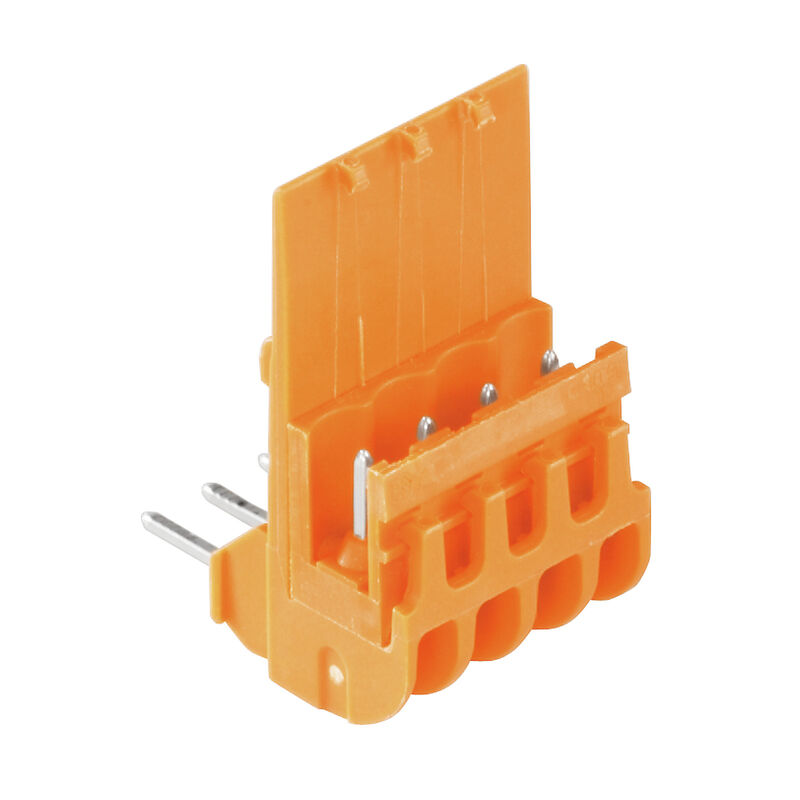

| Version | Plug-in adaptor (Terminal), 5 A, Rated voltage to adjoining terminal: 250 V, orange |
| Order No. | 1324100000 |
| Type | SL 5.08/4/WDK2.5 OR |
| GTIN (EAN) | 4032248144884 |
| Qty. | 75 items |
| Mounting dimension - height | 34,6 mm |
| Mounting dimension - width | 20,2 mm |
| Net weight | 2,76 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Number of poles | 4 |
| Rated voltage to adjoining terminal | 250 V |
| Rated DC voltage | 250 V |
| Rated current | 5 A |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61209) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1324100000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1324100000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[User Manual SL 5.08/WDK2.5](https://mdcop.weidmueller.com/mediadelivery/asset/900_229199) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
