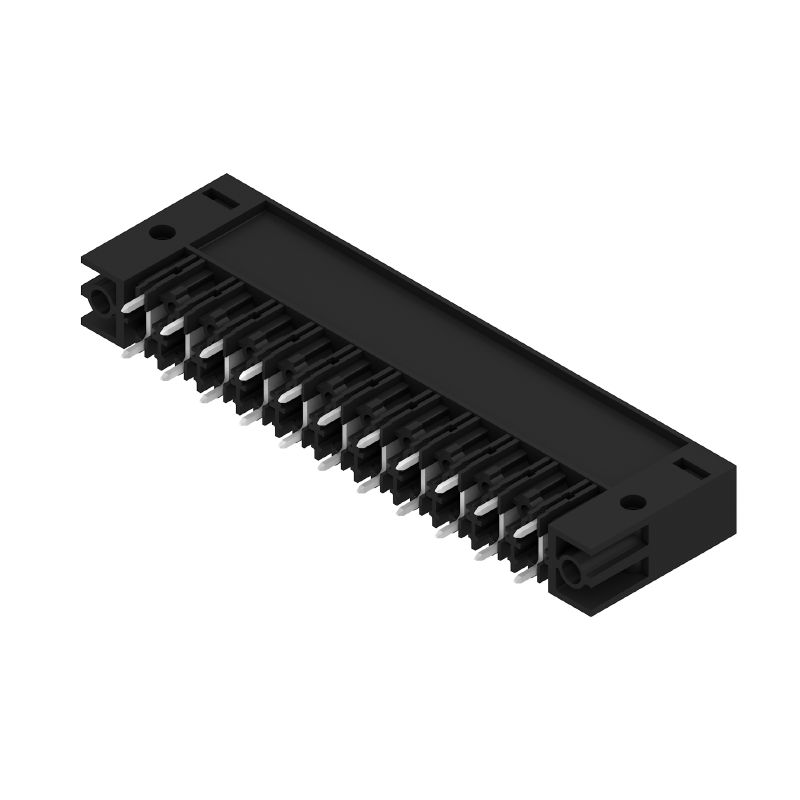

SV 7.62HP/11/180F 3.5SN BK BX — Product image

Lataa tietosivu EDA-yksittäisosa Samankaltaiset tuotteet

SV 7.62HP/11/180F 3.5SN BK BX

PCB plug-in connector, male header, Clip-on flange, THT solder connection, 7.62 mm, Number of poles: 11, 180°, Solder pin length (l): 3.5 mm, tinned, black, Box

Tuotteen tunnus 1930800000

Ominaisuudet

General ordering data

Version	PCB plug-in connector, male header, Clip-on flange, THT solder connection, 7.62 mm, Number of poles: 11, 180°, Solder pin length (l): 3.5 mm, tinned, black, Box
Order No.	1930800000
Type	SV 7.62HP/11/180F 3.5SN BK BX
GTIN (EAN)	4032248580774
Qty.	18 items
Product data	IEC: 1000 V / 57 A UL: 300 V / 40.5 A
Packaging	Box

Dimensions and weights

Depth	11,4 mm
Depth (inches)	0,449 inch
Height	31,8 mm
Height (inches)	1,252 inch
Height of lowest version	28,3 mm
Width	99,06 mm
Width (inches)	3,9 inch
Net weight	23,133 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System specifications

Product family	OMNIMATE Power - series BV/SV 7.62HP
Type of connection	Board connection
Mounting onto the PCB	THT solder connection
Pitch in mm (P)	7,62 mm
Pitch in inches (P)	0,3 "
Outgoing elbow	180°
Number of poles	11
Number of solder pins per pole	2
Solder pin length (l)	3,5 mm
Solder pin length tolerance	+0.1 / -0.3 mm
Solder pin dimensions	0.8 x 1.0 mm
Solder eyelet hole diameter (D)	1,4 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
L1 in mm	76,2 mm
L1 in inches	3 "
Number of rows	1
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 57 106	Touch-safe above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470	IP 20
Protection degree	IP20 when fully mounted
Volume resistance	2.00 mΩ
Can be coded	Yes
Plugging cycles	25
Tightening torque	Torque type: Screw flange Usage information: Thickness: nominal: 1,6 mm nominal: 3,2 mm Tightening torque: min.: 0,65 Nm max.: 0,85 Nm Recommended screw: Screw type: EJOT Delta PT 30x10 or similar Thickness: nominal: 4,8 mm Tightening torque: min.: 0,8 Nm max.: 1 Nm Recommended screw: Screw type: EJOT Delta PT 30x12 or similar

Material data

Insulating material	PA GF
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	II
Comparative Tracking Index (CTI)	≥ 500
UL 94 flammability rating	V-0
Contact material	Copper alloy
Contact surface	tinned
Layer structure of solder connection	1...3 µm Ni / 4...6 µm Sn matt
Layer structure of plug contact	1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.	−40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	−50 °C
Operating temperature, max.	130 °C
Temperature range, installation, min.	−25 °C
Temperature range, installation, max.	130 °C

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	57 A
Rated current, max. number of poles (Tu=20°C)	41 A
Rated current, min. number of poles (Tu=40°C)	41 A
Rated current, max. number of poles (Tu=40°C)	41 A
Rated voltage for surge voltage class / pollution degree II/2	1 000 V
Rated voltage for surge voltage class / pollution degree III/2	630 V
Rated voltage for surge voltage class / pollution degree III/3	630 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	6 kV
Short-time withstand current resistance	3 x 1s with 420 A
Clearance, min.	6,9 mm
Creepage distance, min.	9,6 mm

Rated data acc. to CSA

Institute (CSA)	CSA
Certificate No. (CSA)	200039-1121690
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group C / CSA)	300 V
Rated voltage (Use group D / CSA)	600 V
Rated current (Use group B / CSA)	35 A
Rated current (Use group C / CSA)	35 A
Rated current (Use group D / CSA)	5 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)	CURUS
Certificate No. (cURus)	E60693
Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group C / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	600 V
Rated voltage (Use group F / UL 1059)	744 V
Rated current (Use group B / UL 1059)	40,5 A
Rated current (Use group C / UL 1059)	40,5 A
Rated current (Use group D / UL 1059)	5 A
Rated current (Use group F / UL 1059)	40,5 A
Clearance distance, min.	6,9 mm
Creepage distance, min.	9,6 mm
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	338 mm
VPE width	130 mm
VPE height	33 mm

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Rated current related to rated cross-section & min. No. of poles.

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Diameter of solder eyelet D = 1.4+0.1 mm starting with 8-pole

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205393)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1930800000)
Product Change Notification	[PCN_2016_278_PL33_Aenderung_Flanschkontur_SV762_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49661) [PCN_2016_278_PL33_change_flange_contour_SV762_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49662)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132)

Classifications

ETIM 6.0	EC002637
ETIM 7.0	EC002637
ETIM 8.0	EC002637
ETIM 9.0	EC002637
ECLASS 9.0	27-44-04-02
ECLASS 9.1	27-44-04-02
ECLASS 10.0	27-44-04-02
ECLASS 11.0	27-46-02-01
ECLASS 12.0	27-46-02-01
ECLASS 13.0	27-46-02-01
ECLASS 14.0	27-46-02-01

Approvals

Approvals	![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
