BCL-SMT 3.81/02/90 1.5SN BK RL

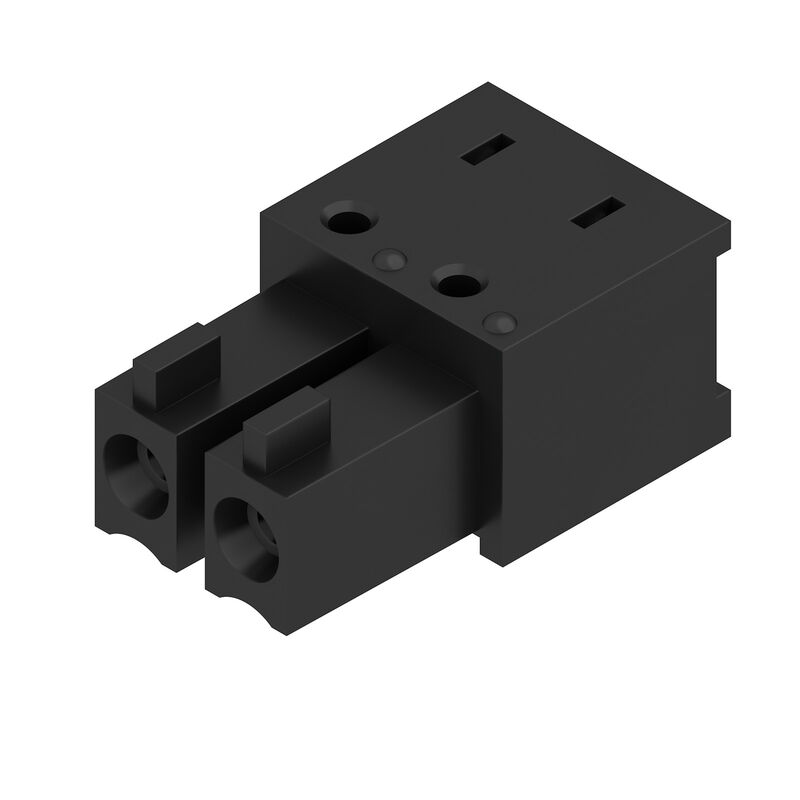

Product image
BCL-SMT 3.81/02/90 1.5SN BK RL
Product image
BCL-SMT 3.81/02/90 1.5SN BK RL
Dimensional drawing
BCL-SMT 3.81/02/90 1.5SN BK RL
Graph
BCL-SMT 3.81/02/90 1.5SN BK RL
Graph

BCL-SMT 3.81/02/90 1.5SN BK RL

Złącze wtykowe do druku, listwa z gniazdami, zamknięte z boku, Połączenie lutowane THT/THR, 3.81 mm, Liczba biegunów: 2, 90°, Długość kołka lutowniczego (l): 1.5 mm, cynowana, czarny, Tape

Item No. 1991660000
Download data sheet Engineering Support Product Downloads
İlgili ürünler 13
Approvals Ogólne dane zamówieniowe Dimensions and weights Zgodność produktu z wymogami środowiska naturalnego 시스템 사양 자재 데이터 Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Balení Ważna informacja Classifications

Approvals

ROHS
Conform

Ogólne dane zamówieniowe

Version
Złącze wtykowe do druku, listwa z gniazdami, zamknięte z boku, Połączenie lutowane THT/THR, 3.81 mm, Liczba biegunów: 2, 90°, Długość kołka lutowniczego (l): 1.5 mm, cynowana, czarny, Tape
Order No.
1991660000
Type
BCL-SMT 3.81/02/90 1.5SN BK RL
GTIN (EAN)
4050118376234
Qty.
390 adet
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 10 A
Packaging
Tape

Dimensions and weights

Net weight
1,02 g

Zgodność produktu z wymogami środowiska naturalnego

RoHS Compliance Status
Zgodne, bez wyłączenia
REACH SVHC
No SVHC above 0.1 wt%

시스템 사양

Product family
OMNIMATE Signal - series BC/SC 3.81
Type of connection
Kretskortanslutning
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
3,81 mm
Pitch in inches (P)
0,15 "
Outgoing elbow
90°
Number of poles
2
Number of solder pins per pole
2
Solder pin length (l)
1,5 mm
Solder pin length tolerance
0 / -0,02 mm
Solder pin dimensions
d = 0.8 mm
Solder pin dimensions = d tolerance
+0,05 / -0,05 mm
Solder eyelet hole diameter (D)
1,2 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
1,9 mm
Template aperture diameter
1,6 mm
L1 in mm
3,81 mm
L1 in inches
0,15 "
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from back-of-hand touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
9,5 N
Pulling force/pole, max.
6 N

자재 데이터

Insulating material
LCP GF
Colour
czarny
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
15,4 A
Rated current, min. number of poles (Tu=40°C)
17,5 A
Rated current, max. number of poles (Tu=40°C)
13,7 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 76 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated current (Use group B / CSA)
11 A
Rated current (Use group C / CSA)
11 A

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A

Balení

ESD Level packaging
statisch ableitfähig
Packaging
Tape
VPE length
336 mm
VPE width
333 mm
VPE height
35 mm
Tape depth (T2)
9 mm
Tape width (W)
24 mm
Tape pocket depth (K0)
8,6 mm
Tape pocket height (A0)
14,8 mm
Tape pocket width (B0)
16,4 mm
Tape pocket separation (P1)
20 mm
Tape hole separation (E)
1,75 mm
Tape pocket separation (F)
11,5 mm
Tape reel diameter ∅ (A)
330 mm
Surface resistance
Rs = 109 - 1012 Ω

Ważna informacja

IPC conformity
Zgodność: produkty są projektowane, wytwarzane oraz dostarczane zgodnie z uznanymi normami międzynarodowymi, właściwości produktów są zgodne z gwarantowanymi w karcie katalogowej lub ich jakość wykonania jest zgodna z wymogami klasy 2 wg IPC-A-610. Na życzenie mogą być ocenione dalsze wymagania dotyczące produktów.
Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
