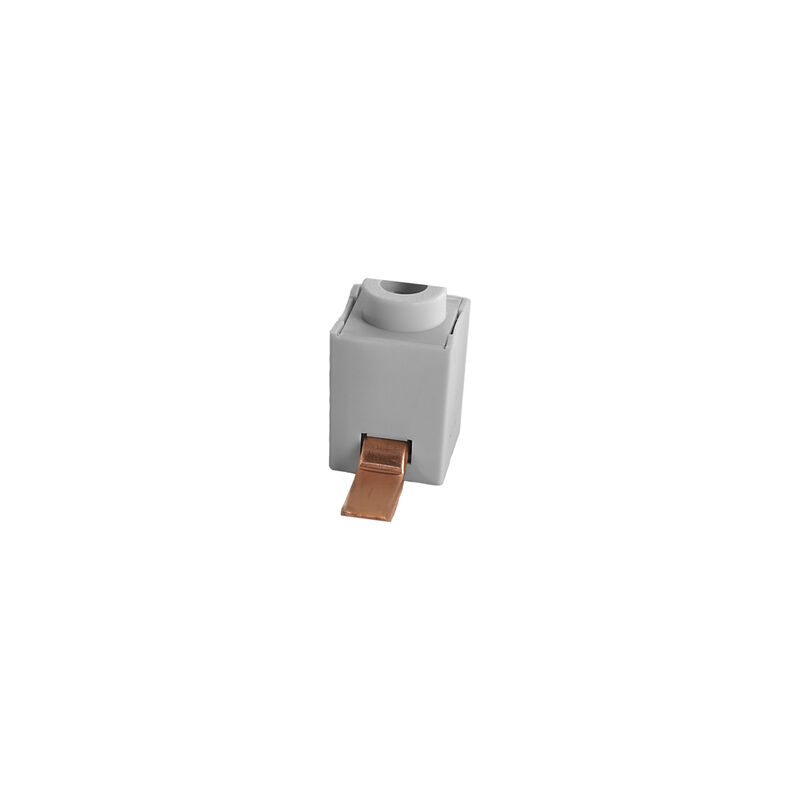

FIT 50 SN/F
Illustrazione del prodotto

FIT 50 SN/F

Tento produkt již není k dispozici.

Auxiliary connection (terminal), 50 mm²

ID výrobku 2659100000
Stáhnout datový list Technická podpora Dokumenty ke stažení
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Datos del material Allgemeines Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Auxiliary connection (terminal), 50 mm²
Číslo objednávky
2659100000
Type
FIT 50 SN/F
GTIN (EAN)
4050118671438
Qty.
3 Pièce
배송 상태
Discontinued
Last order date
/Date(1724968800000)/

Dimensions and weights

Depth
27 mm
Depth (inches)
1,063 inch
Height
39,7 mm
Height (inches)
1,563 inch
Width
17,8 mm
Width (inches)
0,701 inch
Masa netto
30 g

Temperatures

Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
08c53393-8863-492c-addc-d040b46da0d3

Datos del material

Colour
gris

Allgemeines

Polzahl
1

Rating data

Bemessungsquerschnitt
50 mm²
Courant nominal
150 A

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-08
ECLASS 15.0
27-25-03-08
