Ominaisuudet

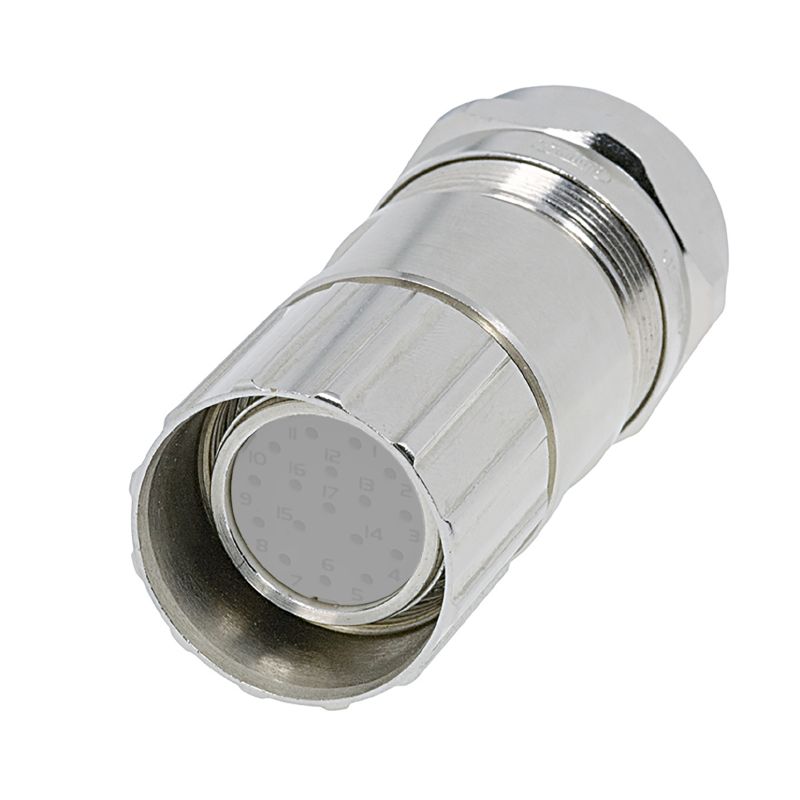

| Version | Sensor/Actuator plug-in connector, Empty enclosure |
| Order No. | 2009390000 |
| Type | SAI-M23-GS-3/7 |
| GTIN (EAN) | 4050118395426 |
| Qty. | 1 items |
| Net weight | 50 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Cable diameter, max. | 7 mm |
| Cable diameter, min. | 3 mm |
| Housing main material | Copper-zinc alloy |
| Plugging cycles | > 1000 |
| Pollution severity | 3 |
| Protection degree |
IP67
IP69K |
| Shield connection | Yes |
| Temperature range of housing | -40…+125 °C |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC003556 |
| ETIM 8.0 | EC003556 |
| ETIM 9.0 | EC003556 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-24 |
| ECLASS 11.0 | 27-44-02-24 |
| ECLASS 12.0 | 27-44-02-24 |
| ECLASS 13.0 | 27-44-02-24 |
| ECLASS 14.0 | 27-44-02-24 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E344862 |
