SAID-M8B-4-THR
Similar to illustration
SAID-M8B-4-THR

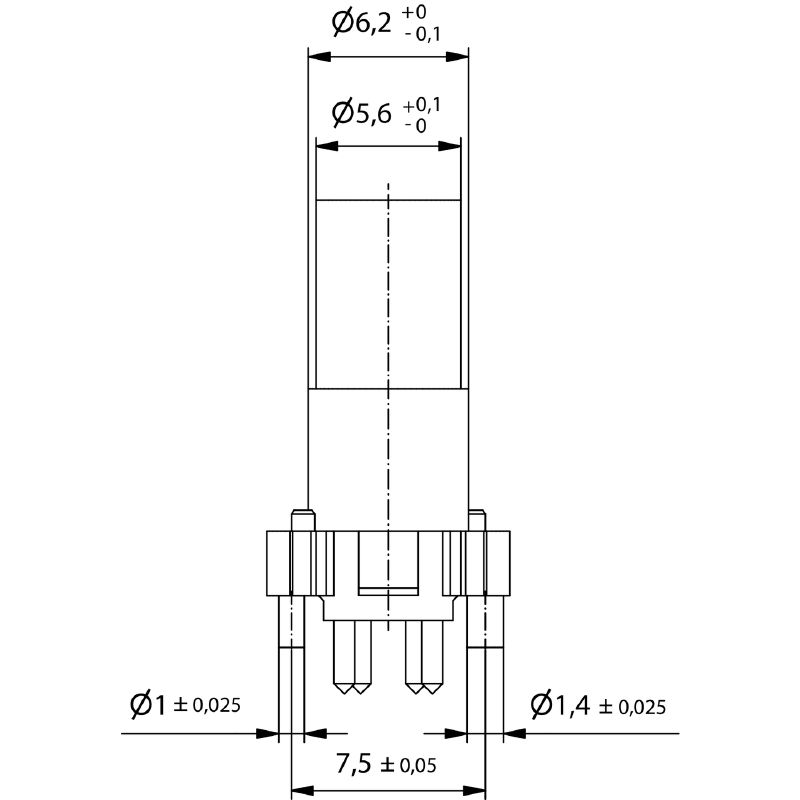

Dimensioned drawing
SAID-M8B-4-THR
PCB design
SAID-M8B-4-THR
Pole scheme
Socket

SAID-M8B-4-THR

Bu ürün yakında mevcut olmayacak.

Son Sipariş Tarihi: /Date(1793401200000)/

Built-in plugs, M8, Mounting thread: , Number of poles: 4, Strand / cable length:

Ürün No. 2423880000
Veri sayfasını indir Mühendislik desteği
İlgili ürünler 15
Approvals General ordering data Dimensions and weights 환경 제품 규정 준수 Technické údaje o zásuvném konektoru DPS General Info Material data System parameters Классификации

Approvals

ROHS
Conform

General ordering data

Verze
Built-in plugs, M8, Mounting thread: , Number of poles: 4, Strand / cable length:
Číslo objednávky
2423880000
Type
SAID-M8B-4-THR
GTIN (EAN)
4050118430714
Qty.
25 adet
Stav objednávky
This article will no longer be available in the future.
Poslední datum objednávky
/Date(1793401200000)/

Dimensions and weights

Net weight
2,48 g

환경 제품 규정 준수

Stav souladu se směrnicí RoHS
준수, 예외 존재
Výjimka ze směrnice RoHS (je-li použitelné/známo)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technické údaje o zásuvném konektoru DPS

Coding
M8 = none
Housings
M8 Buchse
Number of poles
4
Shield connection
No
Nominal voltage
30 V
Rated voltage
60 V (3-biegunowy) / 30 V (4-,5- oraz 8-biegunowy)
Jmenovitý proud
4 A
Rated current
4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range
-25…95 °C
Protection degree
IP67
Povrch kontaktu
Au (Gold)
Hlavní materiál krytu
LCP
Připojovací závit
M8
Utahovací moment
M8: 0.5 Nm
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Numero di poli
4
UL 94 flammability rating
V-0
Housing main material
LCP
Connection thread
M8
Contact material
Cu-alloy
Contact surface
Au (Gold)
Protection degree
IP67
Plugging cycles
≥ 100

Material data

UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
Au (Gold)

System parameters

Number of poles
4
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Классификации

ETIM 8.0
EC003557
ETIM 9.0
EC003557
ETIM 10.0
EC003557
ECLASS 14.0
27-44-02-23
ECLASS 15.0
27-44-02-23
